GENERAL ENGINE MECHANICAL 6A – 27

OIL PUMP

DISASSEMBLY

1. Vacuum Pump Oil Hose

• Remove the oil hose

from oil pan.

2. Stifner & Space Rubber

• Remove the stiffener from of the oil pan left & right

side.

• Take out space rubber.

3. Oil Pan Assembly

6A-27-2.tif

6A-27-1.tif

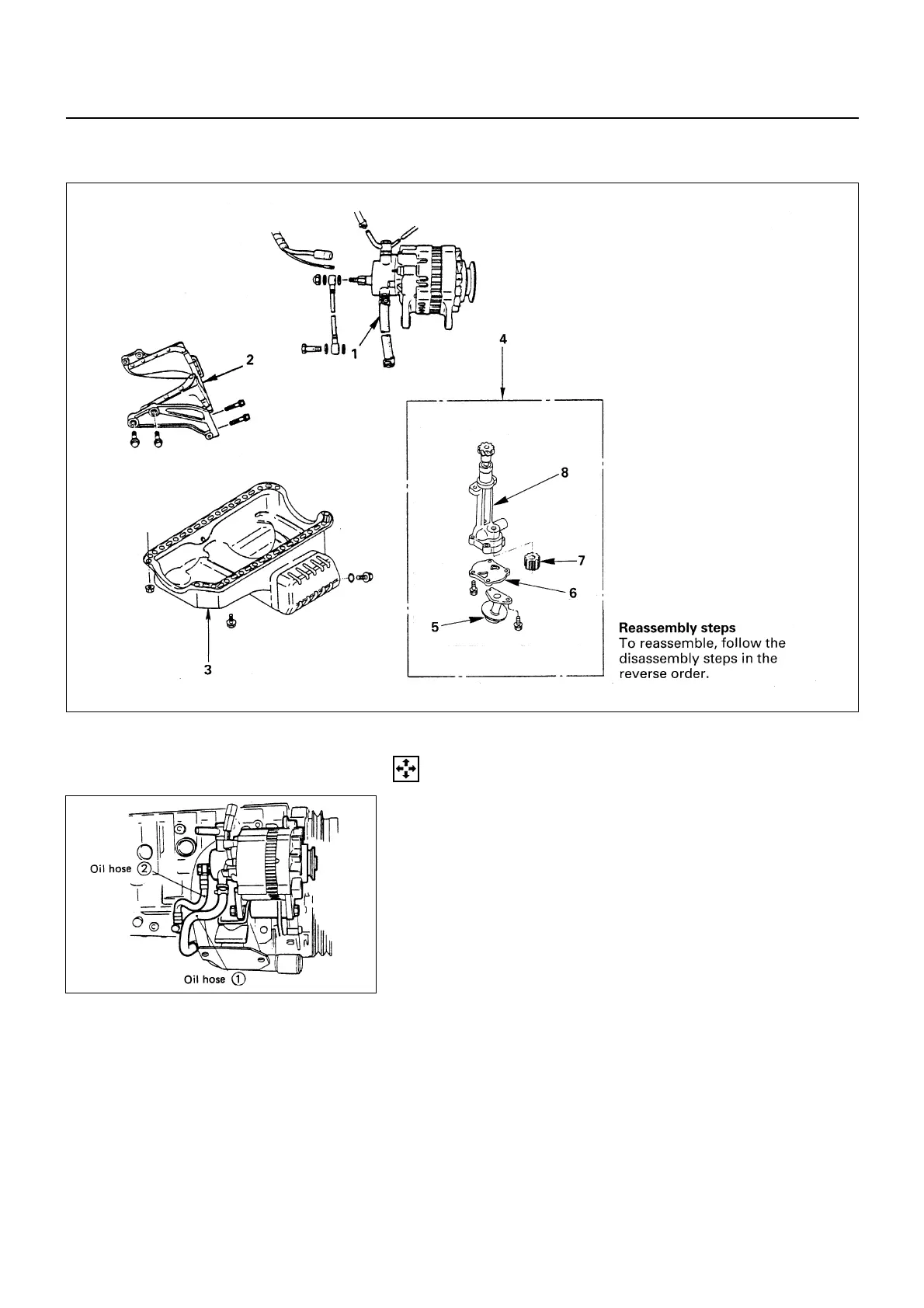

Disassembly steps

1. Vacuum pump oil hose

2. Stiffener and space rubber

3. Oil pan Assembly

4. Oil pump Assembly

5. Strainer

6. Pump cover

7. Driven gear

8. Oil pump body
