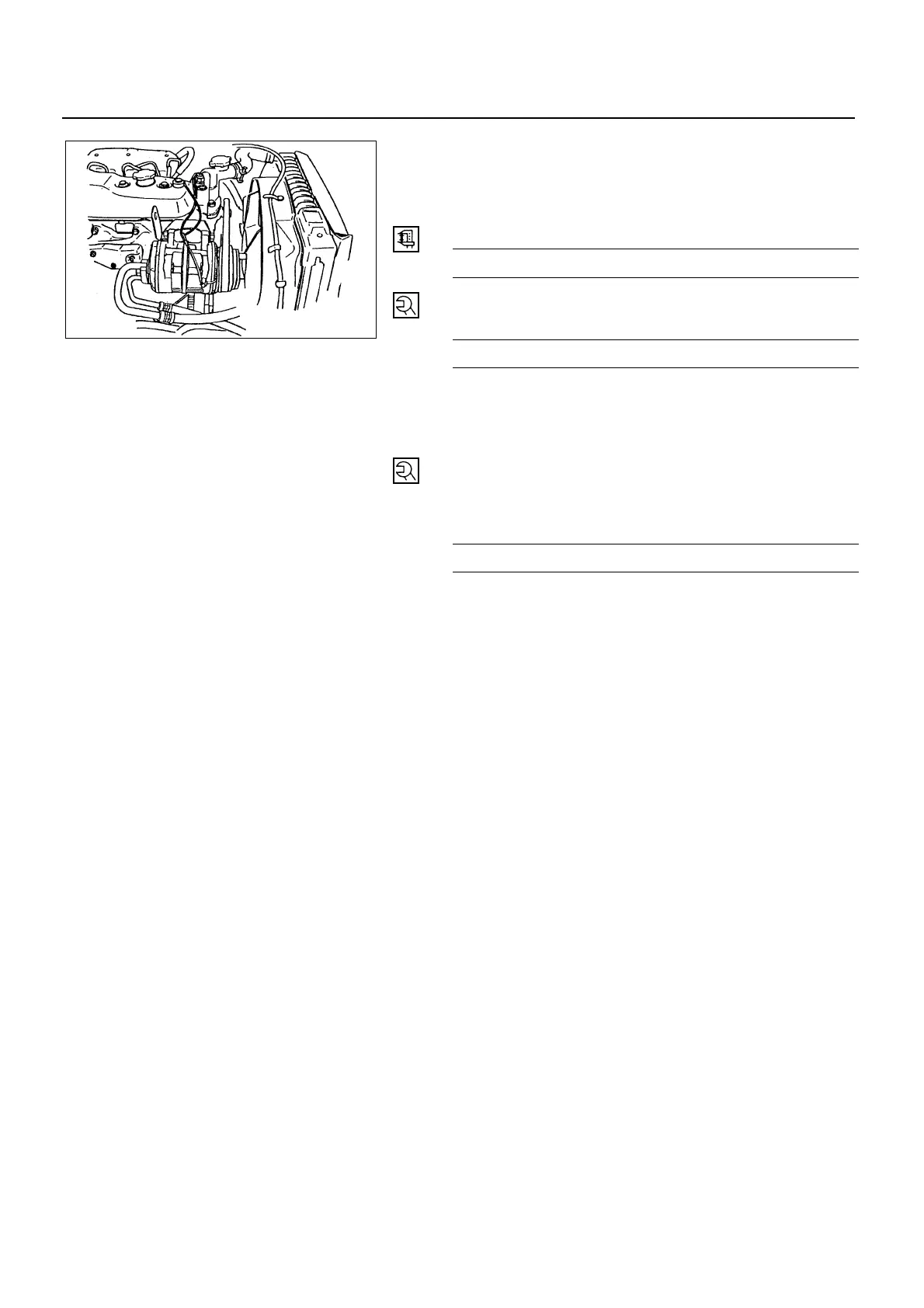

6A1 – 36 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE
3. Power Steering Pump Drive Belt (P/S pump model)
• Install PS pump drive belt and adjust belt tension.
• Depress the drive belt mid-portion with a 98N
(10kg/22lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 12 (0.47)
• Tighten the idler lock nut to the specified torque.
N∙m (kg∙m/lb∙ft)
27 (2.8/20)
2. Fan Shroud
• Install the fan shroud and reservoir tank hose.
1. Cooling Fan Assembly
• Mount fan pulley, distance piece, and cooling fan asm
(in this order) on the water pump, and tighten to the
specified torque.
N∙m (kg∙m/lb∙in)
8 (0.8/69)
• Connect battery ground cable.
• Pour coolant.
• Start the engine and check coolant leakage.
