6A1 – 52 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

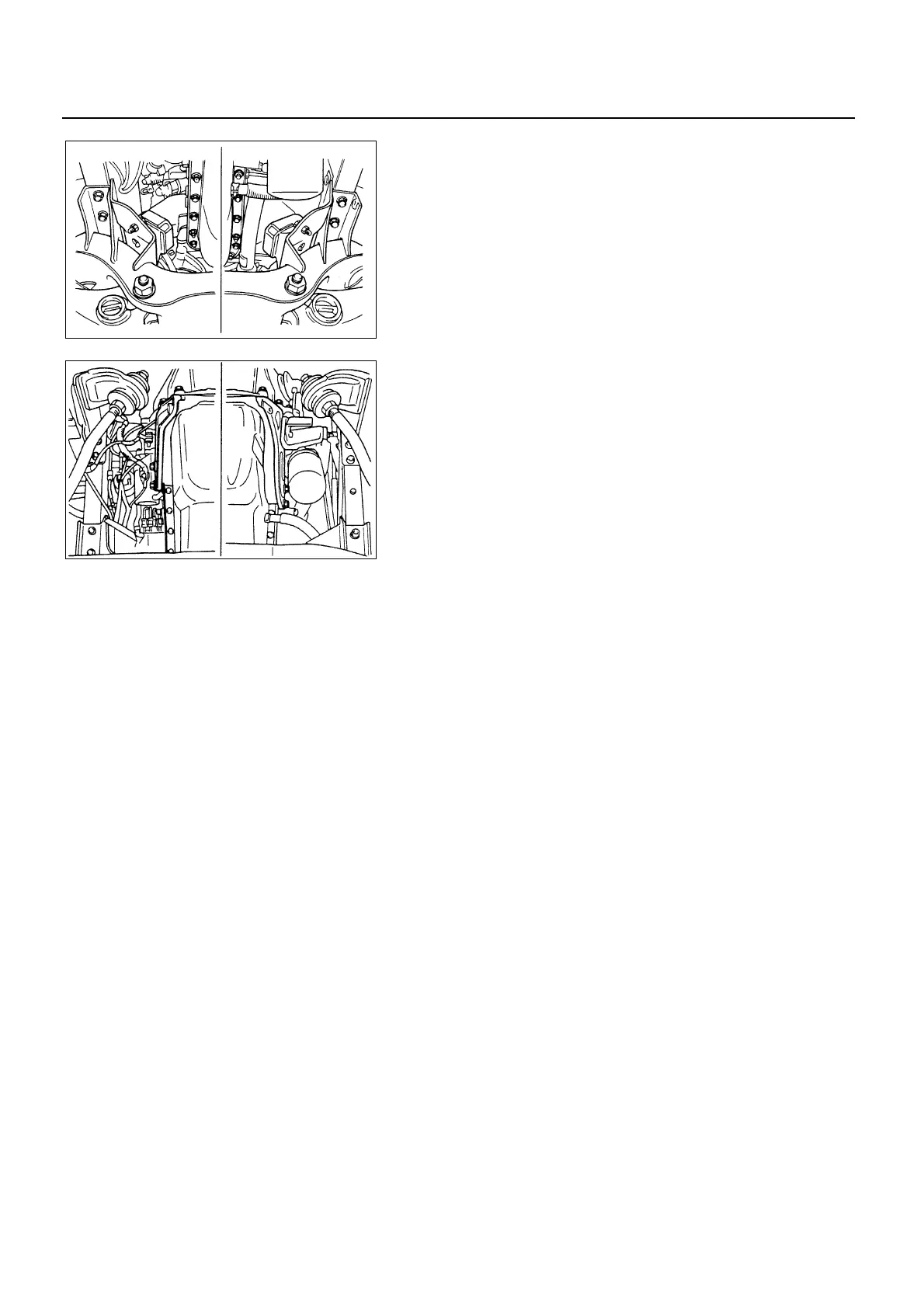

2. Engine Mount Bolts

• Remove the engine mount bolts right & left side.

3. Stiffener & Space Rubber

• Remove the exhaust pipe bracket.

• Remove the stiffener from of the oil pan left & right

side.

• Take out space rubber.

4. Oil Pan Assembly

• Raise the engine about 50mm.

• Remove the oil pan from cylinder block.

5. Oil Pump Assembly

• Remove the oil pump from cylinder block.
