6A1 – 66 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

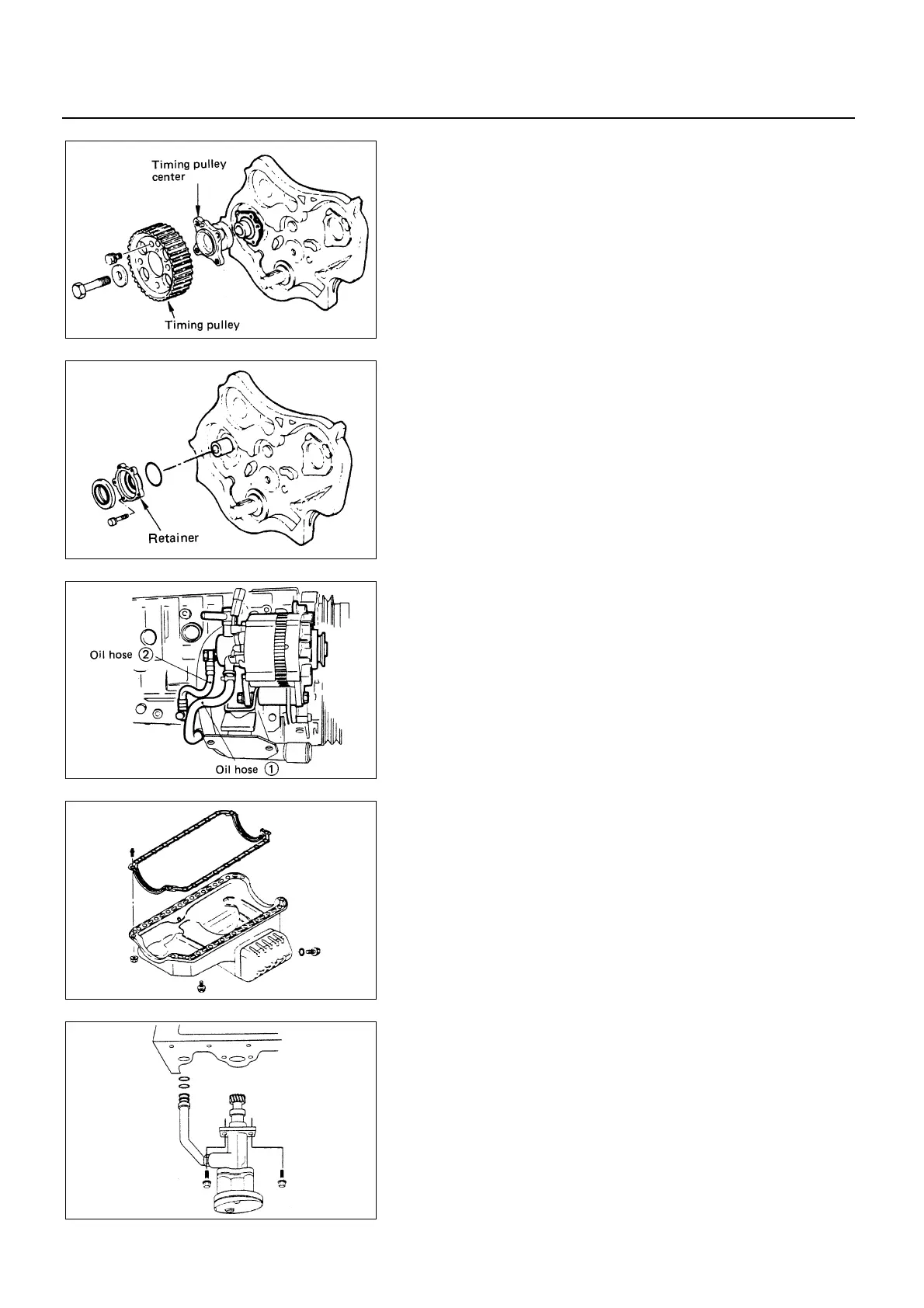

• Remove the center bolt and remove the timing pulley

with pulley center.

• Remove the oil seal retainer.

5. Oil Pan Assembly

• Disconnect vacuum pump oil hose !

from oil pan.

• Remove the stiffener and space rubber from oil pan

both side.

• Remove the oil pan bolts and remove oil pan from

cylinder body.

6. Oil Pump Assembly

• Remove the oil pump assembly from cylinder body.

6A1-66-1.tif

6A1-66-2.tif

6A1-66-3.tif

6A1-66-4.tif

6A1-66-5.tif
