6C - 32 ENGINE FUEL

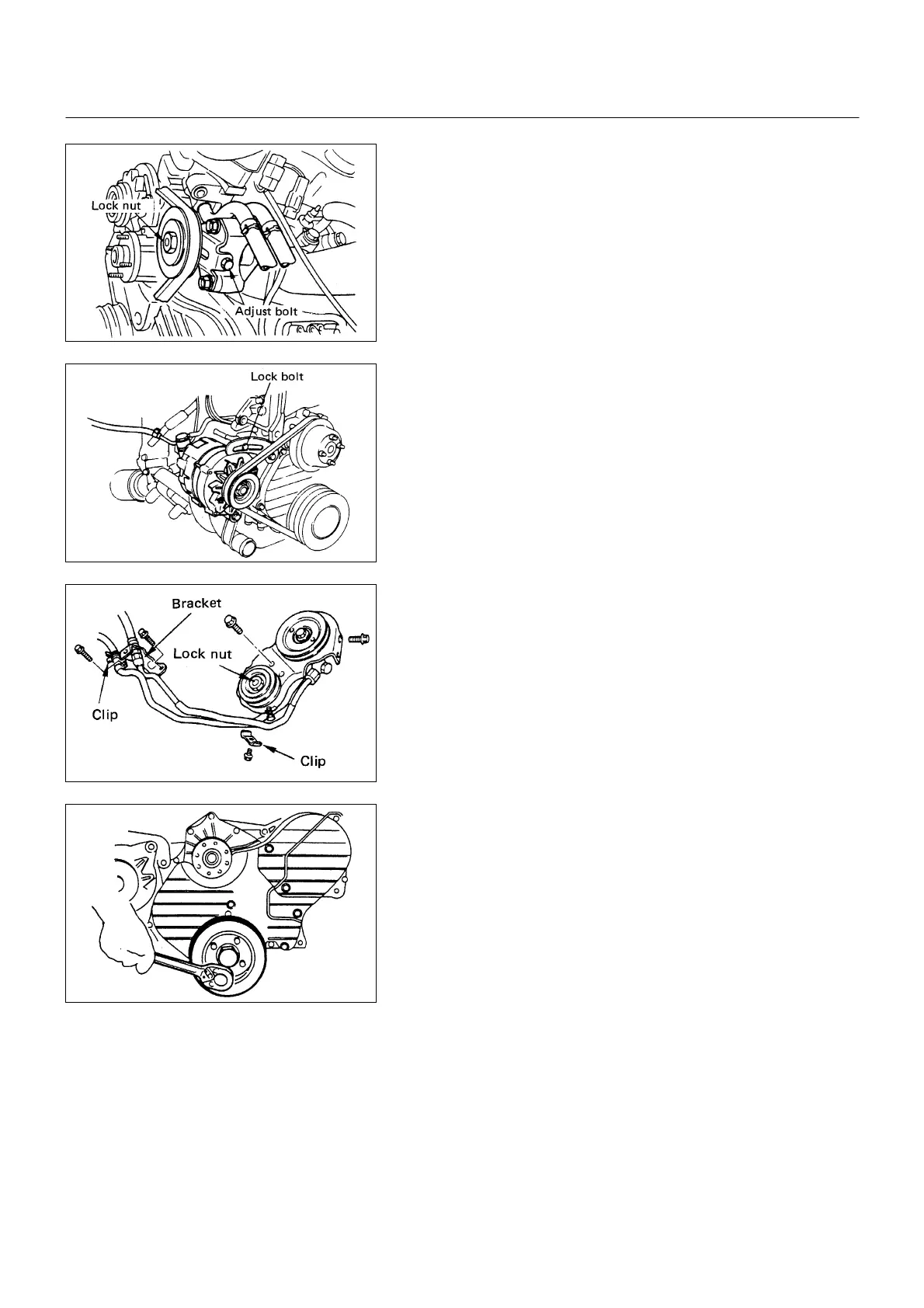

4. A/C Compressor Drive Belt (A/C Model)
• Loosen A/C compressor idler pulley lock nut, adjust
bolt, and remove the drive belt.
5. AC Generator Drive Belt
• Loosen AC generator mounting bolt (under side) and
adjust plate lock bolt, and remove the drive belt.
6. Power Steering Pump & Bracket Assembly (P/S Model)
• Loosen power steering oil pipe bracket and clip.
• Remove P/S pump bracket assembly and hang the
P/S pump bracket assembly.
7. Crankshaft Dumper Pulley
6C-31-1.tif
6C-31-2.tif
6C-31-3.tif
6C-31-4.tif
To Next Page
