ENGINE FUEL 6C - 39
• Install the Power Steering pump & bracket assembly.
10M bolts N∙m (Kg∙m/lb ft)
40 (4.1/30)
8M bolts N∙m (Kg∙m/lb ft)
19 (1.9/14)
Lock nut N∙m (Kg∙m/lb ft)
27 (2.8/20)
5. AC Generator Drive Belt
• Install AC generator drive belt and adjust belt tension.
• Depress the drive belt mid-portion with a 98N (10 kg/
22 lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Install fixing bolt and tighten bolts to the specified
torque.
Generator fixing Bolt N∙m (Kg∙m/lb ft)
40 (4.1/30)
Adjust Plate Fixing Bolt N∙m (Kg∙m/lb ft)
19 (1.9/14)
4. A/C Compressor Drive Belt (A/C Model)
• Install A/C compressor drive belt and adjust belt
tension.
• Depress the drive belt mid-portion with a 98N (10
kg/22lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Tighten the idler lock nut to the specified torque.
N∙m (Kg∙m/lb ft)
27 (2.8/20)

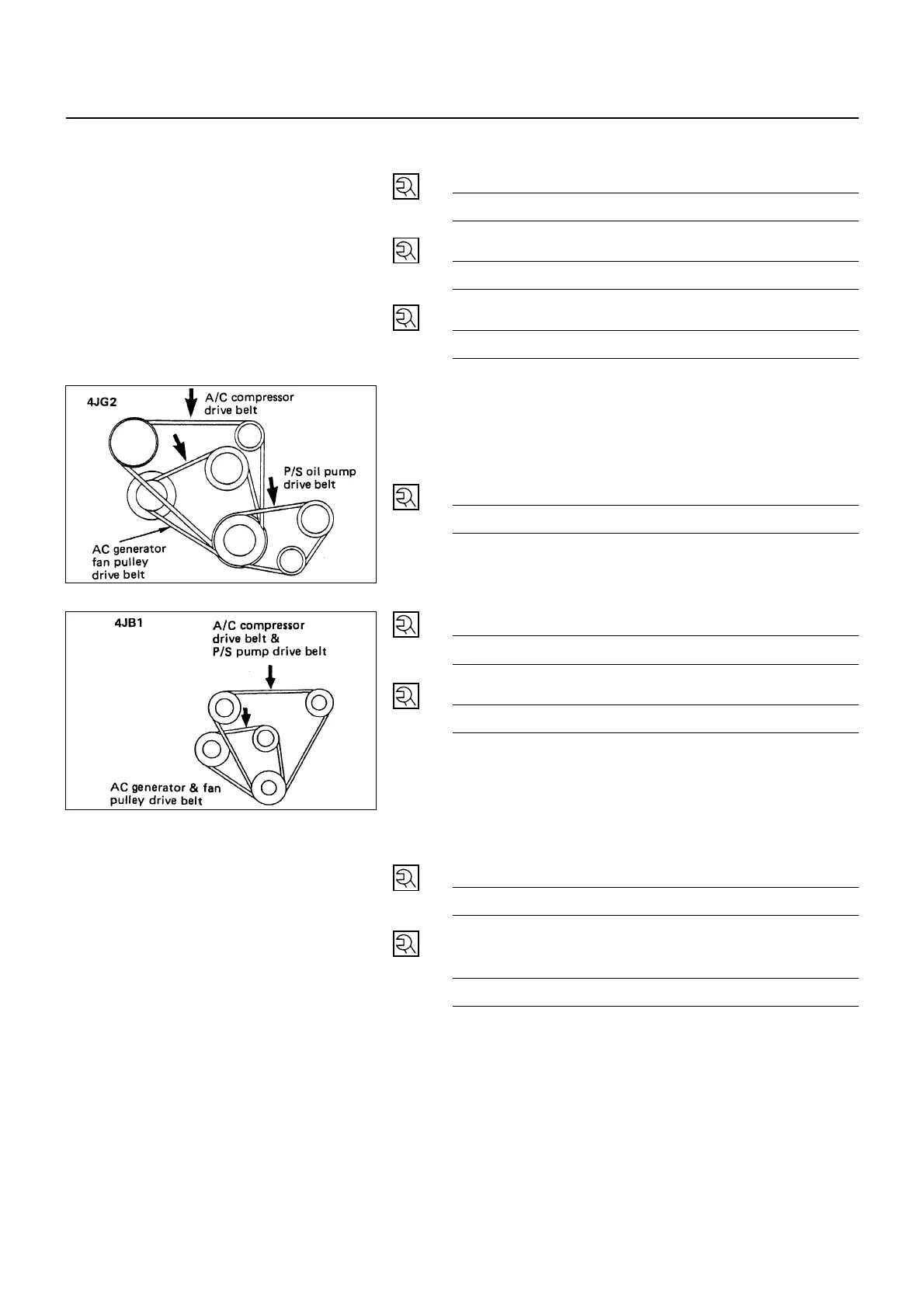

6C-38-1.tif
6C-38-2.tif
