ENGINE FUEL 6C - 47

6C-46-3.tif

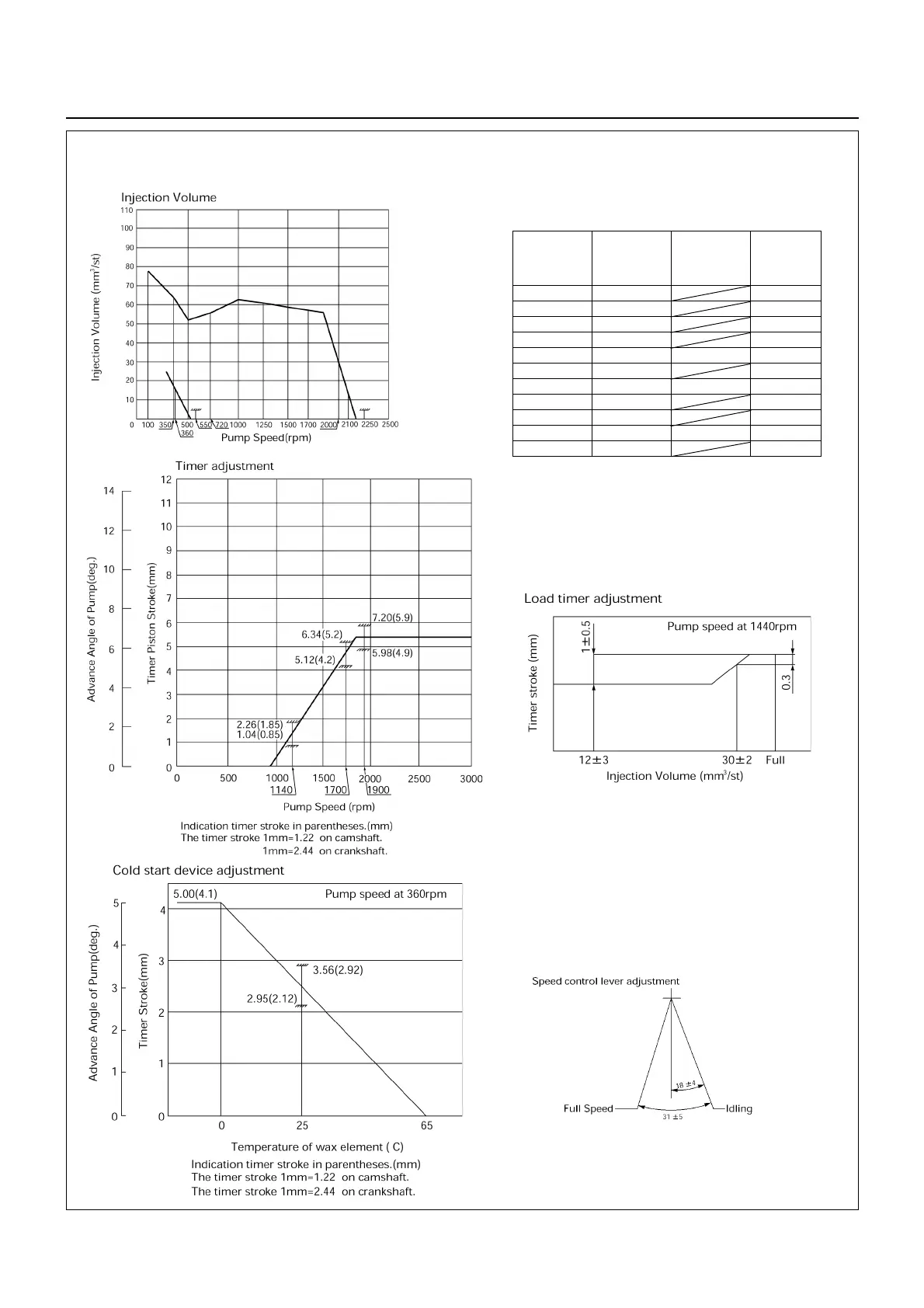

Adjustment specification of injection

volume

Pump

rotation

rpm

Average

injection

quantity

/ST

Uneven

amplitude

/ST

Remarks

100 78±12

350 64±6.0

500 52±3.0

720 55.9±3.4

1000 62.6±1.0 4.0

1250 60.9±3.5

1700 574±3.5 4.0

2100 13±5.0

2250 Below 5.0

360 15.9±3.0 2.5

550 Below 3.0

Engine ; 4JG2 (For ’91/542B) (Belt drive)

Injection pump assembly No. ; 897138-8422 (196000-1042)

F06LV005.tif

F06LV004.tif

F06LV007.tif

F06LV006.tif

F06LV008.tif
