CHARGING SYSTEM 6D3 – 7
• Install the suction pipe clip bolt and tighten bolt to the
specified torque.
Pipe Clip Bolt torque N∙m (kg∙m/lb∙in)
10 (1.0/87)
• Install the pressure pipe and suction pipe clip bolt,
then tighten bolt to the specified torque.
Pipe Clip Bolt Torque N∙m (kg∙m/lb∙in)
10 (1.0/87)

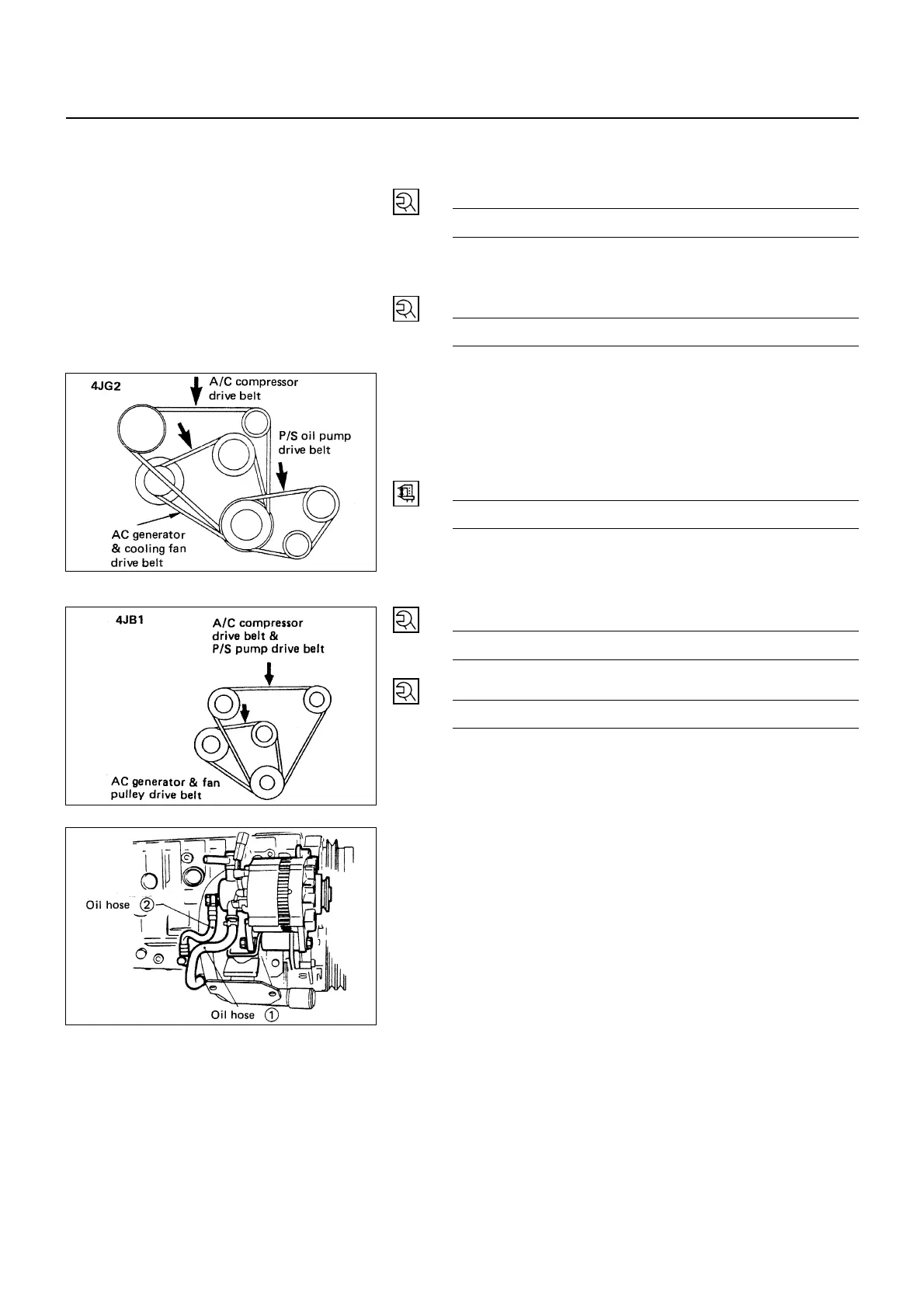

6. AC Generator Drive Belt
• Install the AC Generator drive belt and adjust belt
tension.
• Depress the drive belt mid-portion with a 98N
(10kg/22lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Install the fixing bolt and tighten bolt to the specified
torque.
Generator Fixing Bolt Torque N∙m (kg∙m/lb∙ft)
40 (4.1/30)
Adjust Plate Fixing Bolt Torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)
5. Oil Hose
• Install the oil hose
!
to vacuum pump.
• Install the oil hose
"
to oil pan.
4. Vacuum Hose (EXH. Brake Model)
• Install the vacuum hose to vacuum tank and exhaust
actuator.
3. Harness Connector (A/C Model)
• Connect the "L", "S", "IG" terminal and "B" terminal
connectors.
6D3-7-1.tif
6D3-7-2.tif
6D3-7-3.tif
To Next Page
