ITC VA-6000RM User Manual

Digital Network Public Address & Voice Alarm System
- 89 -

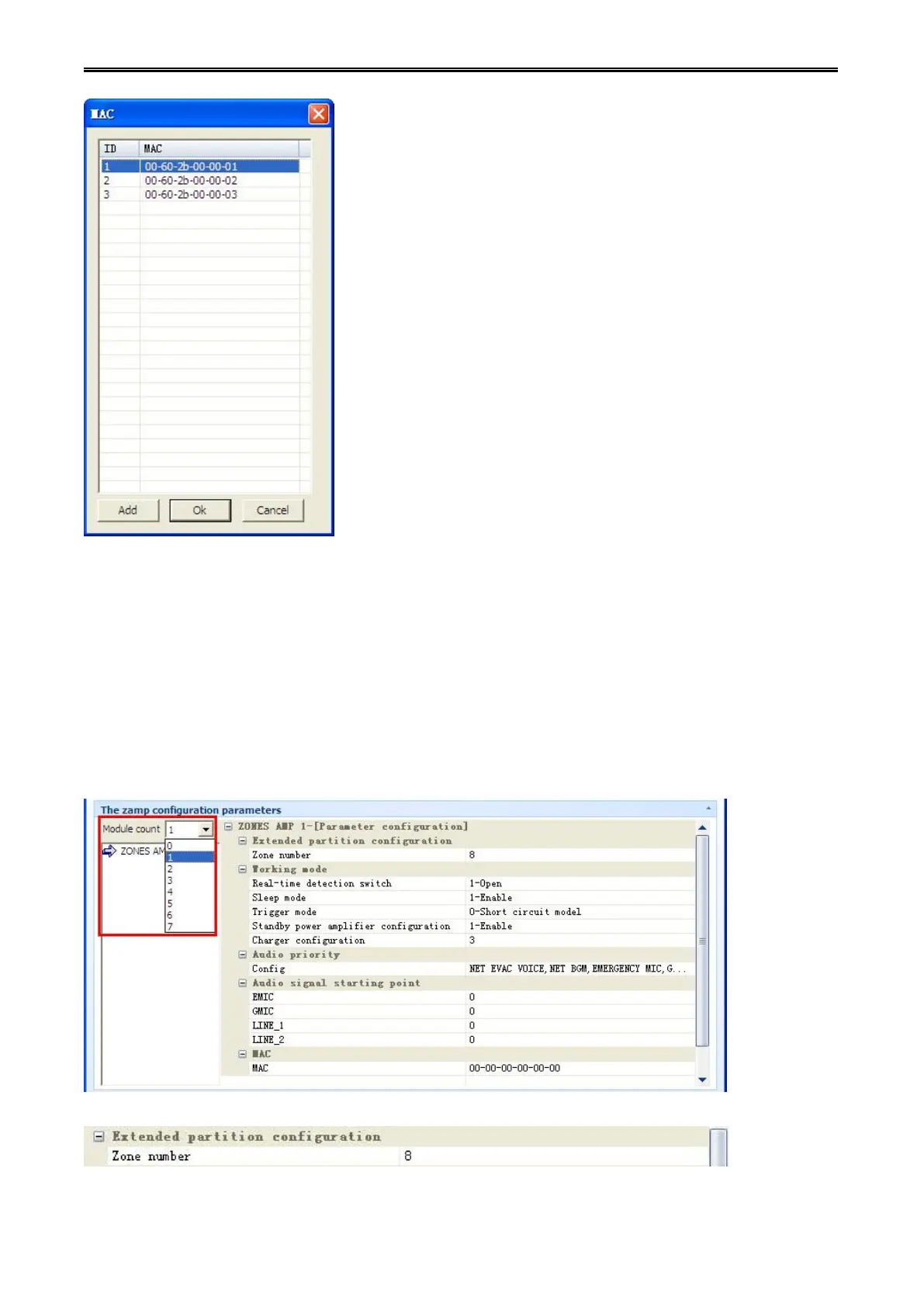

Step 5: Zone amplifier parameters configuration:
Click "zone amplifier parameters configuration" label, it will pop-up "zone amplifier parameters
configuration" list box.
1) Number of zone amplifier configuration:
Number Configuration: Click the "number of Configuration" drop-down list box in the left of the "zone
amplifier parameters configuration" screen, click to select the numbers inside of the list box, you can
configure the quantity of zone amplifier, the system allows you to configure the maximum number is:
seven.
2) Sub-zones number:
Each zone amplifier can be configured with up to eight extended zone, only the configured sub-zones will
