Inspection and Installation
c. Rotate the knob to select On or Off, select On and press [Enter] to
confirm.
d. Press [Esc]key to exit.
To ensure the stability of the system, use armored twisted-pair cables
between the remote sense terminals and the equipment under test.
2.6 Connect the Communication Interface
The IT-M series power supply has no standard-equipped communication
interfaces. User can purchase communication cards separately. User can
choose one of RS-232, USB, GPIB, RS-485, LAN, CAN to communicate with
the computer. For details, see1.8 Models and Options.
The reserved communication card installation slot is on the rear panel of the
instrument. User can install it directly after purchasing the communication card.
The instrument must be power off when install or remove the communication
card interface.
The installing steps for the purchased communication card are as follows:

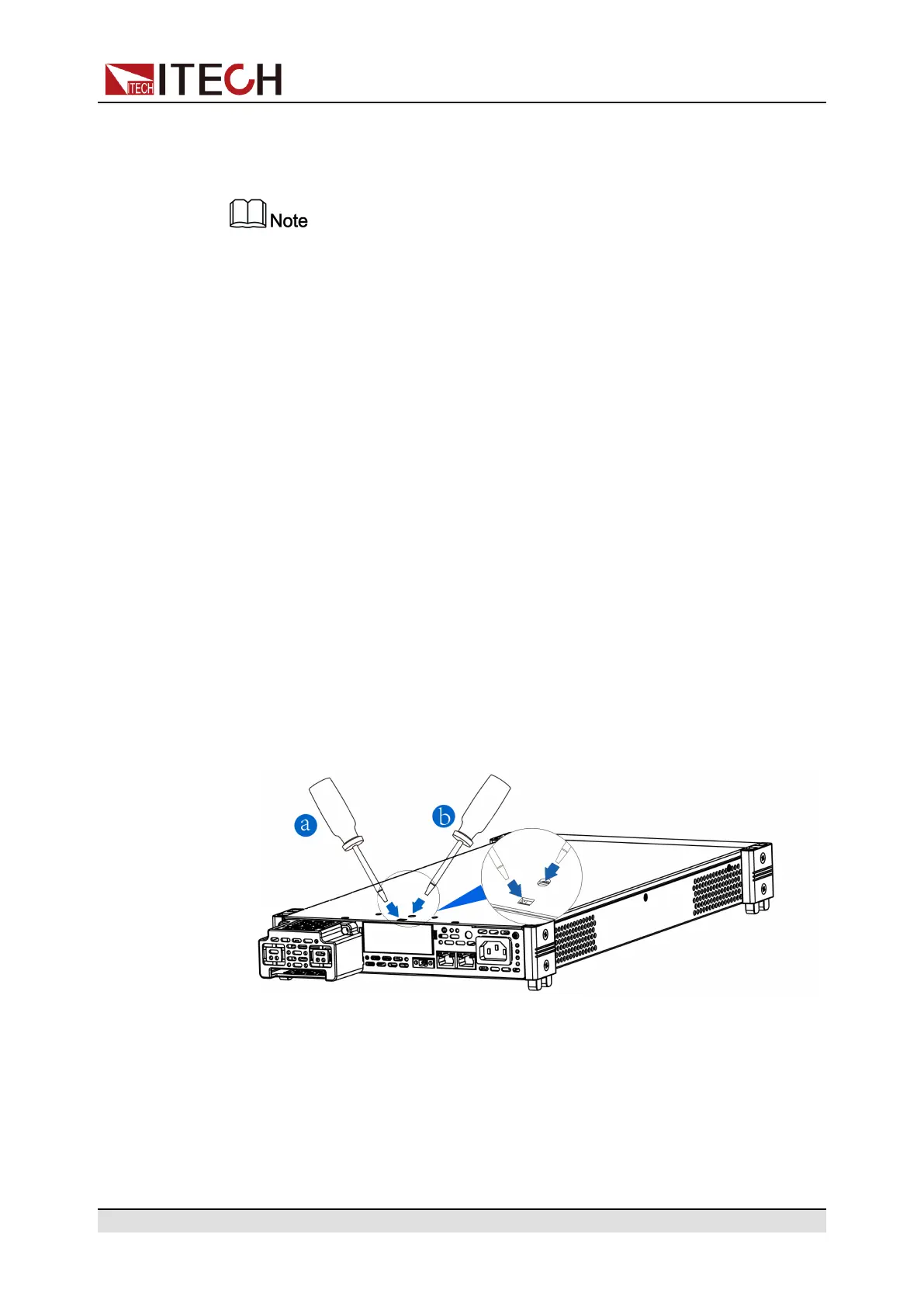

1. Remove the plug of the rear panel interface.
a. Use a small flat screwdriver to press the clip at the upper cover opening.
b. At the same time, use another small flat screwdriver to stir the slots one
by one from another opening of the upper cover, and push the plastic
plug out.
2. Install the purchased communication card. Taking the LAN+USB interface
card as an example, push the card into the slot and secure with the screws
Copyright © Itech Electronic Co., Ltd.
23
