Programming the Input

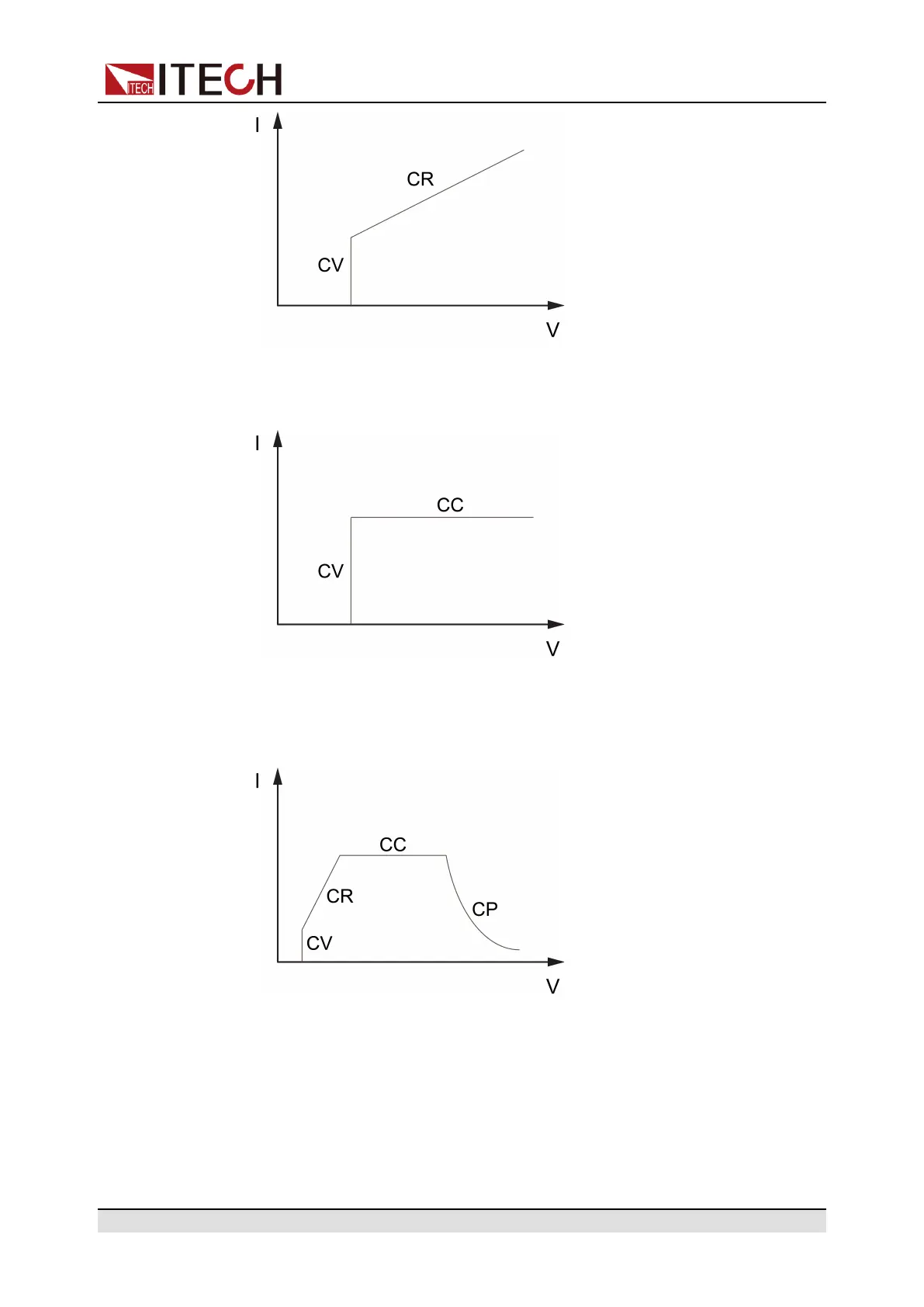

• The CV+CC mode can be applied to the load simulation battery and test the
charging station or the car charger. When the CV is working, the maximum
loading current is limited.
• Under this mode, the load can automatically switch among CV, CR, CC and
CP modes. It is suitable for lithium ion battery charger testing to get a
complete V-I charging curve. Moreover, the auto mode can avoid damaging
the UUT when the protection circuit is damaged.
4.4 Battery simulation mode
This series load comes with a battery simulation mode, which is applicable to
discharge function test for the charger. The user can directly select this mode in
the configuration menu.
Copyright © Itech Electronic Co., Ltd.
46
