Quick Reference
No. Name Description
4 Vacuum
fluorescent
display (VFD)
Displays all instrument functions. The information
changes based on selected function.
5 Function keys
group
Refer to 1.3 Keyboard Introduction for the detailed
description about the function keys.
6 Push-on knob
• Rotate the knob to adjust the setting values or
scroll pages to view menu items. Rotate the
knob clockwise to increase the set value and
anticlockwise to decrease the set value.
• Pushing the knob acts like pressing [Enter] key
to confirm an operation.
7 Left, and right
arrow keys
• Moves the cursor below the setting value or
scrolls pages to view menu items.
• Save/Recall the present settings.

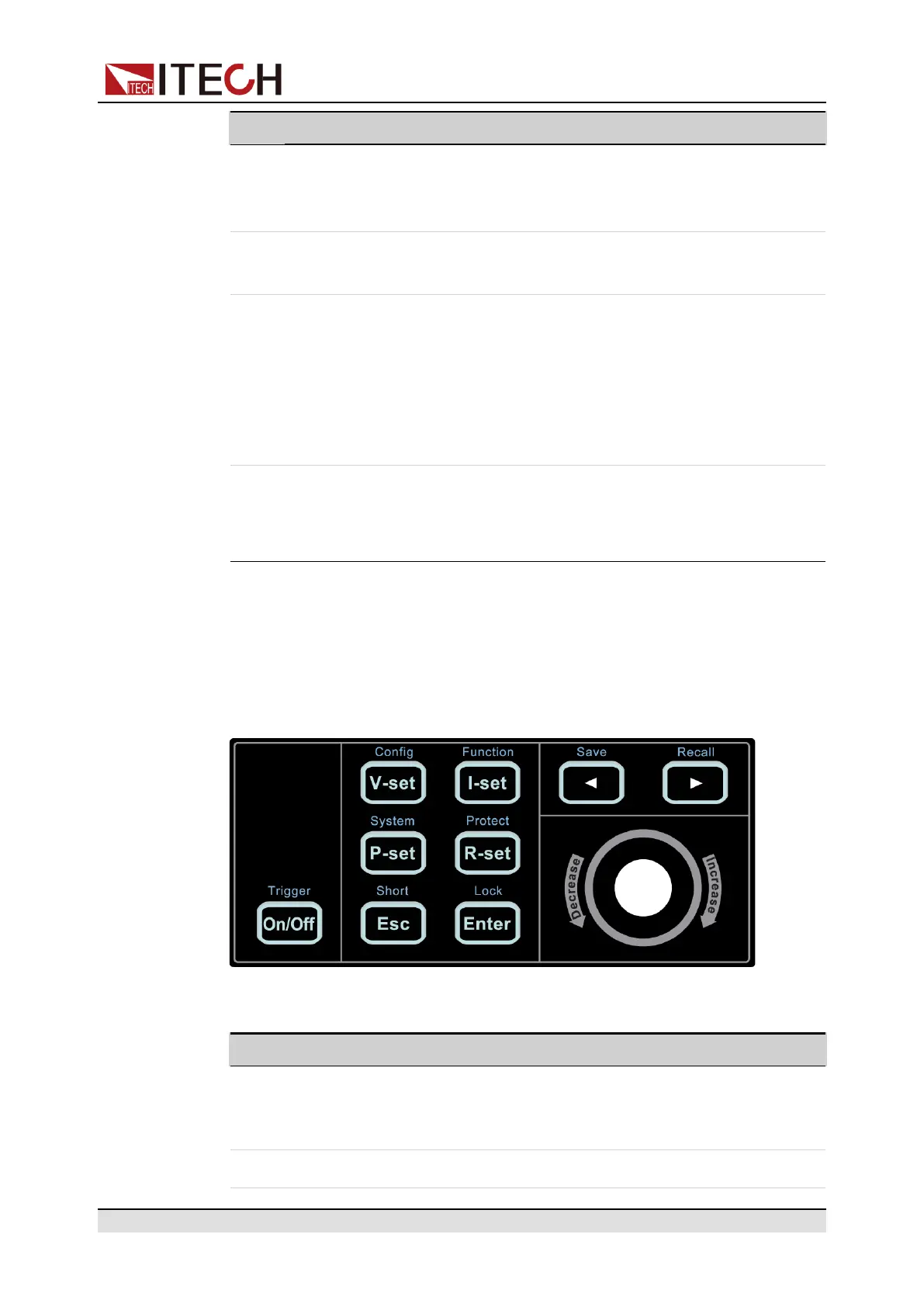

1.3 Keyboard Introduction
The keyboard introduction of this series power supplies is shown as follows.
Keys Description
[V-set] Set the voltage value
when the instrument in single mode, pressing the key also
can switch to CV mode.
[I-set] Set the current value
Copyright © Itech Electronic Co., Ltd.
3
To Next Page
