ITech IT6090C-500-450

Quick Start
2.3 Rear Panel Introduction
The rear panel of the 3U model of the IT6000C series Bi-directional Program-
mable DC Power Supply (after removing the protective cover) is shown below.

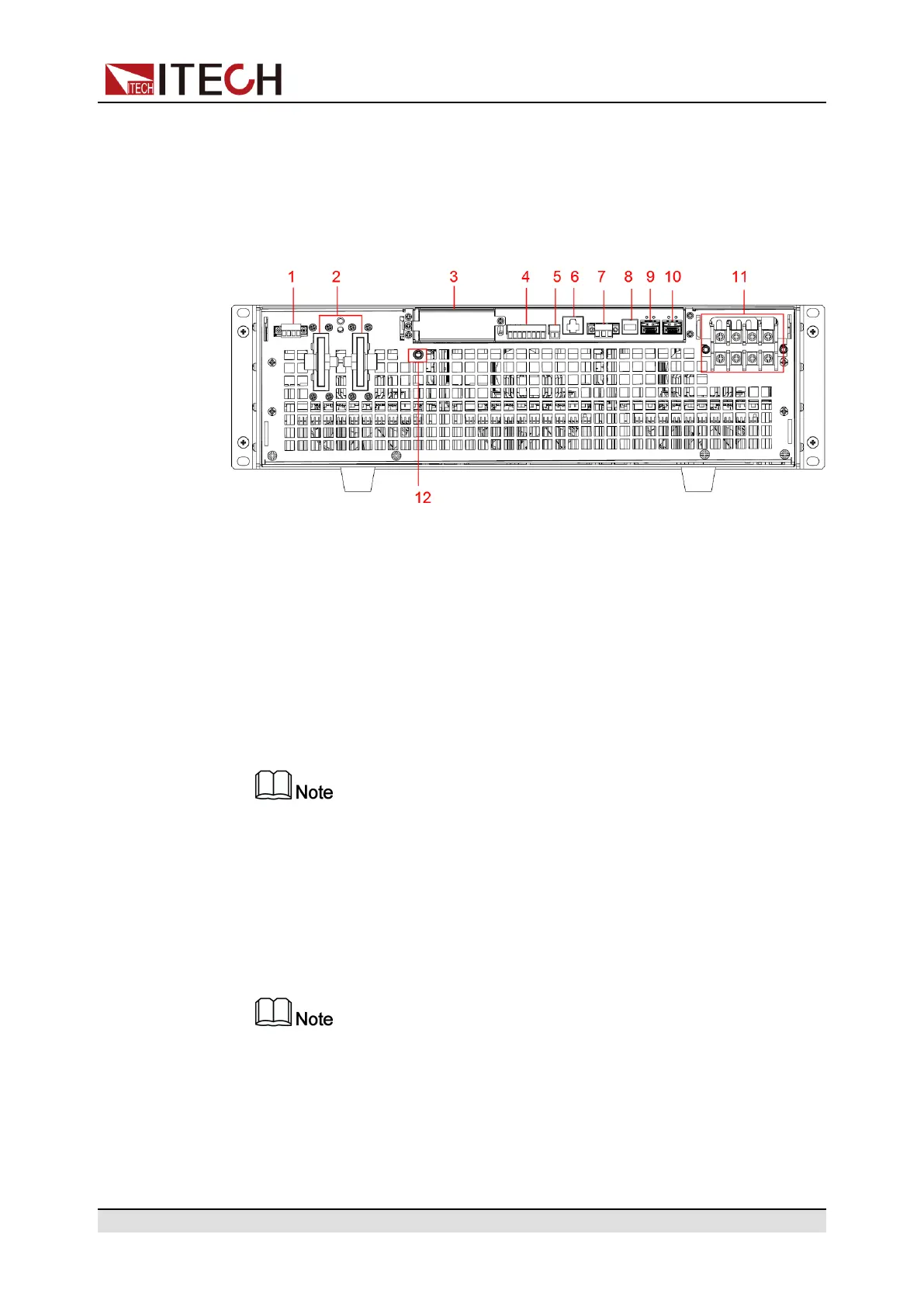

3U Models
1. Sense terminals (Vs+, Vs-)
2. DC output terminals of the power supply
3. Optional communication interface: RS-232 or GPIB
4. Digital I/O interface: P-IO
5. CAN communication interface
6. LAN communication interface
7. External control interface CTRL
This interface is used for cabinet self-assembling scenarios. Connect the
interface on the rear panel of each unit to be connected in parallel, and
the master can offer synchronous control over the power-on/off of the
slave.
8. USB communication interface
9. Communication interface of inner ring optical fiber (F-TX and F-RX)
This interface is used for cabinet self-assembling scenarios for realizing
communication of units in parallel.
10.Communication interface of outer ring optical fiber (TX and RX)
