ITech IT6500C Series User Manual

Function and Features
When recalling the ISO16750-2 waveform, to ensure the validity of the
waveform，the user needs to enable the internal load function at first and
then set the current of internal load to the maximum value. Please refer to
3.9.8 Load Function for the detailed operation.

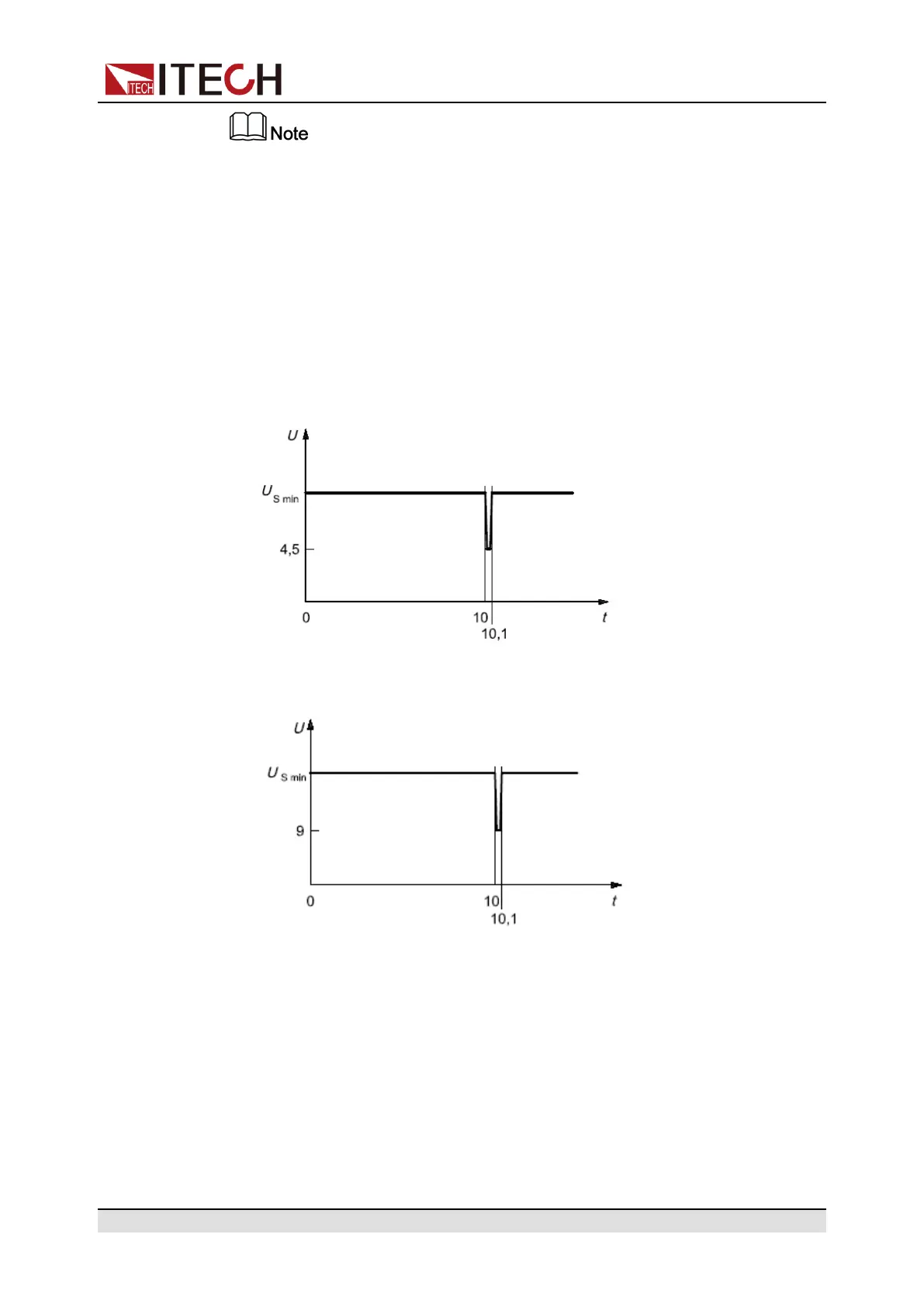

Short voltage drop
This test simulates the effect when a conventional fuse element melts in
another circuit.
• 12V system
• 24V system
How to recall “Short voltage drop” waveform from menu (take 12V system as an
example):
1. Press [Shift]+ [I-set](Function) to enter the menu operation.
2. Press right direction key to select ISO16750-2, press [Enter].
3. Press Left/Right direction keys to select Short, press [Enter].
4. Press right direction key to select On, press [Enter].
5. Press Up/Down direction key to select 12V, press [Enter].
