ITRON ACE6000 - 4 Wire Asymmetrical Direct Connection; 3 Wire Asymmetrical Direct Connection

ACE6000 User Guide
74

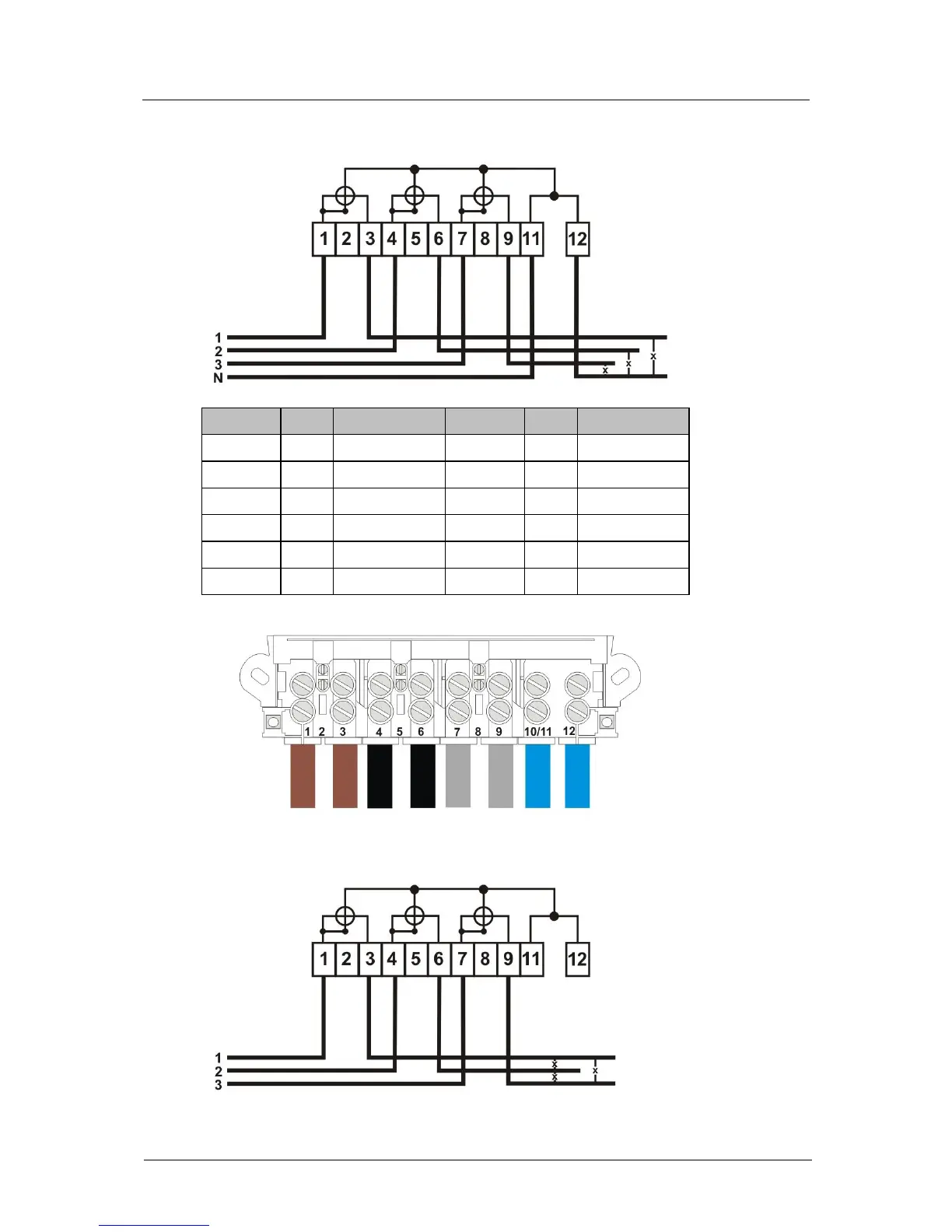

4 wire asymmetrical (VDE) direct connection configuration
Terminal
Phase
Function
Terminal
Phase
Function
1
1
I1 - Phase 1 in
7
3
I3- Phase 3 in
2
No connection
8
No connection
3
1
I1 - Phase 1 out
9
3
I3 - Phase 3 out
4
2
I2 - Phase 2 in
10/11
N
Un - Neutral in
5
No connection
12
N
Un - Neutral out
6
2
I2 - Phase 2 out
Typical wiring illustrated below:
3 wire asymmetrical (VDE) direct connection configuration
