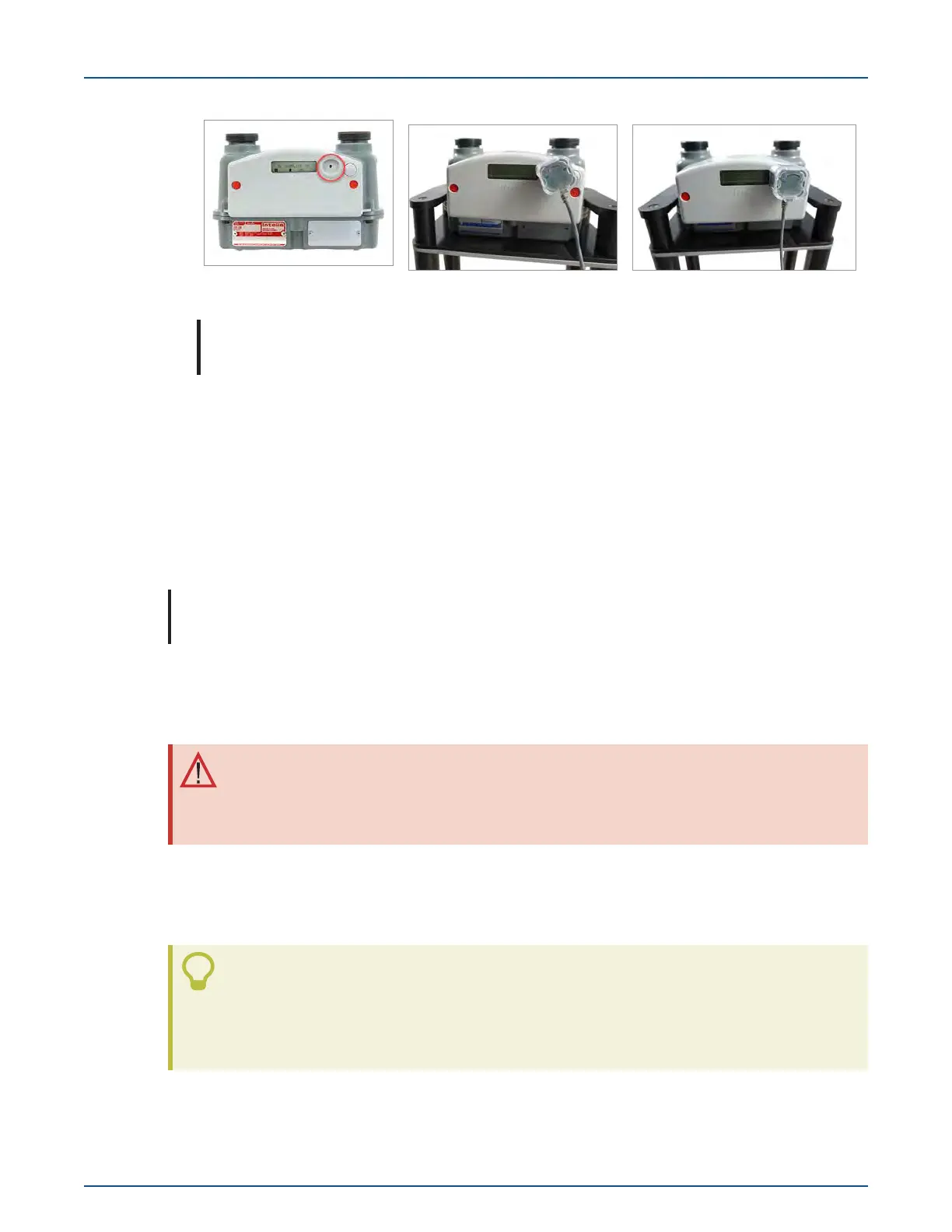

Note: The Intelis Gas Meter will automatically go into Test Mode (Menu 6) when the
pulse prover output cable is connected.
12. Start the proving test by clicking RUN on the SNAP prover.
13. Verify the LED blinks (pulses) when the air begins to flow through the meter.
Proving the Intelis Gas Meter Using the Measurement Systems Proving
System
This section provides the information to set up an Intelis Gas Meter using a Measurement Sys-
tems proving system.
Note: Proving the Intelis Gas Meter requires Measurement Systems prover software. See
the Measurement Systems prover documentation for version requirements.
Temper meters unpackaged and uncapped in the proving area for 24 hours prior to testing. If
tempering is not possible, complete steps 1-8 of Temper the Meter by Exercising the Meter.
If the meters are tempered, continue to Setting Up the Measurement Systems Prover.
Warning! Follow your company's standard operating procedures regarding the use
of personal protection equipment (PPE). Adhere to guidelines issued by your com-
pany in addition to those contained in this document when proving meters.
Adjust the proving table to accommodate the height of the Intelis Gas Meter. If necessary, use
the Intelis Gas Meter prover stand (Itron part number FIX-7100-001). Place the prover stand on
the prover table and set the meter on the stand.
Tip: The Measurement Systems application software on the Measurement Systems
proving system provides touch screen functionality. You may prove the Intelis Gas
Meter using the Measurement Systems Prover screen or a traditional mouse-click to
complete the steps.
11 December 2019 TDC-1782-005 41
Intelis Gas Meter Installation Guide 5 îProving
