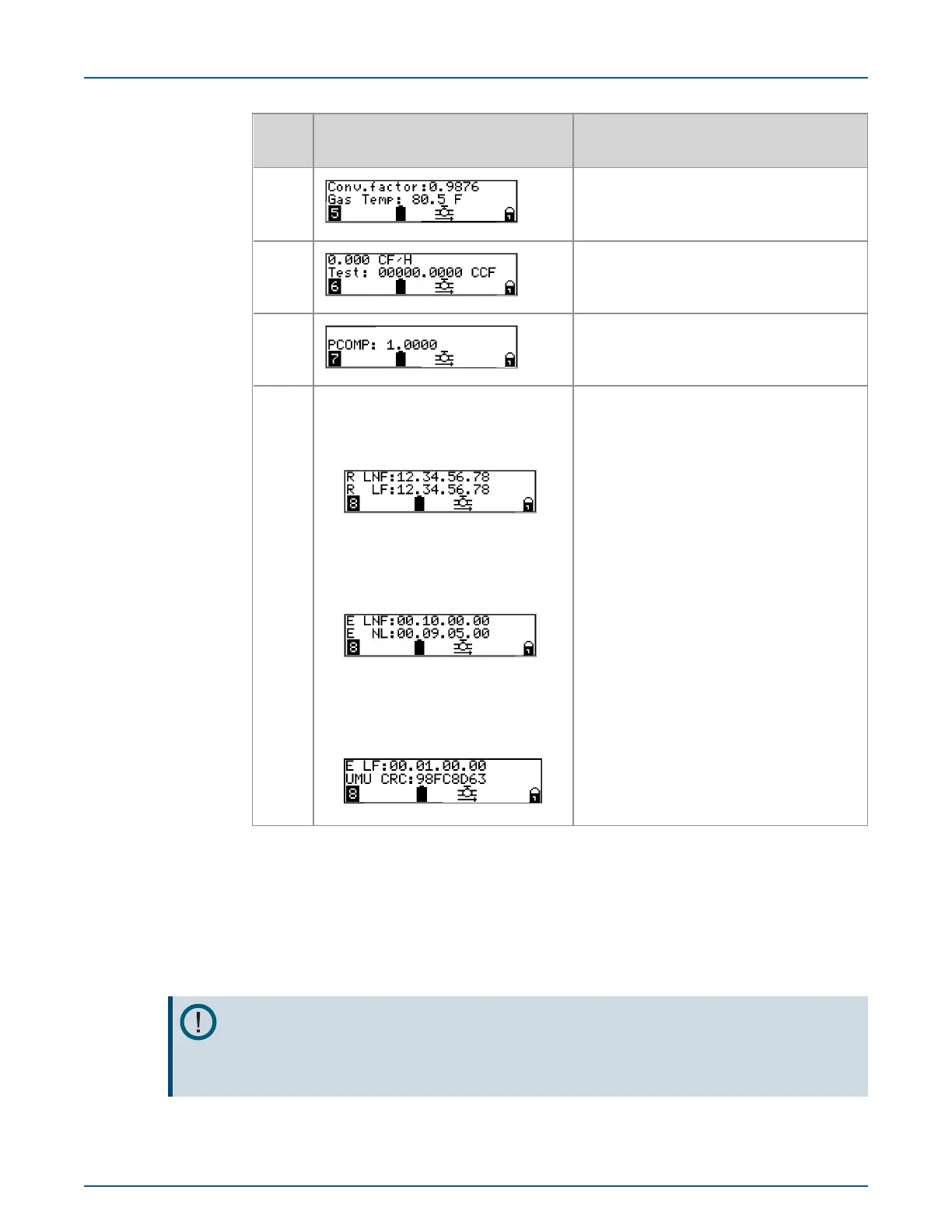

LCD display Description
5. Current gas temperature and conversion
factor. This is the gas temperature from
the temperature sensor in the UMU.
6. Test mode. Flow rate and volume.
7. Pressure compensation.
8.
■
R LNF: Register Legal Non-
Fixed Firmware; R LF: Register
Legal Fixed Firmware
■
E LNF: Encoder Legal Non-Fixed
Firmware; E NL: Encoder Non-
Legal Firmware
■
E LF: Encoder Legal Fixed Firm-
ware; UMU: Ultrasonic Meas-
urement Unit CRC
Firmware versions. The display cycles
through three screens to display the six
Intelis Gas Meter firmware versions. The
firmware version types are displayed on
the three LCD display menus.
LCD Display Alarms
The Intelis Gas Meter reports the following alarms on the LCD regardless of the programming
mode. When the meter is programmed to Network Mode, events are logged with a start time
(see the following information for alarms that also have an end time). Users may cross check
alarms over the network or with a device loaded with FDM Tools.
Important! When the meter is programmed to Mobile Mode, it is not possible to
retrieve any of the listed events or alarms. Active alarms can be seen on the LCD, as
described in the following LCD alarm information.
11 December 2019 TDC-1782-005 22
Intelis Gas Meter Installation Guide 4 LCD Operation
