ITW Dynatec DY 2008 - Page 87

ITW Dynatec c. 2003 Appendix B pg. 5
DY2008 Controller Manual #50-14 Revised 2/05
Channel
Capacity
Board
Number
DIP Switch (S1) Position Settings
1 2 3 4 5 6 7 8
1 thru 16 1 off off off off off off off off
17 thru 32 2 on off off off off off off off
33 thru 48 3 off on off off off off off off
49 thru 64 4 on on off off off off off off
65 thru 80 5 off off on off off off off off
81 thru 96 6 on off on off off off off off
97 thru 112 7 off on on off off off off off
113 thru 128 8 on on on off off off off off
Electrical Connector

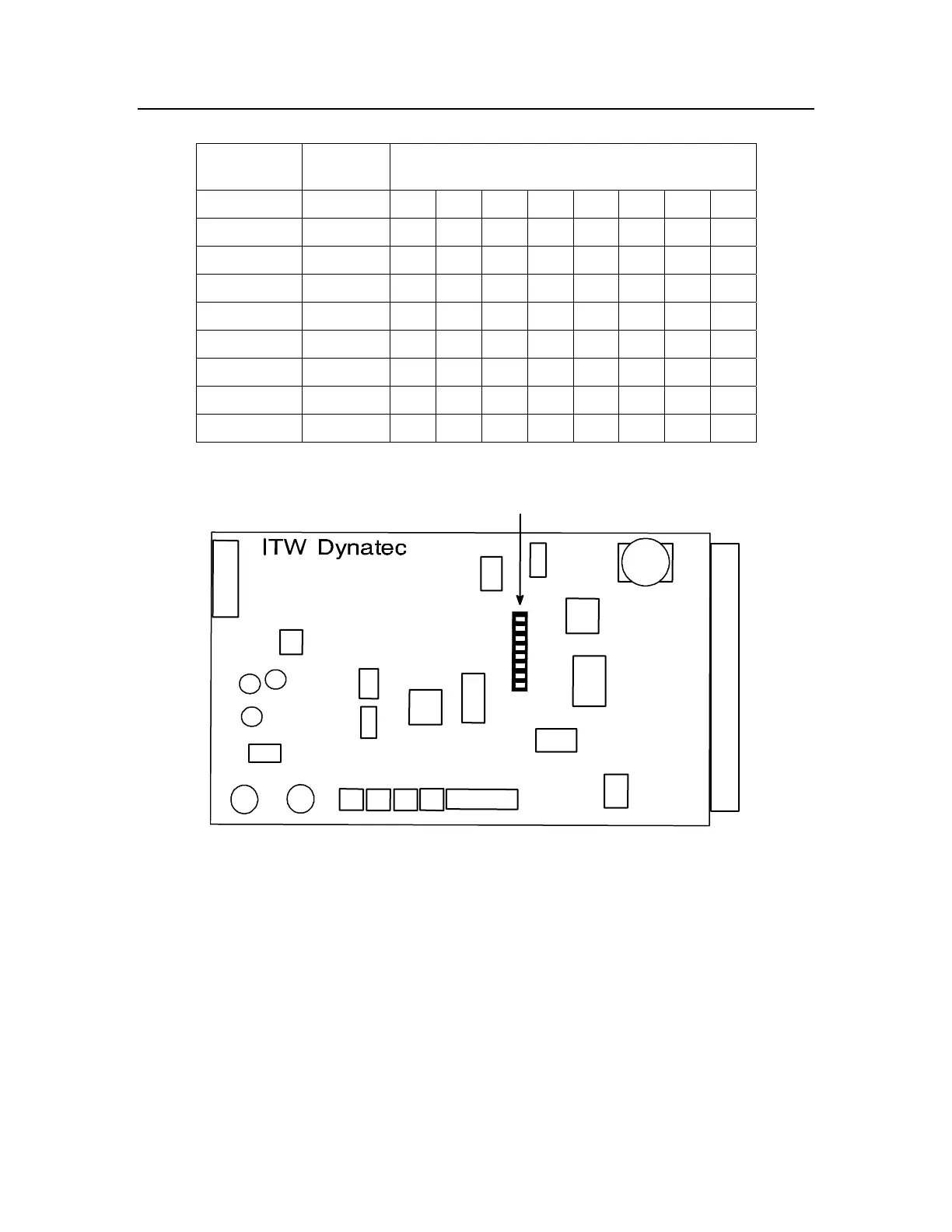

Dip Switch (S1)
Communication Board
