2: Key Features & Components
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•7
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

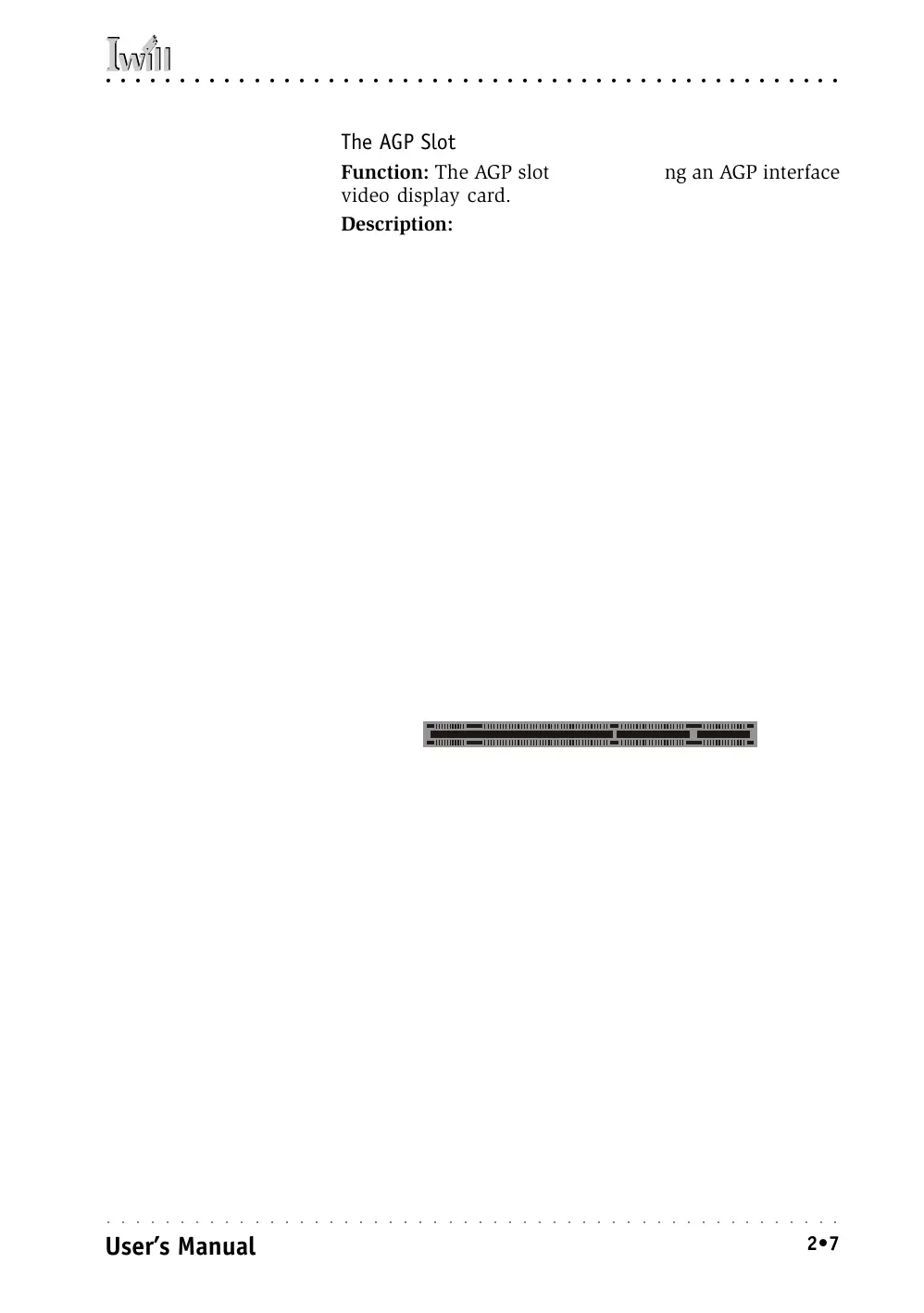

The AGP Slot
Function: The AGP slot is for installing an AGP interface
video display card.
Description: The AGP slot is a high-speed slot exclusively
designed for an AGP video display card. The AGP slot
supports two types of AGP card:
• AGP 4X – 266MHz data transfer, maximum 1064MB/
second data throughput
• AGP Pro50
The slot only supports 1.5V devices. Do not use a 3.3V
AGP card with this motherboard. The AGP slot is ex-
tended to include support for AGP Pro50 cards using up
to 50 watts of power.
More Information: See the section “Connecting & In-
stalling Internal Peripherals” in Chapter 4. Technical speci-
fications are listed in Chapter 7. Also, see the Advanced
Chipset Features section of “Configuring the CMOS Setup
Utility” in Chapter 5 for information on setting the AGP
memory aperture size.
AGP Pro Slot:
For AGP 4X & Pro 50 1.5V
cards only. Do not use
3.3V cards.
AGP slot is for both AGP 4X & AGP Pro 50 cards
