4: Installing The Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
4•5
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

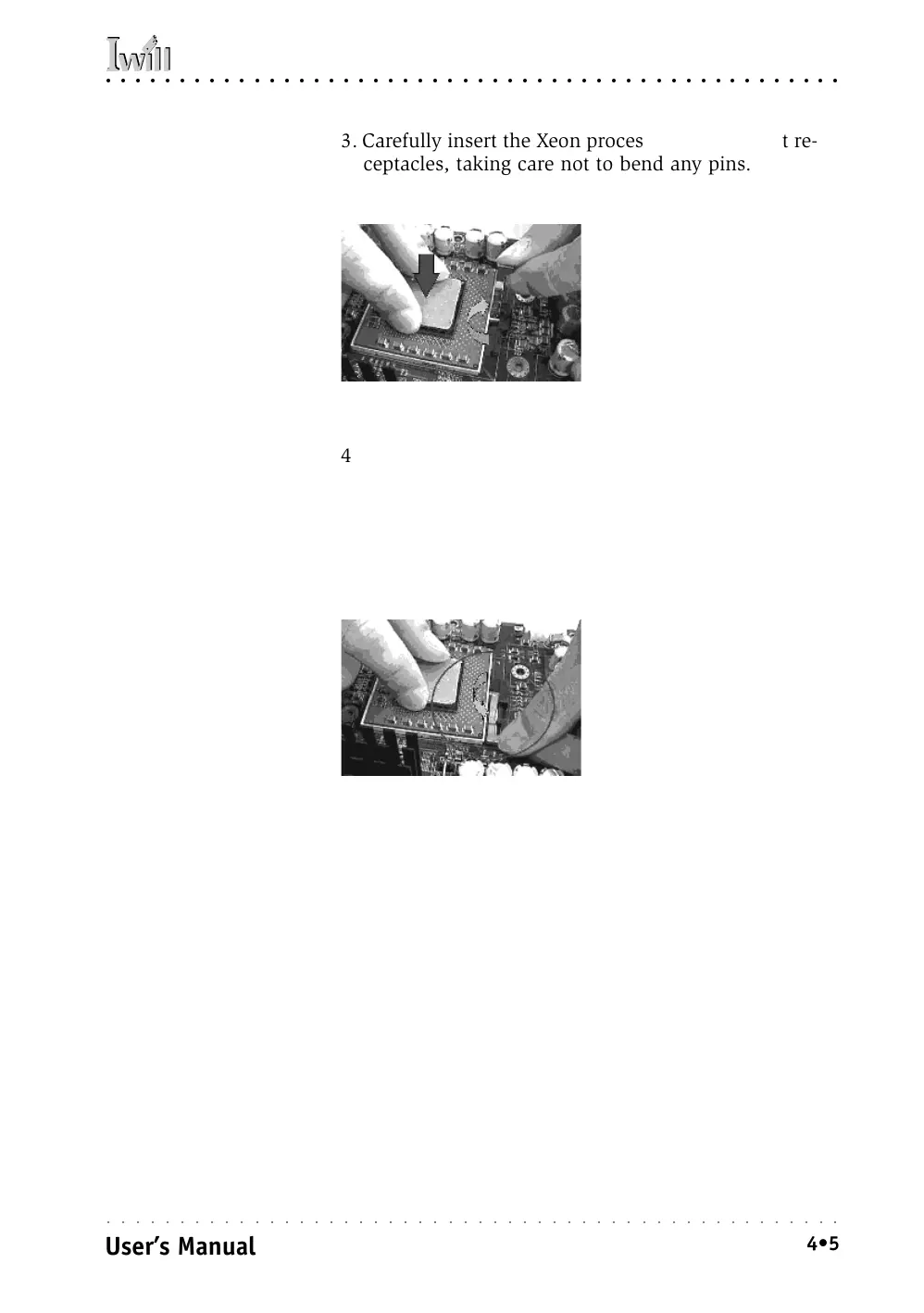

3. Carefully insert the Xeon processor in the socket re-
ceptacles, taking care not to bend any pins.
4. Lower the locking mechanism’s retaining lever and
secure it in place to secure the processor in the
socket. Grasp the processor by the edges and gently
pull upwards to insure it is properly inserted. The
processor shouldn’t move.
Gently press the processor
into the socket. Make sure the
retaining lever is vertical.
Presss the retaining lever
back down into the horizontal
position and make sure it
latches in place.
Step 3:
Insert the processor
Step 4:
Secure the retaining lever
