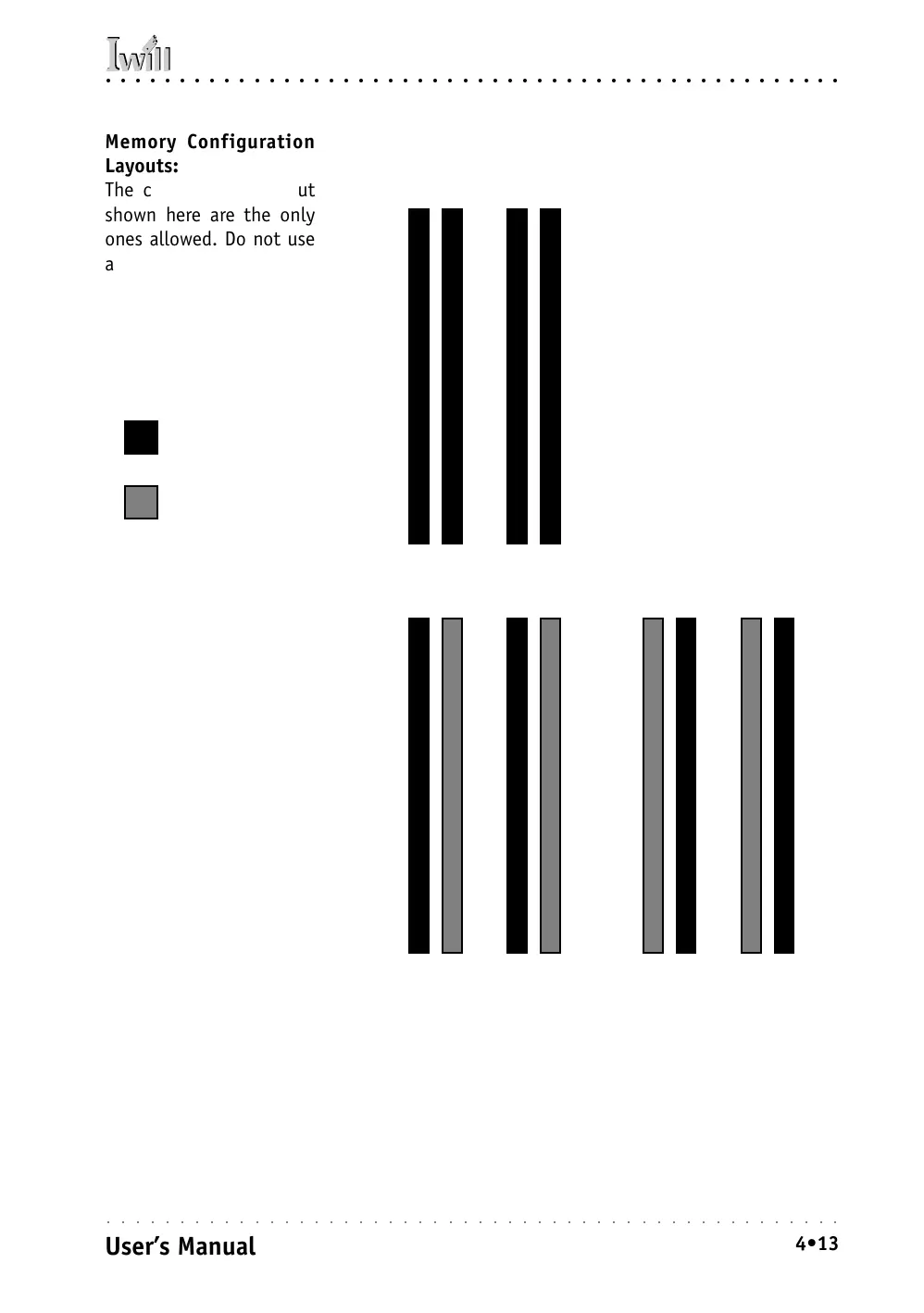

Memory Configuration
Layouts:
The configuration layout
shown here are the only
ones allowed. Do not use
any other layout of RIMM
and CRIMM modules. All
sockets MUST have some
kind of module installed.
0123
0123 0123
RIMM module
CRIMM module
Each bank of two sockets
muct have at least one RIMM
installed
