DP400 Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
2•16
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

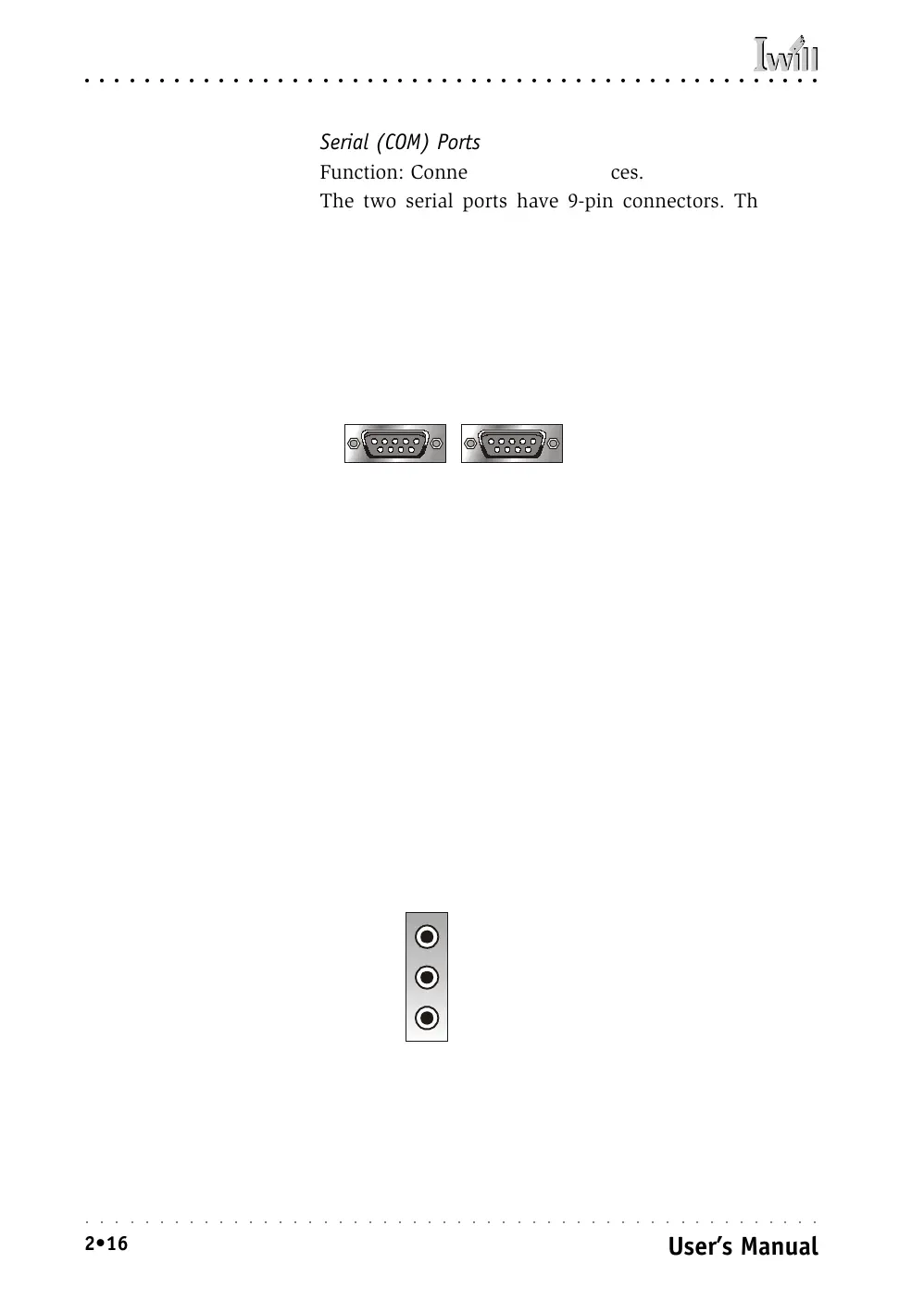

Serial (COM) Ports
Function: Connecting Serial devices.
The two serial ports have 9-pin connectors. They can
operate at speeds up to 115,200bps. You can configure
the port speed in the computer’s Operating System. Do
not connect or disconnect a serial cable when the system
is turned on.
More Information: See the Integrated Peripherals sec-
tion of “Configuring the CMOS Setup Utility” in Chapter
5 for information on adjusting port settings.
Audio Jacks & AC ‘97 Audio
Function: Jacks for connecting external audio devices to
the onboard AC ‘97 audio subsystem.
Description: There are three audio jacks:
• Line Out
For the two stereo speakers.
• Line In
Audio input connector for an external audio source.
• Mic
Microphone connector for a computer microphone.
More Information: See the Integrated Peripherals sec-
tion of “Configuring the CMOS Setup Utility” in Chapter
5 for information on AC ‘97 audio settings.
Serials ports 1 & 2
Serial Ports:
The default configuration
is Serial 1 = COM1 and Se-
rial 2 = COM2. Installing
an IR port requires dis-
abling COM2.
Line In (Light Blue)
External Audio Jacks:
The onboard AC ‘97 audio
supports stereo speakers,
audio input and a micro-
phone.
Line Out (Lime)
Mic
