4: Installing The Motherboard
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
User’s Manual
4•7
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

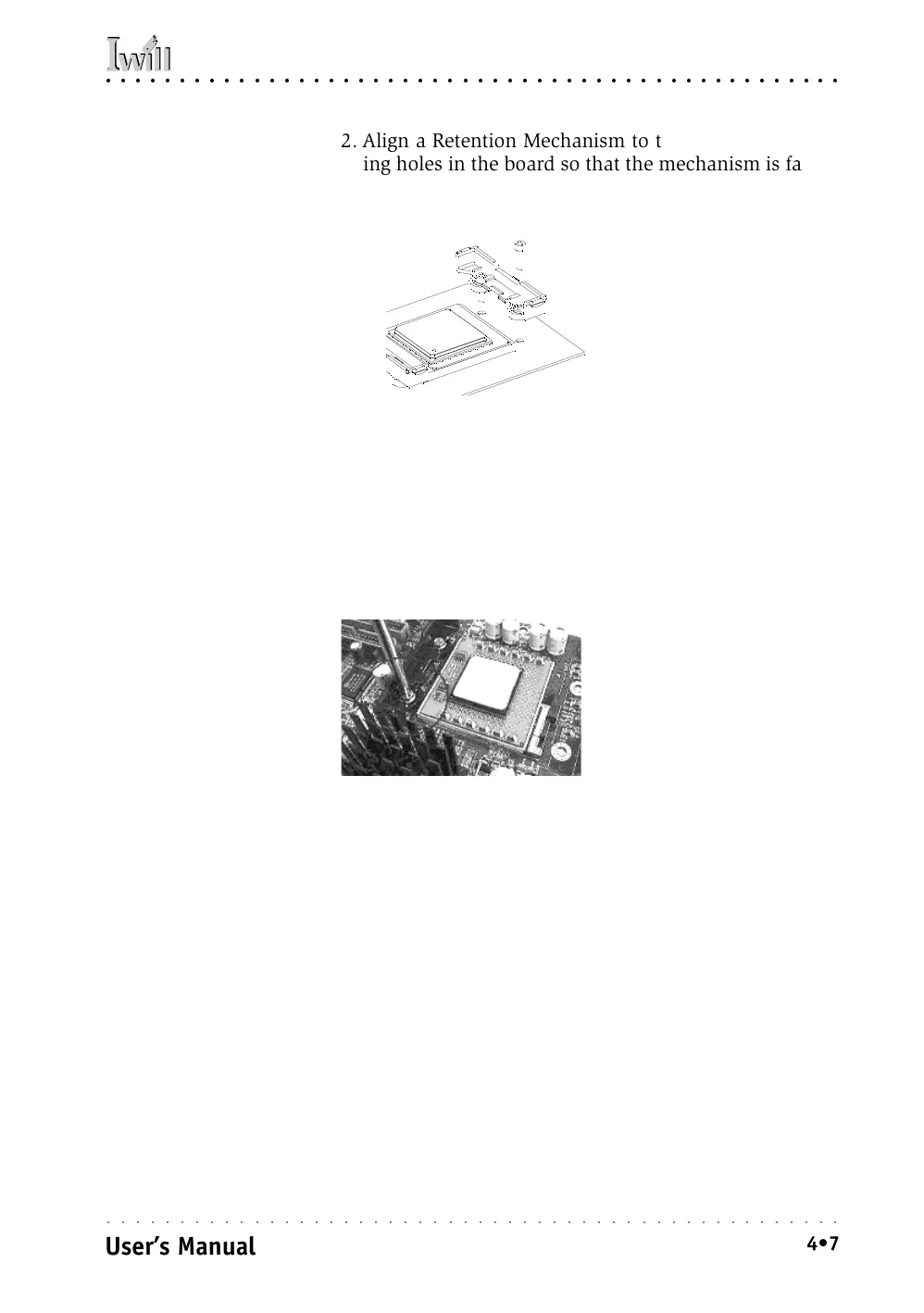

2. Align a Retention Mechanism to two of the mount-
ing holes in the board so that the mechanism is fac-
ing in towards the CPU socket.
3. Insert one of the supplied screws in each hole in the
mechanism so that it inserts in a matching standoff
on the CPU Backplate. Tighten the screws until they
are snug. Don’t overtighten the screws.
4. Repeat the same procedure to attach the second Re-
tention Mechanism on the opposite side of the CPU
socket. The mechanisms should hold the CPU
Backplate securely against the underside of the
motherboard.
If you are installing two CPUs, repeat this procedure on
the CPU1 socket.
Step 2:
Position the Retention
Mechanism
Step 3:
Attach the mechanism &
CPU Backplate with screws
Position the mechanism
facing in towards the CPU
socket.
Insert & tighten the mount-
ing screws so that they screw
into the CPU backplate
To Next Page
