4: Installing The Motherboard

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

User’s Manual

4•9

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

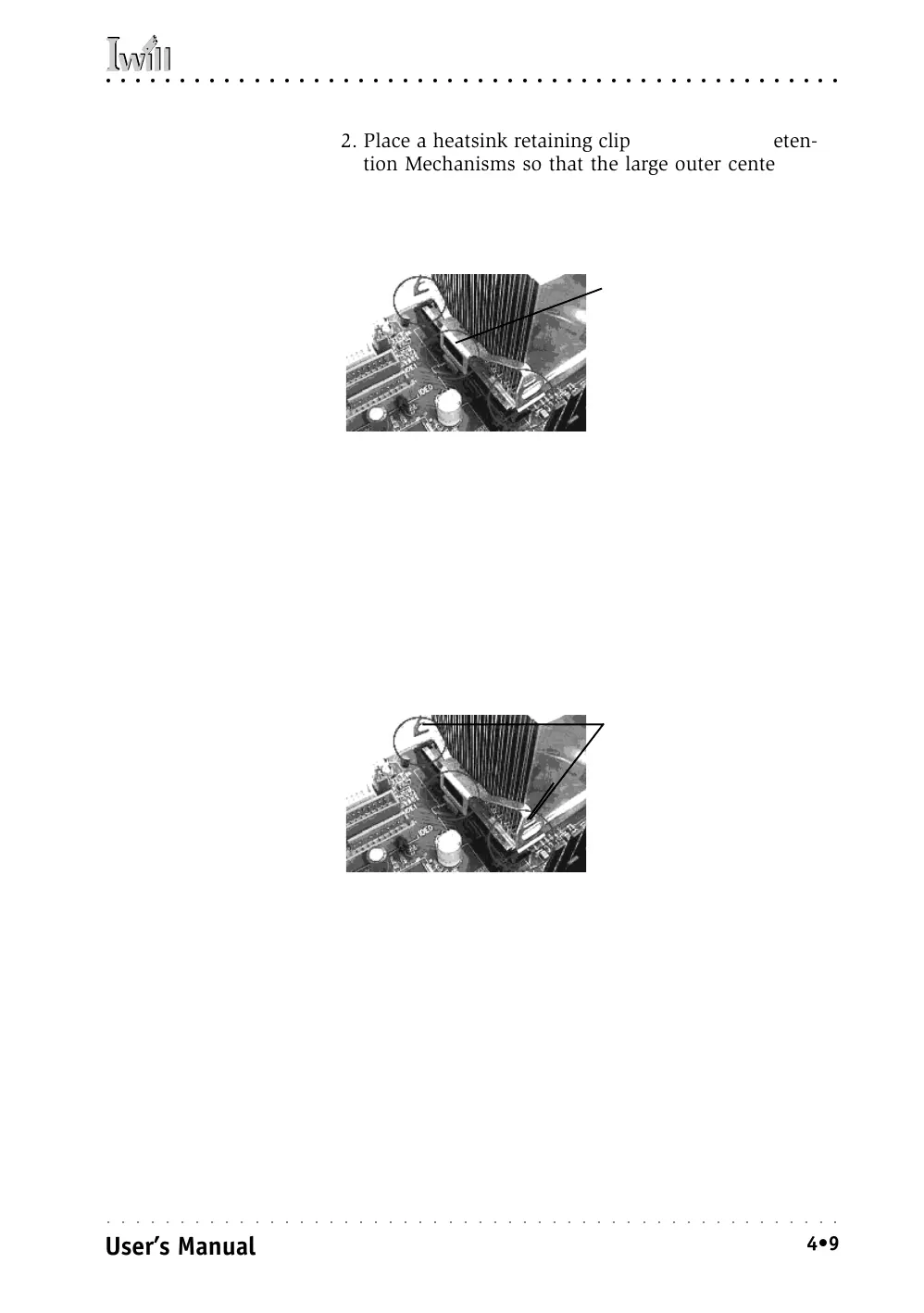

2. Place a heatsink retaining clip on one of the Reten-

tion Mechanisms so that the large outer center tab

is on the outside and fits over the extension on the

Retention Mechanism. The inner center tab should

clip over the edge of the Heatsink.

3. Hold the clip down against the mechanism and press

down on one end of the retaining clip so that the

tab on the end clips securely over the extension on

that end of the mechanism.

4. Press the other end of the retaining clip down so

that it clips securely over the extension at the other

end of the mechanism. The spring tension of the

clip should now hold that side of the heatsink se-

curely against the Retention Mechanism.

5. Repeat the procedure above on the Retention Mecha-

nism on the other side of the Heatsink.

After you install the two retaining clips, the Heatsink

should be securely attached.

position the clip so that the

large tab is on the outside

and fits over the mechanism

extension there

Position Heatsink Clips

Position a clip on each Re-

tention Mechanism.

Attach Heatsink Clips

Press the clip ends onto

Retention Mechanism.

Hold the clip down in the

middle while you press the

each end of the clip onto the

Retention Mechanism
