SPECIFICATIONS

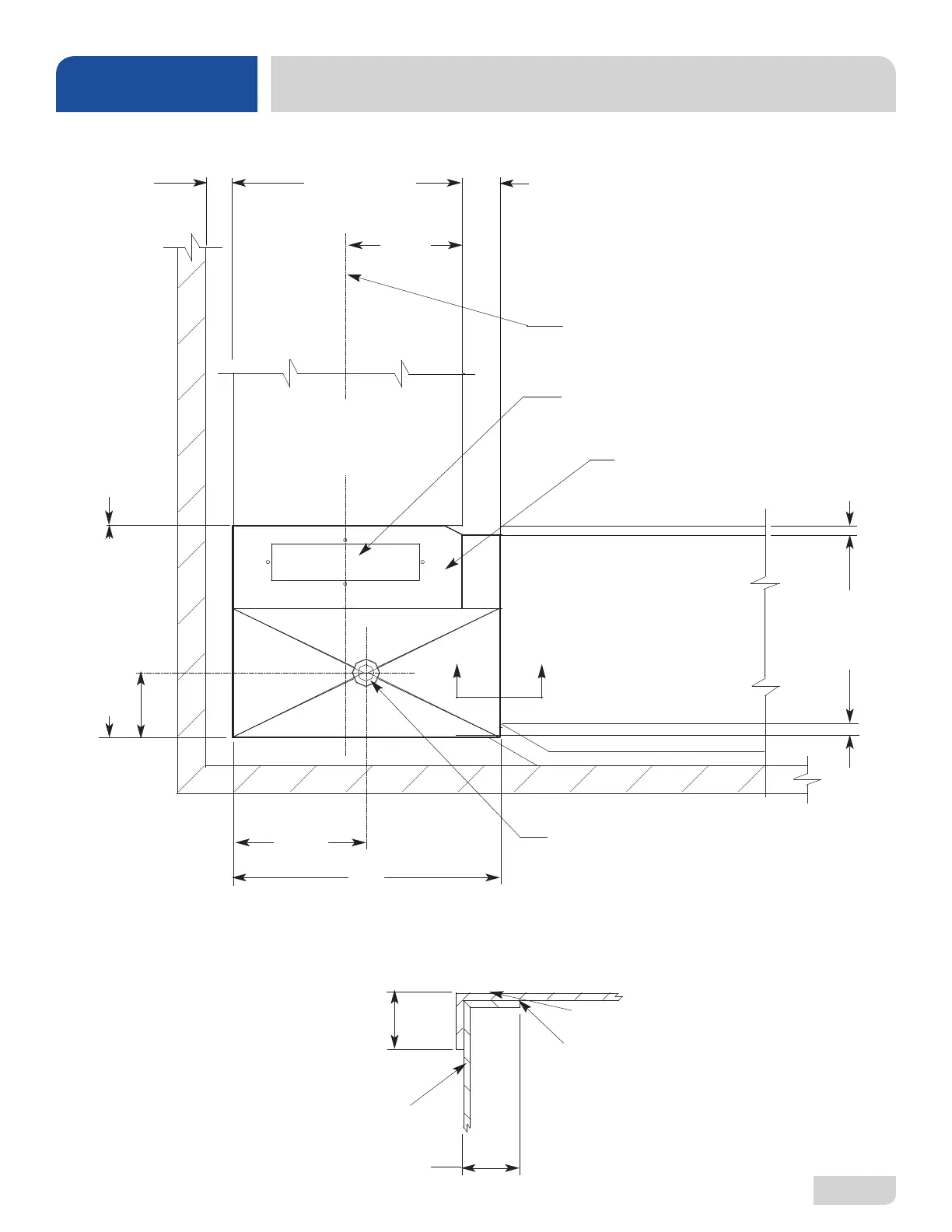

SIDE-LOADER DIMENSIONS
SIDE-LOADER LEFT-TO-RIGHT
23” or 30” depending on
the width of the side-loader.
Conveyor Dishwasher Length
8” or 15” depending on the
width of the side-loader.
4 1/2”
Minimum
25”
Dishmachine
5”
12 1/2”
14 1/2”
29”
1 1/2” Table Roll
20 3/4”
Opening
1”
A A
1/2”
Minimum
1/2”
Dishtable
Use silicone
between table
and lip of
side-loader
to prevent
leakage
Wall of side-loader
Dishmachine
Center-line
Splash Shield
Vent Connection
Opening
1 1/2” drain, connected
to dishmachine drain line.
Conveyor
Dishmachine
Section A-A
