Jackson AJX Series Installation, Operation And Service Manual

22
07610-003-60-98-L
INSTALLATION
INSTRUCTIONS
The plumber MUST ush
the incoming water line!
DRAIN LINE
All plumbing connections must adhere to local, state, territorial, and national codes. The
installing plumber is responsible for ensuring the incoming water lines are ushed of debris
before connecting the machine. Chips and materials from cutting processes can become
lodged in the solenoid valves and prevent them from opening or closing. Any valves that
are found to be fouled or defective because of foreign matter left in the water line—and
any subsequent water damage—are not the responsibility of the manufacturer.
If water hardness tests at greater than 3 GPG, install the Scaltrol Water Treatment system
(see the Plumbing Options page) into the water line before the machine’s incoming water
connection point. If water hardness tests at 3 GPG or lower, install the water supply
line directly to the machine’s incoming water connection point. Iron in the water line
can cause staining. A lter designed to remove iron from the water supply is highly
recommended for supplies in excess of 0.1 ppm.
The manufacturer has an optional water pressure regulator to accommodate areas where
water pressure uctuates or is higher than the recommended pressure (see the Plumbing
Options page). The machine uses a ow pressure of 15 PSI for the incoming water line.
Do not confuse static pressure with ow pressure. Static pressure occurs when there is
no ow and the valves are closed. Flow pressure occurs when water is running into the
machine.
The water supply line must be 3/4" NPT minimum and must be able to provide water at the
minimum temperature indicated on the machine data plate.
A shut-o󰀨 valve (not supplied) should be installed to isolate the machine from the water
system in the event service is required. An optional shock absorber (not supplied) should
also be installed on the incoming water line (see the Plumbing Options page). This
prevents water hammer (hydraulic shock) from causing damage to the equipment.

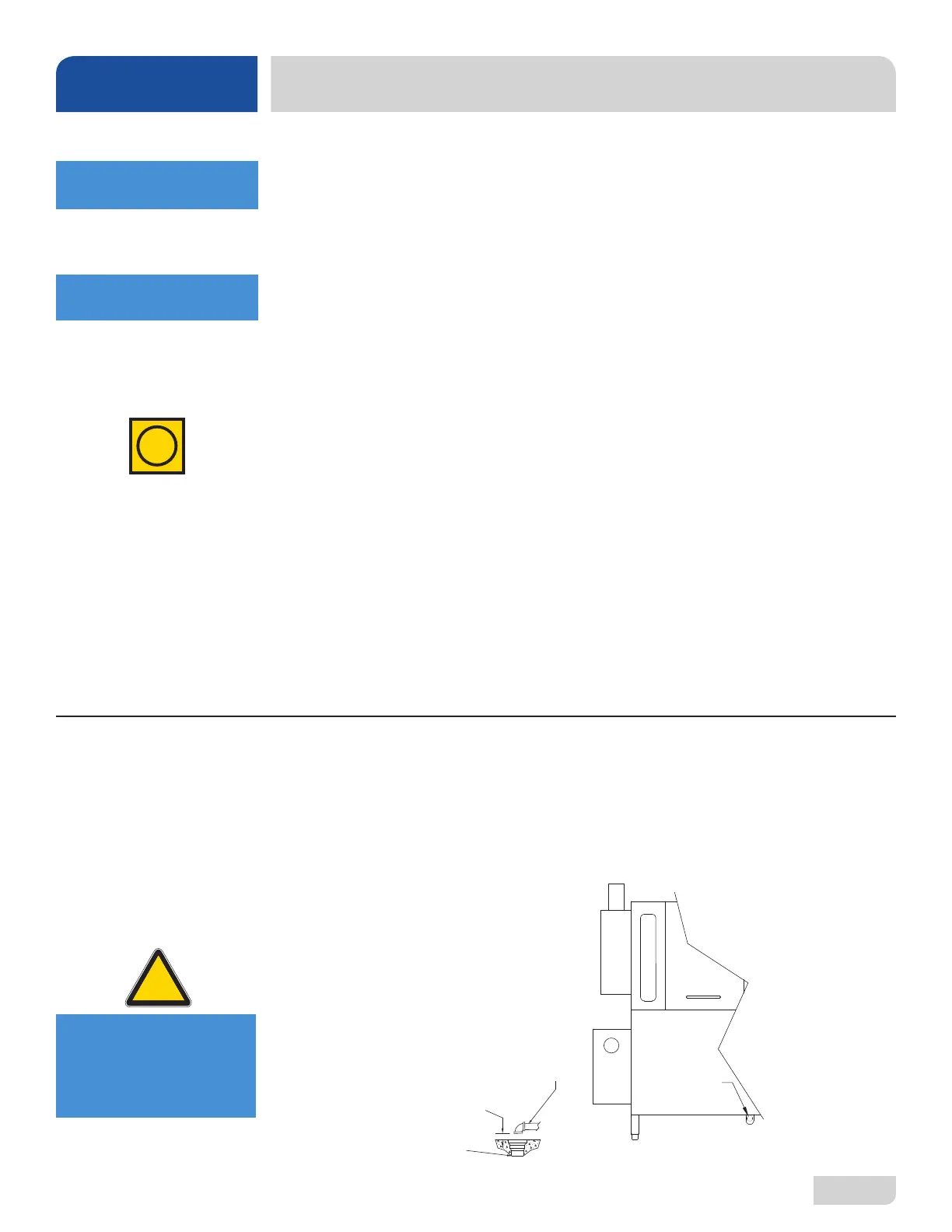

The drain for the machine is a gravity-discharge drain. All piping to the machine drain must
be a minimum 1 1/2” NPT and must not be reduced. There must be a minimum 1 1/2" air-
gap between the machine drain line and the oor drain or sink. The oor drain or sink must
be a minimum 3" NPT. If a grease trap is required by code, it should have a ow capacity
of 30 GPM. AJX-44/54 machines have one drain connection point and AJX-66/76/80/90
machines have two (connected and drained into one facility oor drain or sink).
PLUMBING
i
A water hardness test
MUST be performed.
Machine
Drain Line
1 1/2” [38 mm]
MIN, Must NOT
Be Reduced.
Pitch 1/4” per ft.
Must Install Machine
Drain Line above
3” [76 mm] MIN
Floor Drain or Sink
1 1/2”
[38 mm]
MIN
Air-gap
Drain
Connection
1 1/2
[38 mm]
!
CAUTION
CAUTION! An air-gap
is required between the
drain line and oor drain
or sink.
