INSTALLATION
INSTRUCTIONS
All electrical connections must be made in accordance with applicable portions of local,
state, territorial, and national codes.
Refer to the data plate for machine operating requirements, machine voltage, total
amperage, and serial number.

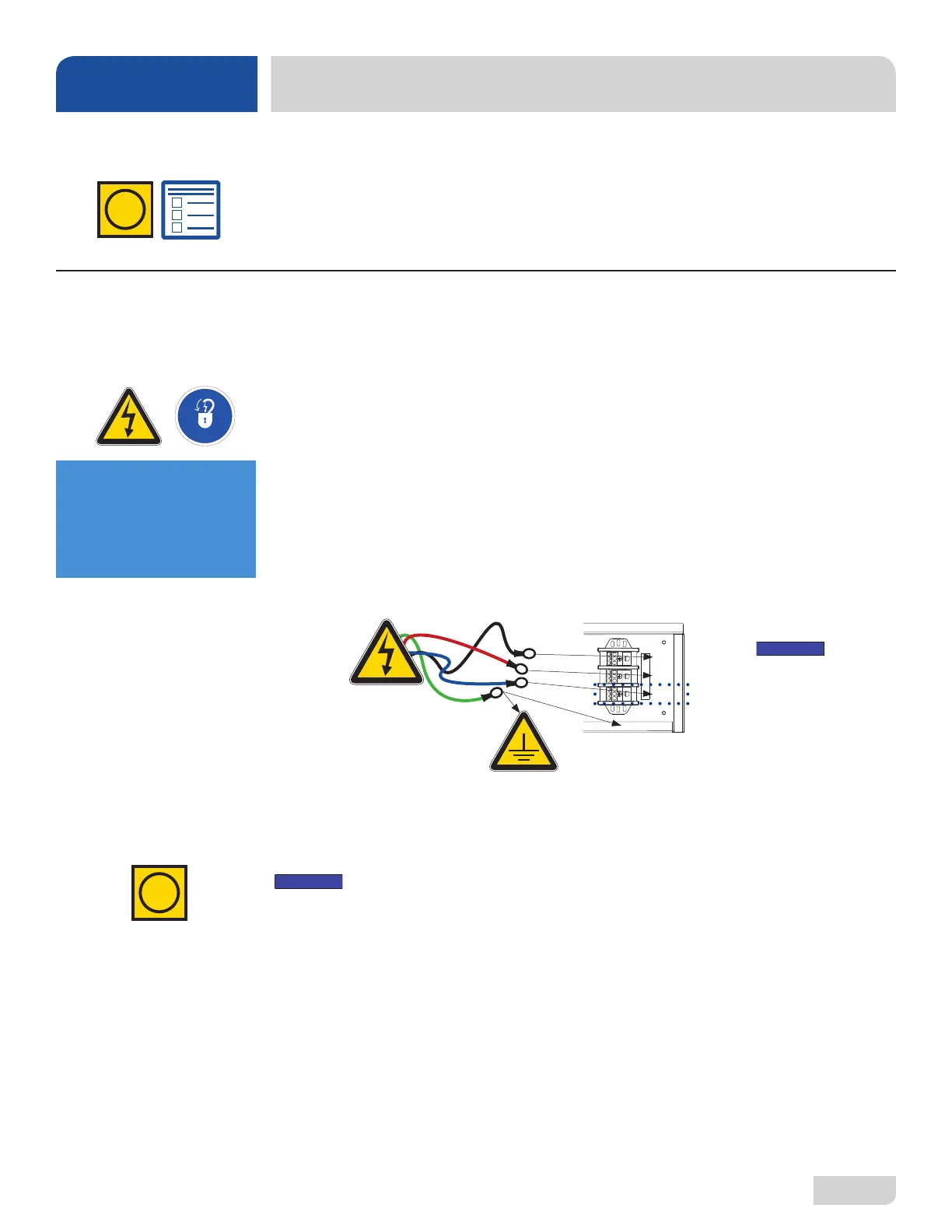

1. Locate main power terminal blocks (for the machine and for external booster
option, if applicable) at the top of the machine.
2. Remove the top cover to access terminal blocks.
3. Route incoming power lines within conduit that will connect via ttings to the pre-
punched holes in the back of the control box.
4. Install power and ground wires to lugs as indicated by the appropriate decals in the
control box. Use copper conductors only. Use of an anti-oxidation agent is
recommended on the power connections.
5. Tighten all connections.
6. Verify the incoming voltage matches the voltage indicated on the decal next to the
incoming power pre-punched hole.
The machine has a separate power connection for external boosters and the
circuit protection requirements are dierent for each. Consult booster manufac-
turer for information.
STEAM LINE
CONNECTIONS
ELECTRICAL
POWER
CONNECTIONS
Disconnect electrical
power at the breaker
or disconnect switch
and tagout in accordance
with procedures and
codes.
i
The steam machines come with lines to connect the source steam. Connect all steam
lines to the machine as all applicable codes provide. See machine data plate for
information concerning steam ow pressure.
Click here for the Steam Booster manual.
