Jackson AJX Series Installation, Operation And Service Manual

16
07610-003-60-98-L
SPECIFICATIONS

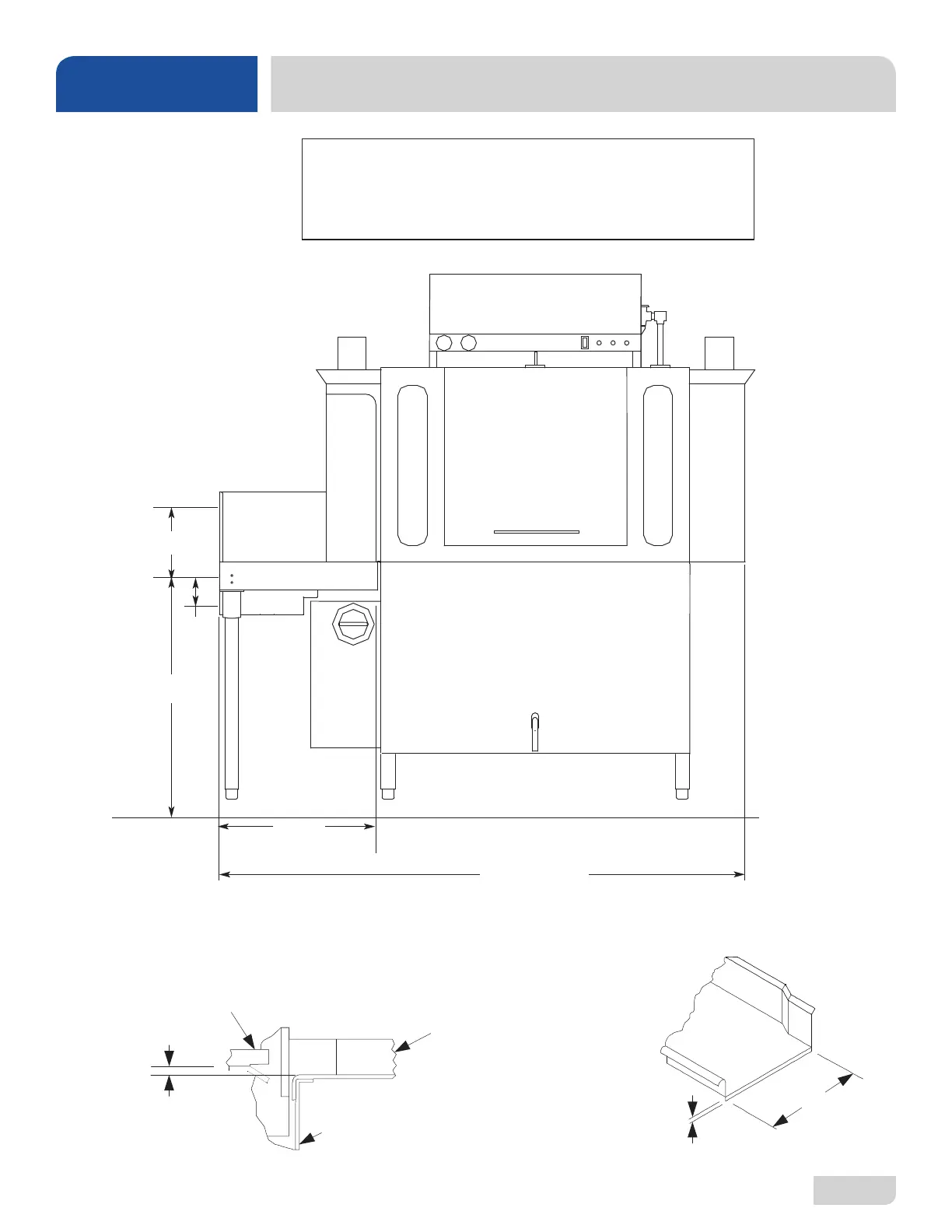

SIDE-LOADER & TABLE INSTALL
Refer to chart above.
23 or 30
[584 or 762 mm]
10
[254 mm]
23” SIDE-LOADER DIMENSIONS 30” SIDE-LOADER DIMENSIONS
MODEL
AJX-44
AJX-66
AJX-80
MODELDIMENSIONS
75”
97”
111”
DIMENSIONS
82”
104”
118”
Left-to-Right shown.
Depending on the width of the
side-loader.
34
[864 mm]
4
[102 mm]
21 [533 mm]
Rack Rail Height
above Table
1/4 [6 mm] - 5/16 [8 mm]
Table
Use Silicone Sealer
between Table and
Lip of Machine to
Prevent Leaks
Tub
Rack Rail
3/4 [19 mm]
Table Turndown
Flange 3/4 [19 mm] MAX
Tub Will Accept a
Table Flange up to
24 7/8 [632 mm]
AJX-44
AJX-66
AJX-80
