Jackson AJX Series Installation, Operation And Service Manual

58
07610-003-60-98-L
PARTS

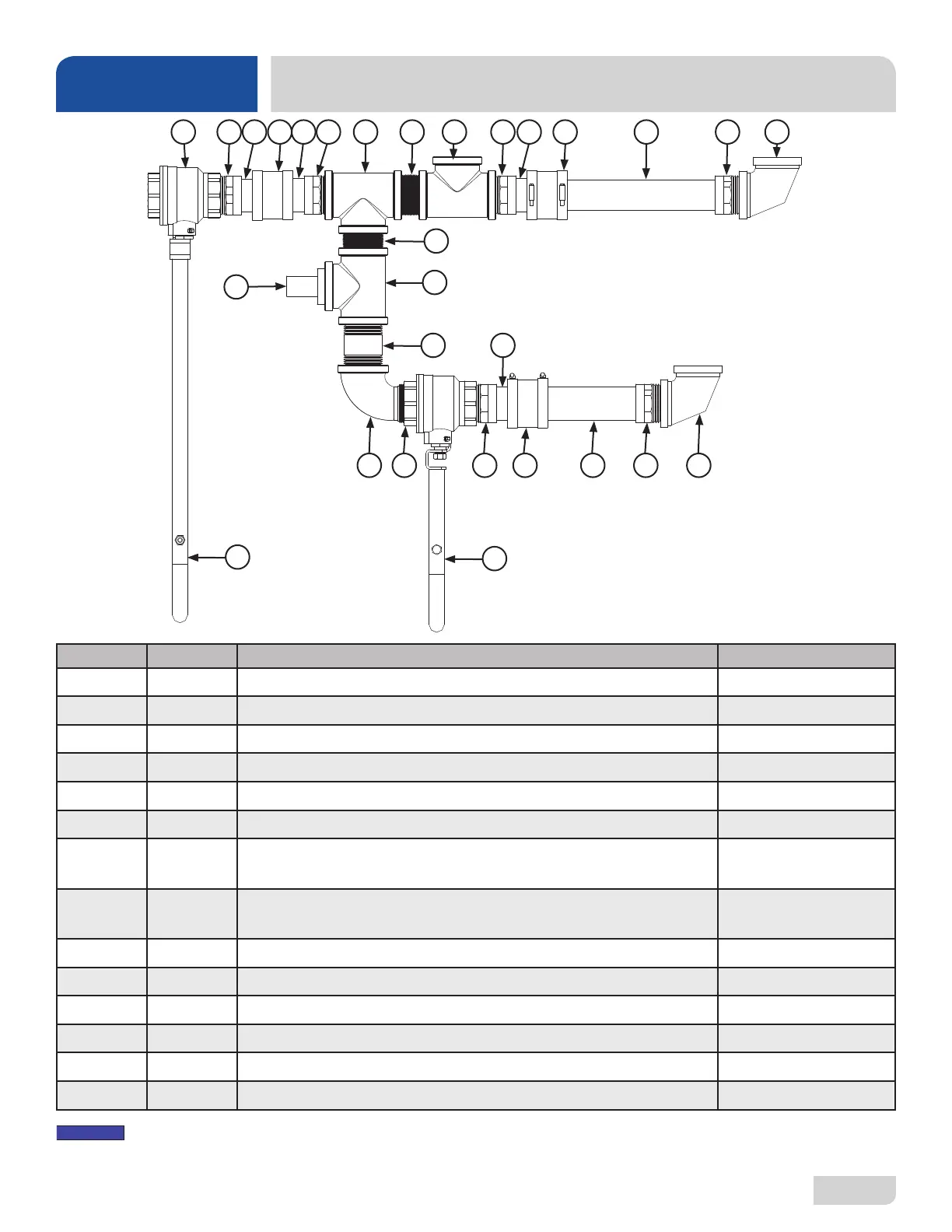

AJX-66/76/80/90 DRAIN PLUMBING, R-L
ITEM QTY DESCRIPTION PART NUMBER
1 1 Elbow, 1 1/2”, Street Brass 04730-206-32-00
2 2 Ball Valve, 1 1/2” 04820-011-71-46
3 6 Adapter, Male to Female, 1 1/2” 04730-401-25-01
4 4 Tube, Copper, 1 1/2” x 1 7/8” (All Models) See note below.
5 3 Tee, Brass, 1 1/2” 04730-011-69-93
6 2 Nipple, Close Brass, 1 1/2” 04730-207-40-00
7 2
Tube, Copper, 1 1/2” x 5 3/16” (AJX-66), 1 1/2” x 10 3/16” (AJX-76)
1 1/2" x 14 3/16" (AJX-80), 1 1/2” x 19 3/16” (AJX-90)
See note below.
8 2
Tube, Copper, 1 1/2” x 8 1/8” (AJX-66), 1 1/2” x 13 1/8” (AJX-76)
1 1/2" x 17 1/8" (AJX-80), 1 1/2” x 22 1/8” (AJX-90)
See note below.
9 2 Elbow, Brass, 90-degree, 1 1/2” 04730-011-73-77
10 3 Connector, No-hub, 1 1/2” 04720-003-73-73
11 1 Nipple, Brass, 1 1/2” x 3” 04730-011-87-04
12 1 Nipple, Rinse 05700-021-84-61
13 1 Valve Handle Assembly 05700-021-84-74
14 1 Valve Handle Assembly 05700-002-57-82
2 3 4 35 4
Copper tubing should be purchased locally and cut to the length shown in the part description.
NOTICE
10
34 6 5
10
8 3 9
6
5
11
12
4
14
1 2 3
10
7 3 9
13
