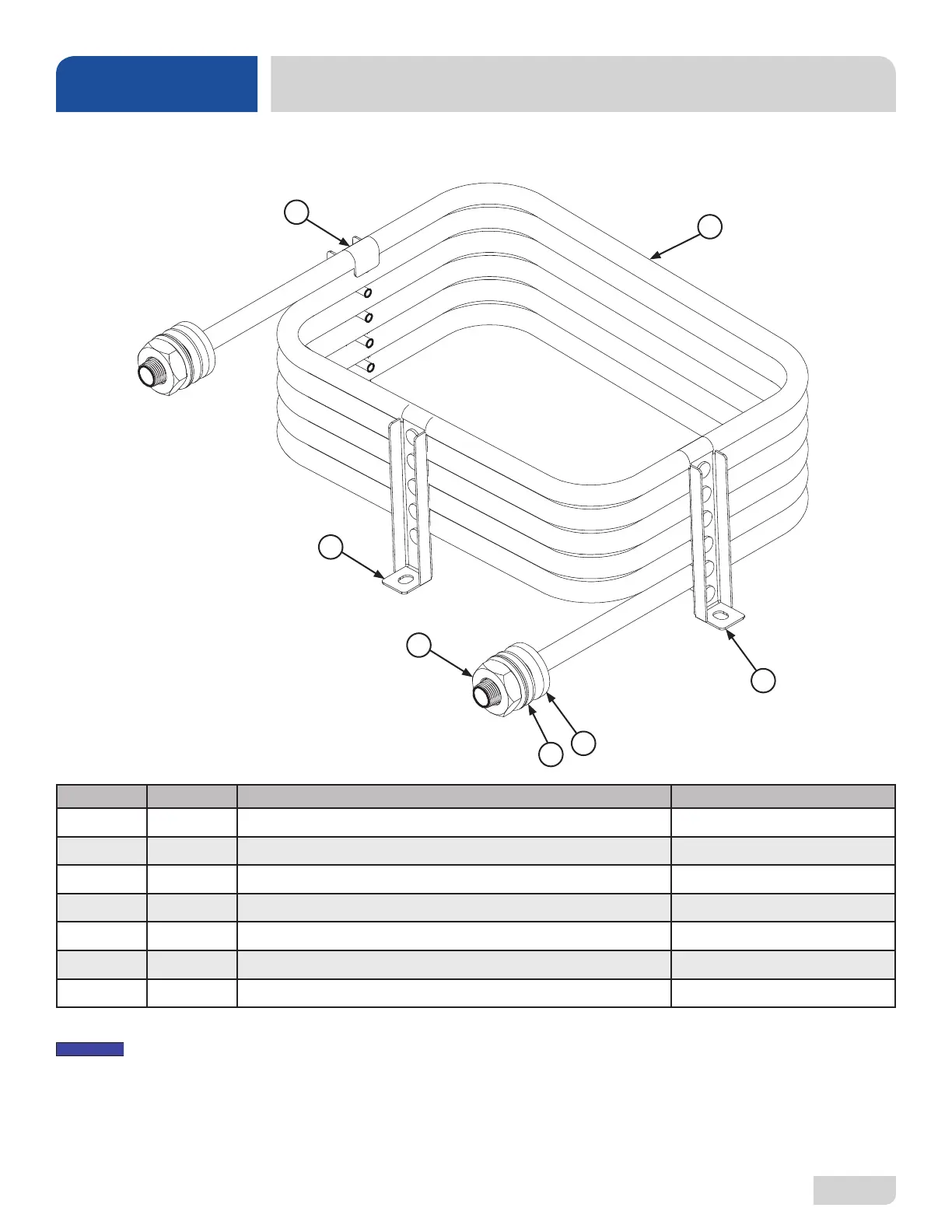

ITEM QTY DESCRIPTION PART NUMBER
1 1 Stand "D" 05700-002-74-85
2 1 Steam Coil 05700-002-84-03
3 1 Stand "C" 05700-002-74-84
4 1 Coil Gasket 05700-001-17-86
5 1 Flat Washer 05700-001-17-87
6 1 Coil Nut 05310-011-17-85
7 1 Stand "B" 05700-002-74-83
PARTS
STEAM COIL
1
2
3
6
4
5
7
The Coil Gasket should be replaced any time the Steam Coil is replaced or removed for an extended
period of time.
NOTICE
Complete Steam Coil Assembly
05700-002-11-78
