07610-003-60-98-L
71
PARTS

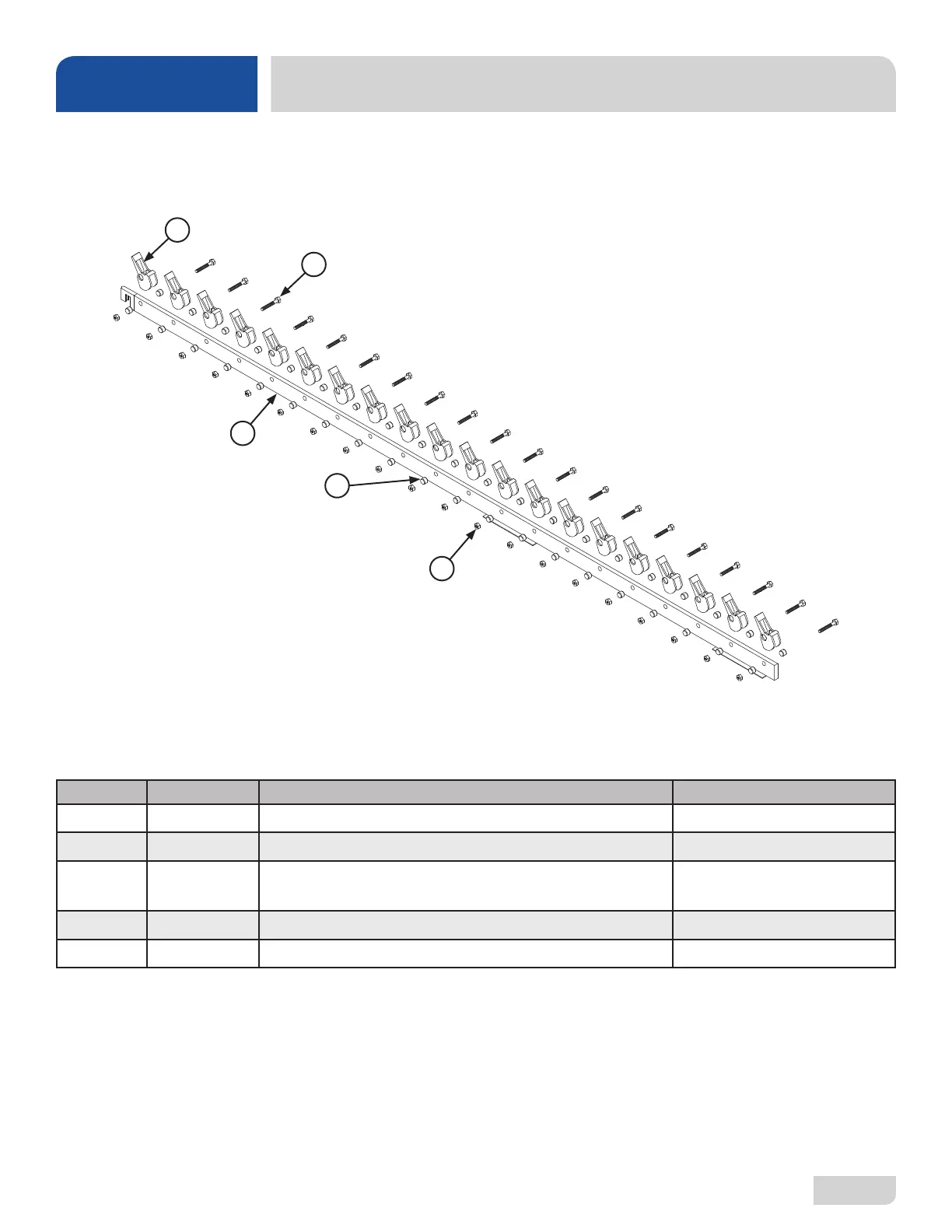

AJX-80 PAWL BAR
Complete AJX-80 Pawl Bar Assembly with Hardware, L-R
06401-131-81-06
Complete AJX-80 Pawl Bar Assembly with Hardware, R-L
06401-241-81-06
1
3
ITEM QTY DESCRIPTION PART NUMBER
1 20 Pawl Bar Dog Casting
1
09515-021-69-00
2 20 Bolt, 3/8-16 x 1-3/4” Long 05700-011-71-45
3
1
1
Pawl Bar (L-R)
Pawl Bar (R-L)
05700-031-74-19
05700-041-82-01
4 40 Pawl Bar Spacer 05700-011-71-45
5 20 Locknut, 3/8-16 with Nylon Insert 05700-011-72-55
2
4
5
1
When replacing pawl bar dog castings, ensure to re-install in the appropriate direction. If not, the rack will not be pulled
through the machine during operation.
