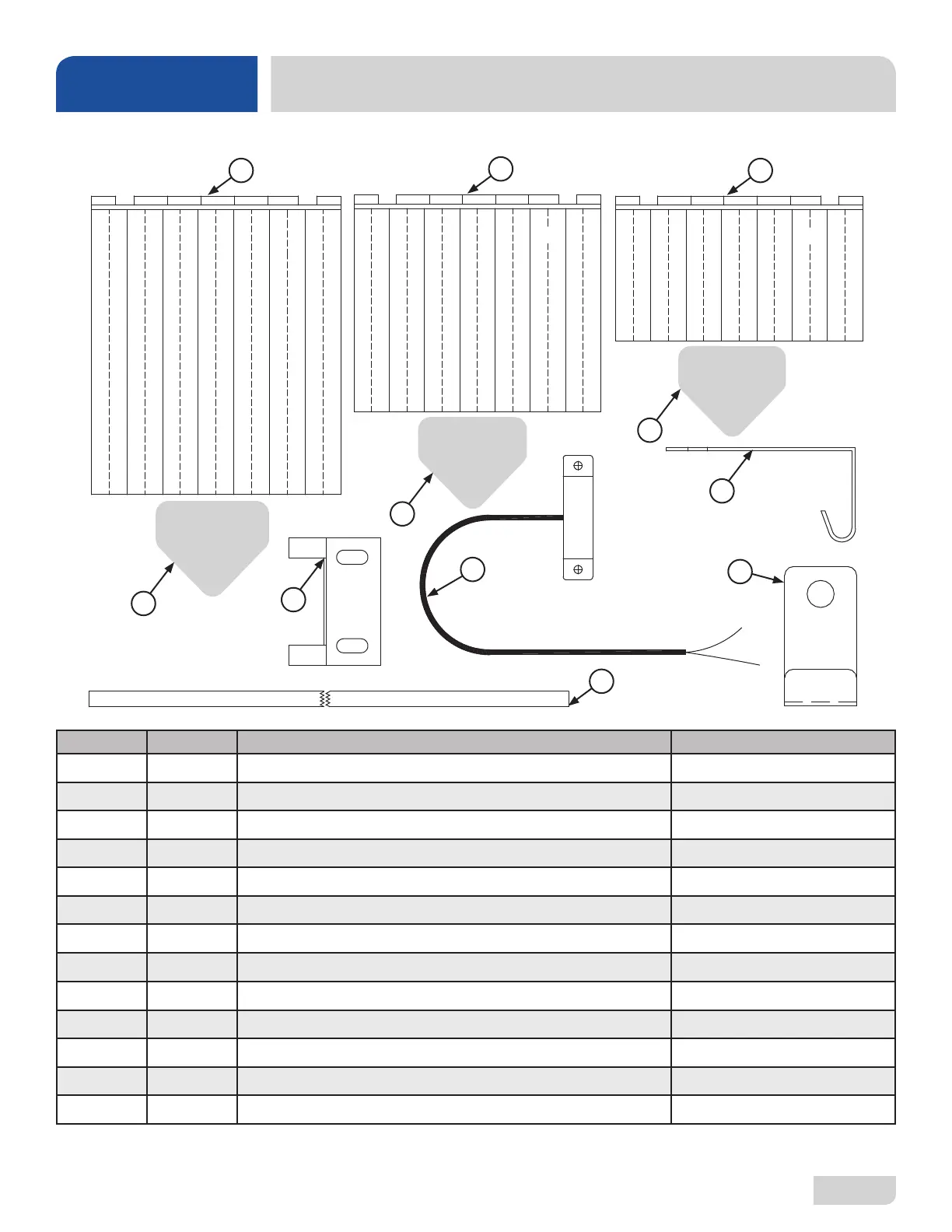

PARTS
CURTAINS/CONVEYOR SWITCH
ITEM QTY DESCRIPTION PART NUMBER
1 1 Curtain, XL, 24 1/2” x 20 1/2” 08415-002-47-37
2 1 Curtain, L, 21” x 20 1/2” 08415-131-73-45
3 1 Curtain, S, 12” x 20 1/2” 08415-131-73-44
4 1 Decal, XL Curtain 09905-004-38-08
5 1 Decal, L Curtain 09905-004-38-07
6 1 Decal, S Curtain 09905-004-38-05
7 1 Limit Switch Bracket 05700-021-71-18
8 1 Conveyor Switch Kit* 06401-003-11-79
9 1 Middle Curtain Hook 05700-011-72-65
10 1 Curtain Hook 05700-011-83-54
11 1 Curtain Rod 05700-003-77-52
12 1 Curtain, XL, Side-loader (Not Shown) 08415-003-84-88
13 1 Curtain Rod, Side-loader (Not Shown) 05700-003-84-57
S
12
L
21
XL
24.5
1
2
3
4
5
6
7
8
10
11
9
* Kit contains the switch, a terminal, and a wire nut. Cut the cord on the Conveyor Switch to length in the eld and install
the terminal there.
Parts are not shown to scale with relation to each other.
