07610-003-60-98-L
27

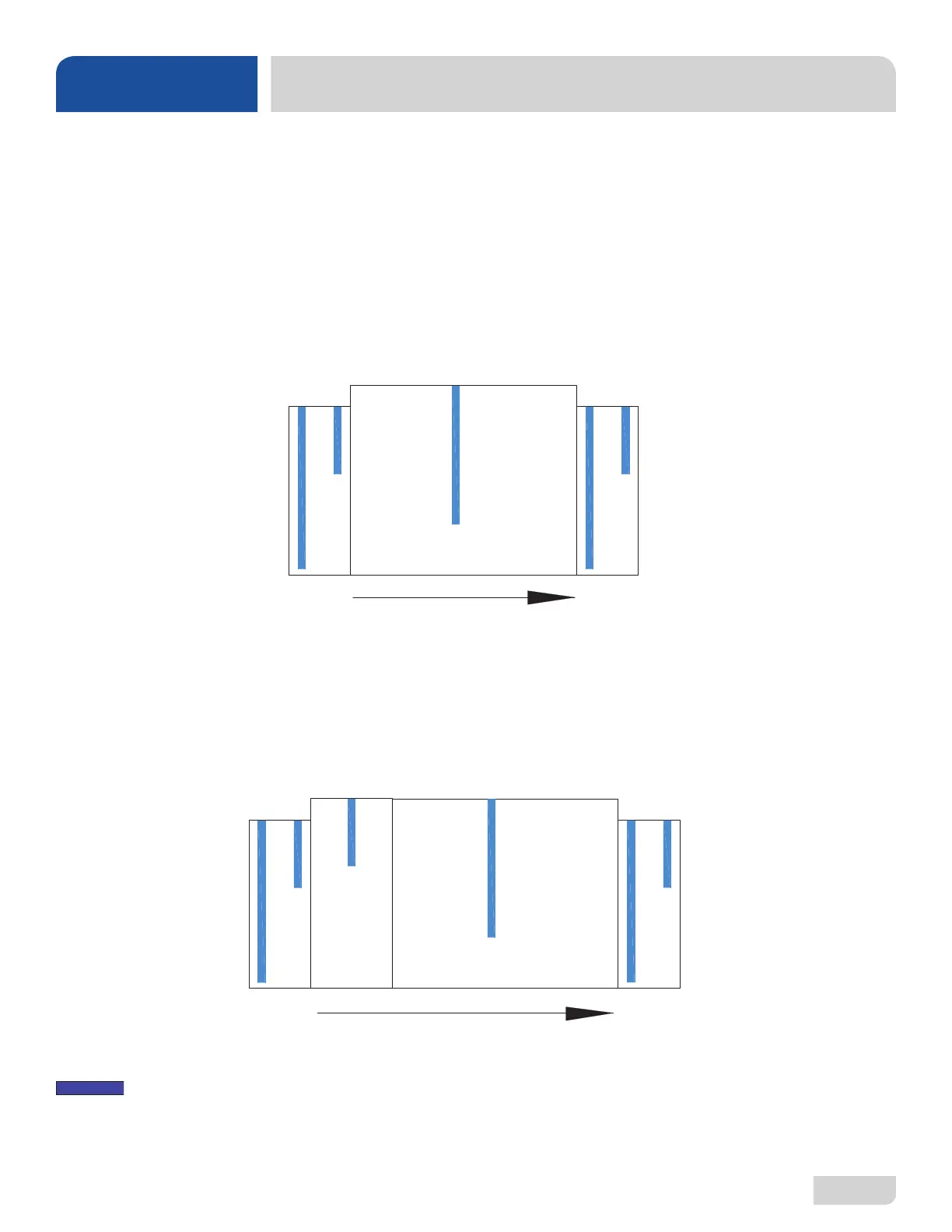

Decals mark the curtain locations inside the machine, starting at the load end and ending at the unload end. The
illustrations below (Left-to-Right machines shown, Right-to-Left are mirrored) indicate the curtain size to be placed on the
curtain hooks provided. If any curtain components are missing, they MUST be obtained and installed before operation.
INSTALLATION
CURTAINS
44/54
66/76/80/90
CE & CS
L R
21” 12"12"24.5"
LSXL
RL
24.5"
XL S
21” 12"12"24.5"
LSXL
24.5"
XL S
12"
S
See Curtains/Conveyor Switch page for part numbers.
