07610-003-60-98-L
67

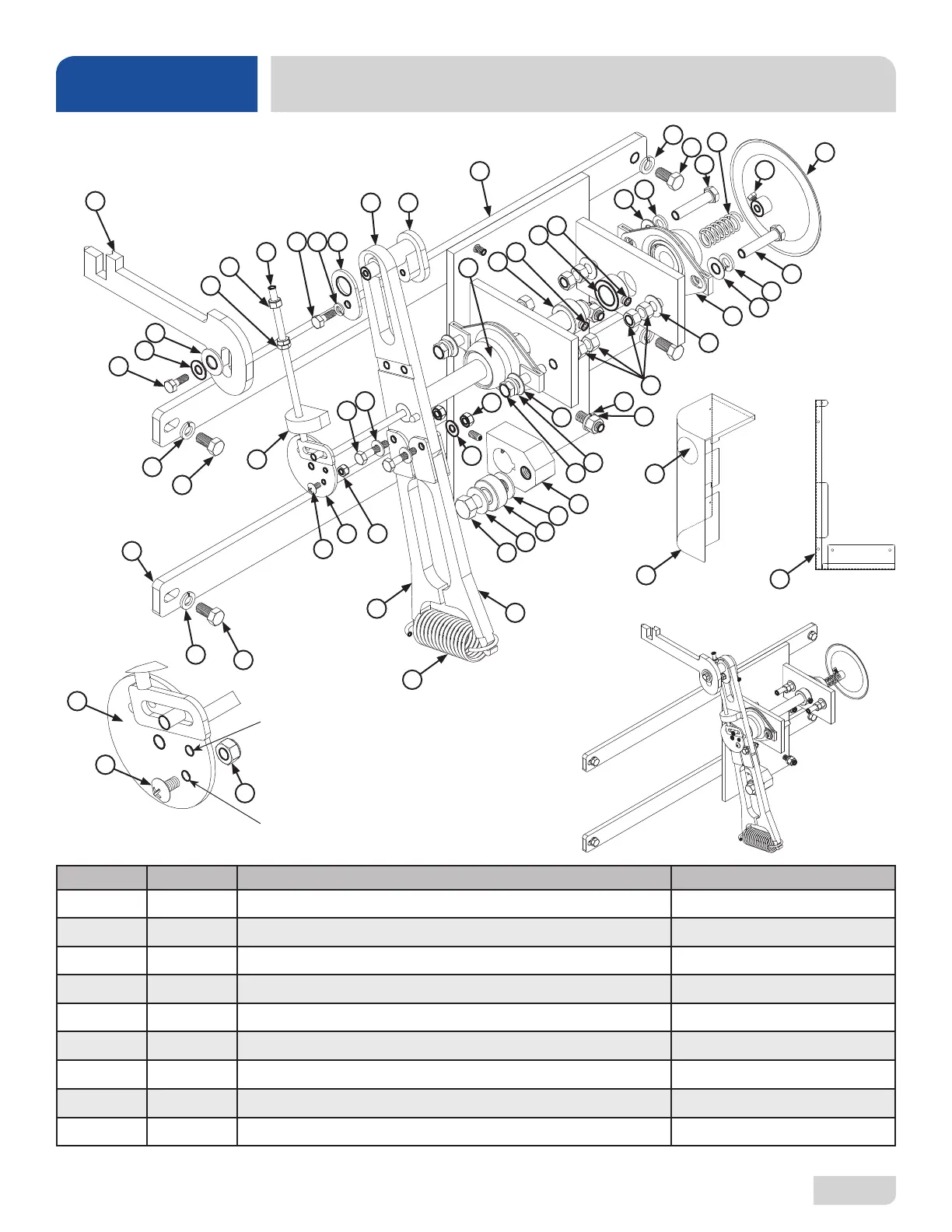

PARTS
DRIVE ASSEMBLY
30
25
17
5
29 28 27
35 26
1
7
6
6
14
32
11
24
2
32
6
7
8
13
10
13
10
7
12
8
6
12
7
6
32
17
16
19
21
9
21
22
3
18
3
16
15
34
4
33
14
6
1
23
14
6
21
31
29
33
4
34
ASSEMBLED VIEW
Complete Drive Assembly
05700-003-60-69
37
36
38
Part numbers 33 and 34 are assembled in this hole for all
low-temperature (chemical-sanitizing) machines.
Part numbers 33 and 34 are assembled in this hole for all
high-temperature (hot-water-sanitizing) machines.
(This is the hole in the farthest clockwise position.)
ITEM QTY DESCRIPTION PART NUMBER
1 1 Mounting Bracket Drive Motor 05700-031-73-56
2 1 Adjuster, Handle 05700-021-72-28
3 2 Coupling & Expansion Legs 05700-021-67-50
4 1 Adjuster, Crank Assembly 05700-021-69-95
5 1 Adjuster, Scotch Yoke 05700-021-69-76
6 12 Lockwasher, 3/8" 05311-276-01-00
7 8 Flat Washer, 3/8” 05311-176-01-00
8 2 Block, Pillow 03120-021-71-87
9 1 Bearing, Roller 03120-011-71-81
To Next Page
