07610-003-60-98-L
45

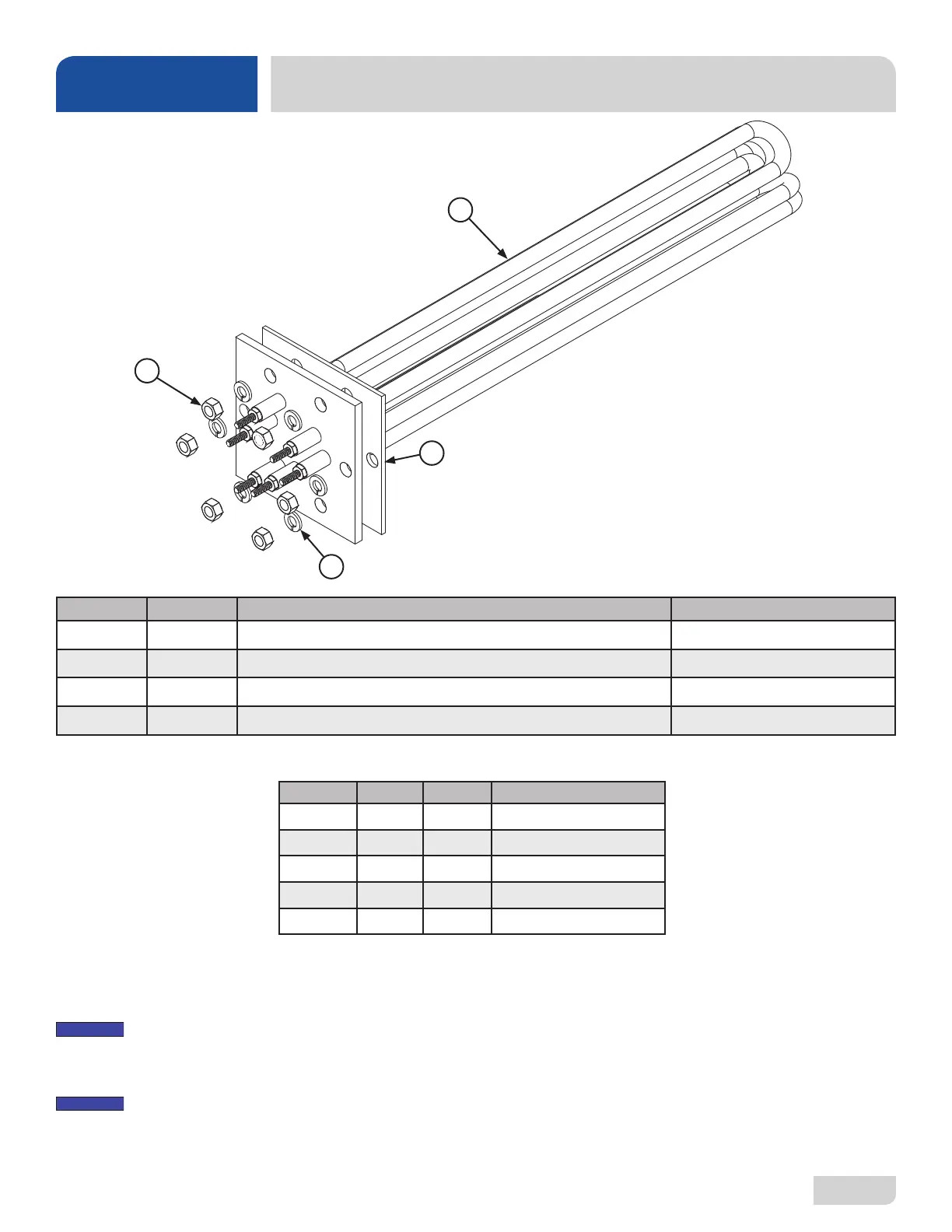

ITEM QTY DESCRIPTION PART NUMBER
1 5 5/16-18 Hex Nut 05310-275-01-00
2 1 Heater See table below.
3 1 Heater Gasket 05330-200-02-70
4 2 5/16" Lockwasher 05311-275-01-00
1
2
3
4
PARTS
HEATER BOX
VOLTS kW PHASE PART NUMBER
208 18 1 04540-121-79-30
230 18 1 04540-121-79-31
208 18 3 04540-121-79-30
230 18 3 04540-121-79-31
460 18 3 04540-121-79-32
*Steam models do not use electric heaters.
When replacing a heater, it is HIGHLY recommended that the heater gasket be changed as well. Once
installed, gaskets become compressed and are subjected to extreme temperature changes. Replacing the
gasket when replacing the heater can prevent future leaks.
The nuts used to secure the heater to the tub should be torqued to 16 in-lbs. After tightening, the unit should be
allowed to heat-up and operate normally for approximately 30 minutes. Secure power to the machine and check
the nuts once more to ensure that they are torqued to 16 in-lbs.
