Jacobsen AR-3 User Manual

2-2 4181384 First Edition
SPECIFICATIONS AND GENERAL INFORMATION
2
Mower Identification
See Figure 2-1.

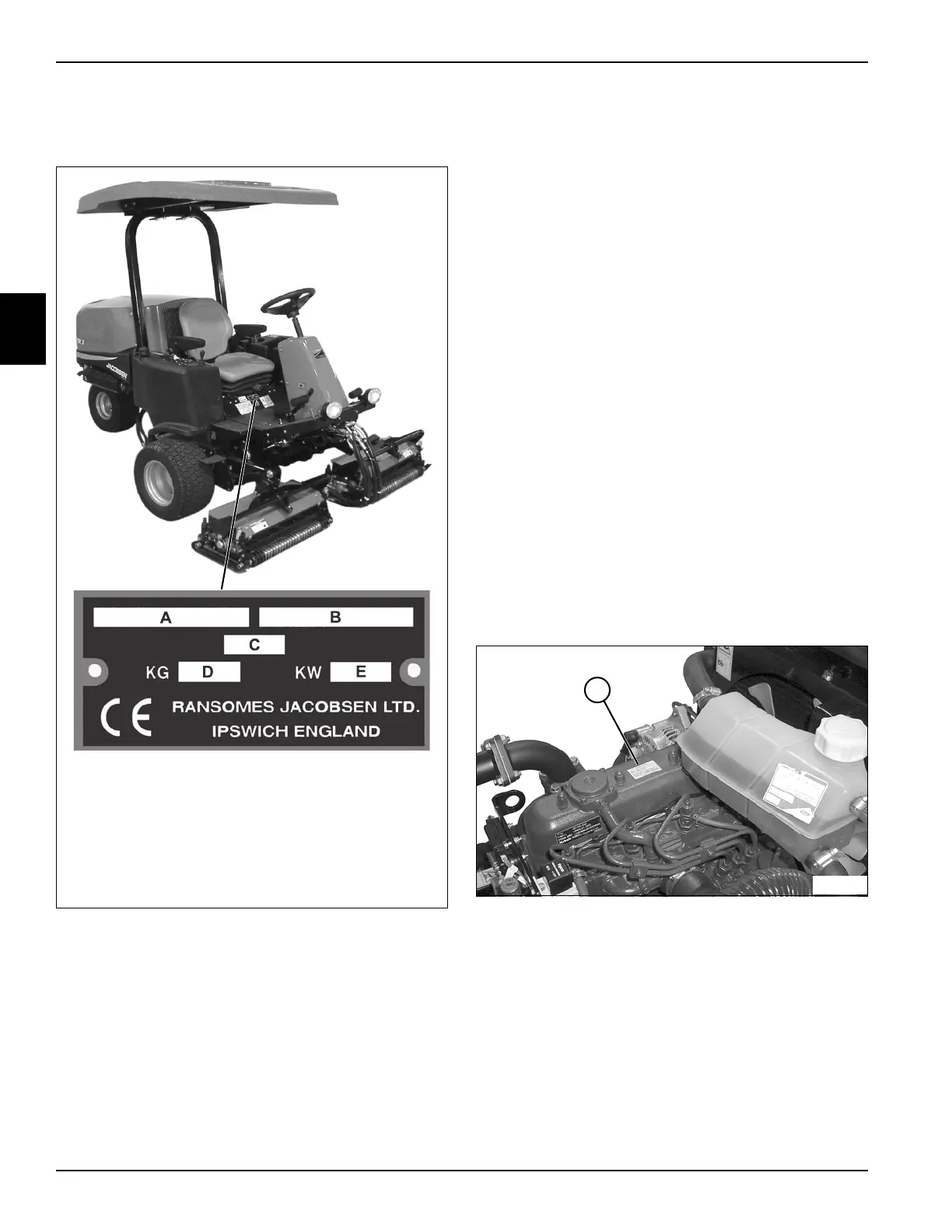

Figure 2-1
Model Identification Number
AR-3
30001 and 30002
Trim and Fine-Cut Mower (72 in. [1.83 m] cutting width)
with three rotary cutting units, 32.8 hp (24.5 kW),
3-cylinder, turbocharged diesel engine (Kubota
®
), and
hydrostatic transmission.
TR-3
30001 and 30002
Trim and Fine-Cut Mower (72 in. [1.83 m] cutting width)
with three, seven-bladed reel cutting units, 26 hp
(19.4 kW), 3-cylinder, naturally-aspirated diesel engine
(Kubota
®
), and hydrostatic transmission.
Serial Number
An identification plate like the one shown, listing the
serial number, is attached to the operator platform.
Always provide the serial number of the unit when
ordering replacement parts or requesting service
information.
Engine Serial Number
See Figure 2-2.
Figure 2-2
The engine serial number (1) is located on a label
attached to the top of the rocker arm cover.
Optional Machine Accessories
This manual is structured to cover all basic machine
components and repair. The addition of accessories can
affect certain troubleshooting, adjustment, and repair
procedures.
TN0988, TN1226
A—Machine Name
B—Serial Number
C—Year of Manufacture
D—Machine Weight
E—Engine Power
TN0990
1

Jacobsen AR-3 Specifications

General

Brand	Jacobsen
Model	AR-3
Category	Lawn Mower
Language	English
