2-4 4181384 First Edition
SPECIFICATIONS AND GENERAL INFORMATION
2

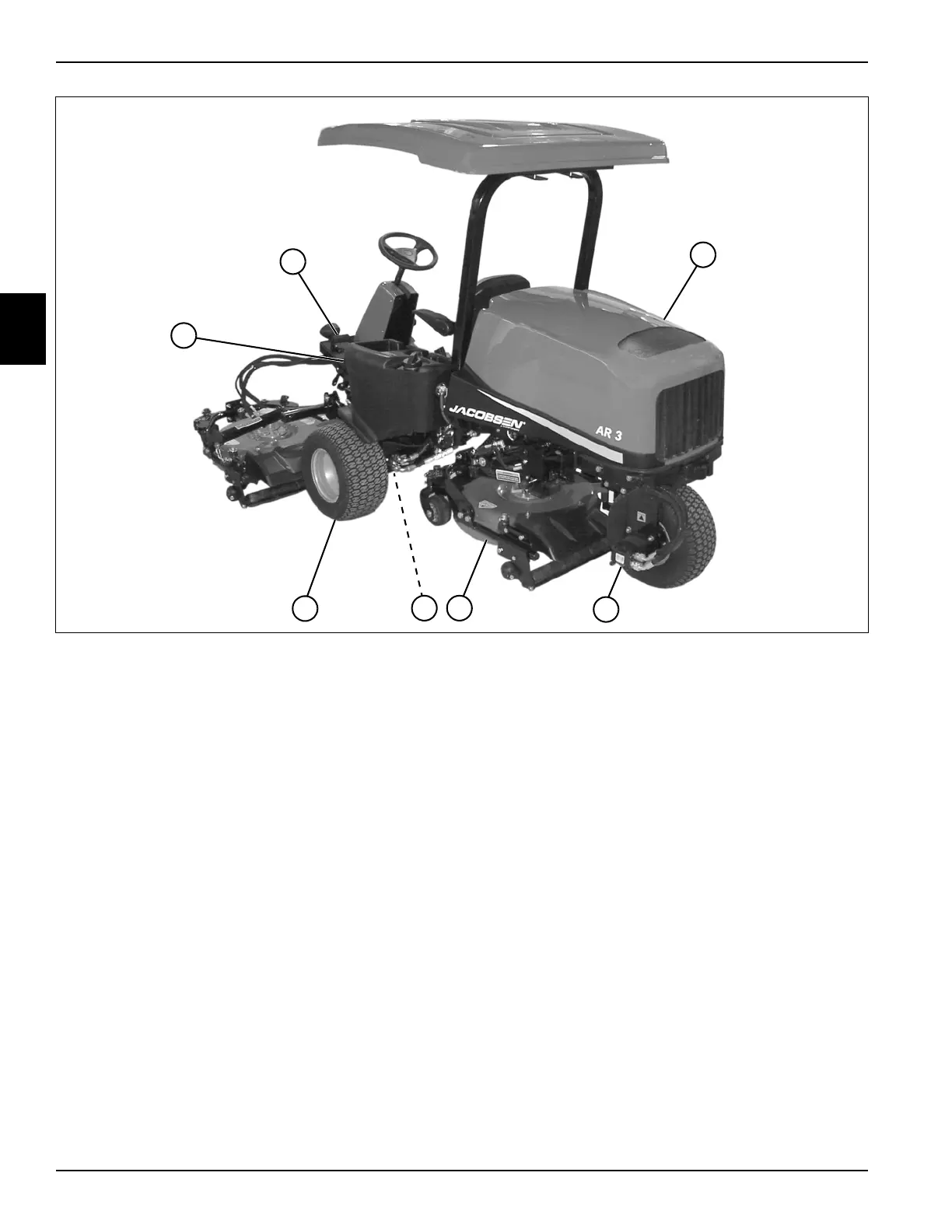

Figure 2-4: Component Location—Left Side
1 Foot Support 5 Left Front Wheel Motor
2 Hood 6 Front Wheel (2)
3 Rear Wheel Motor 7 Fuel Tank
4 Rear (Center) Cutting Unit
2
7
4
6
TN0992
1
3
5
