15. Remove two screws (26), lock washers (27), flat
washers (28), and washers or spacers (29).
16. Move fuse bracket (25) aside.
17. Remove radiator/hydraulic oil cooler. (See
“Radiator/Hydraulic Oil Cooler” on page 3-13.)
18. Remove muffler and down pipe. (See “Muffler” on
page 3-9.)
!
WARNING
19. Attach a suitable lifting device to the engine.

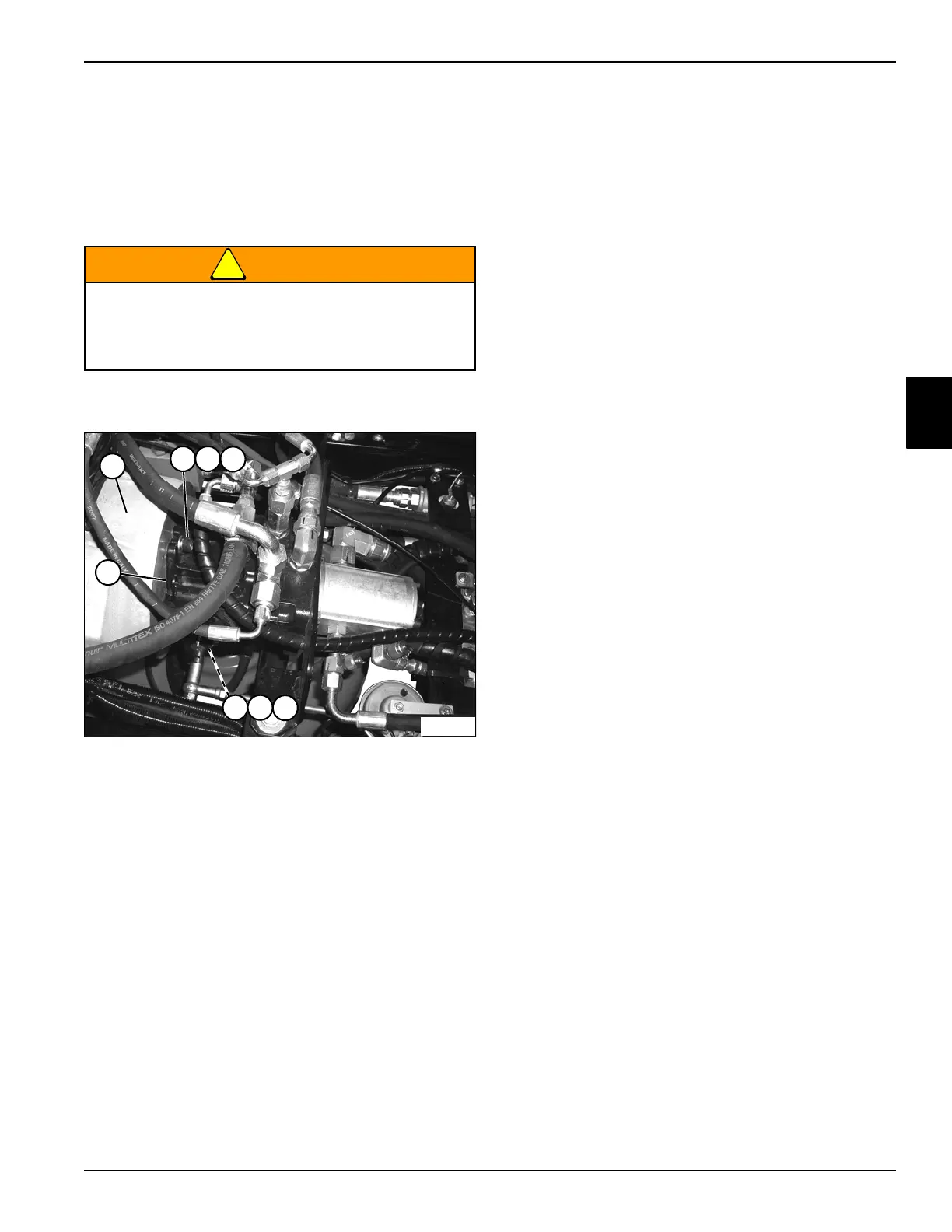

Figure 3-40
20. Support the front of the pump assembly (34).
21. Remove two socket-head screws (31), lock washers
(32), and flat washers (33) from the pump (34) and
bell housing (30).
The engine weighs approximately 214 lb (97 kg).
Prevent personal injury. Use a properly rated
lifting device. Always be sure the load is
balanced before lifting.
TN1208
31 32
34
30
~
33
31 32
33
