Jacobsen AR-3 User Manual

3-22 4181384 First Edition
ENGINE
3

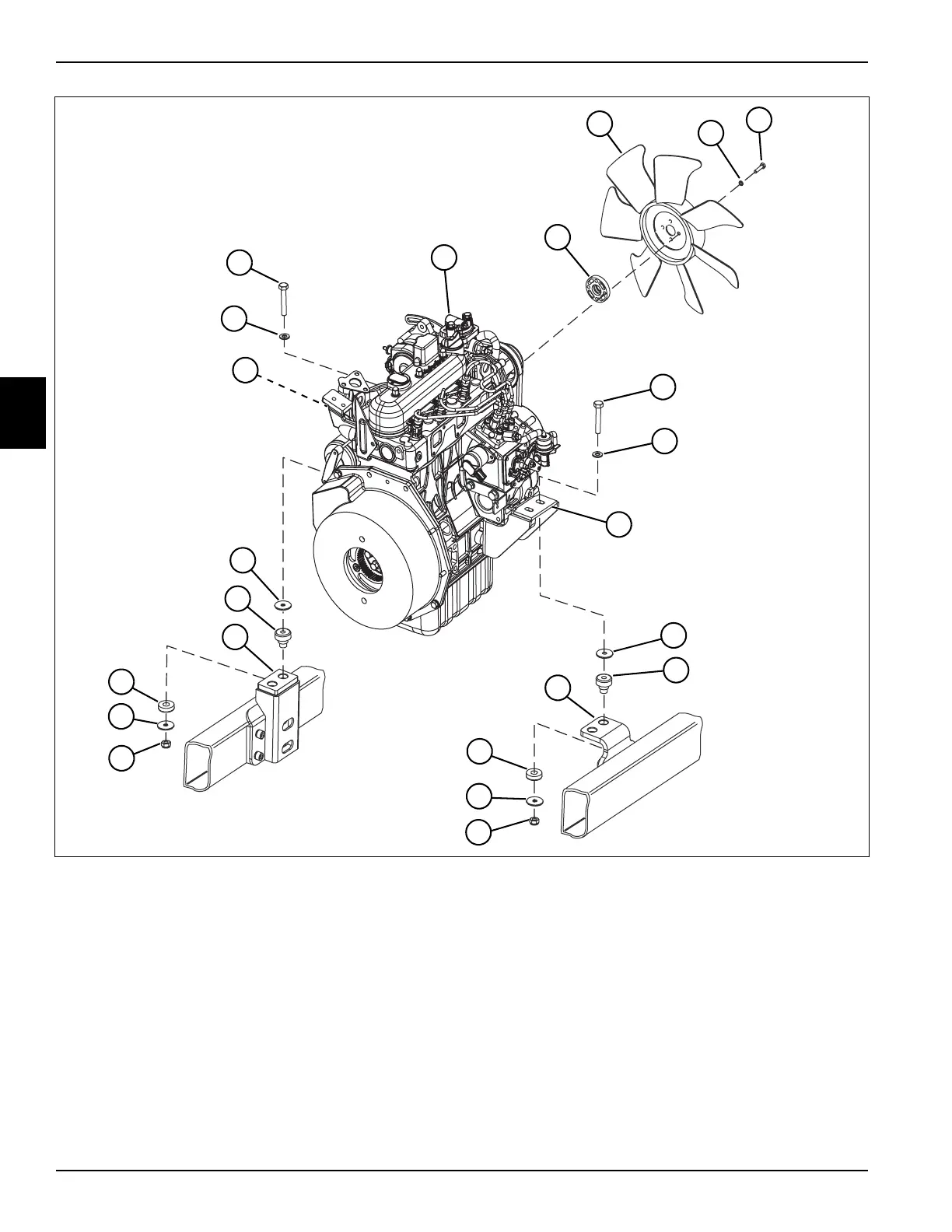

Figure 3-41
22. Remove four screws (42) and lock washers (41), and
remove fan (40) and spacer (39) from engine (38).
23. Remove two lock nuts (49), flat washers (36 and 48),
and screws (35) from engine mounts (37 and 43).
24. Remove the engine (38) from the chassis.
25. Remove two isolation mounts (45) and flat washers
(44) from the lower engine mounts (46 and 50).
TN1205
~
35
36
38
42
35
41
40
37
39
36
43
44
45
46
47
48
49
49
48
47
50
45
44
