ADJUSTMENTS 6
en-68

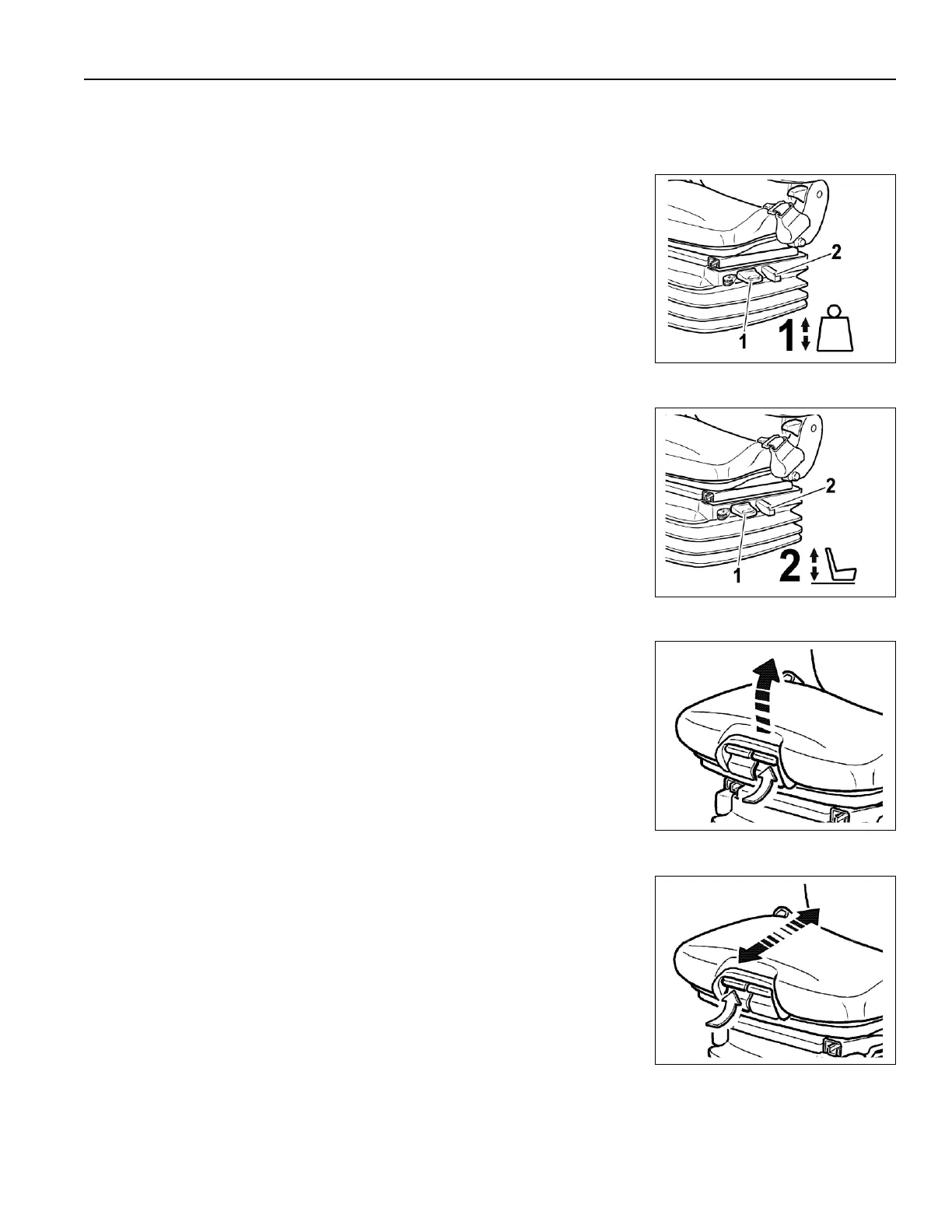

6.10 AIR SUSPENSION SEAT (GRAMMER MSG95 -721) ______________________________
6.10.1 WEIGHT ADJUSTMENT ____________________________________________________
The seat should be adjusted for the driver's weight with the driver sitting on the
seat. The adjustment is made by pulling out or pushing in the actuator lever (1)
until the green marking is visible in the weight-and-height indicator (2).
• To prevent injury to yourself, the setting for the driver's weight must be
checked and adjusted as necessary before the vehicle is driven.
6.10.2 HEIGHT ADJUSTMENT ____________________________________________________
The seat height can be altered by fully pulling out or pressing in the actuator lever
(1).
• The green marking in the weight-and-height indicator (2) should be visible.
• In order to avoid damage, do not operate compressor for more than 1
minute.
6.10.3 SEAT PAN ANGLE ADJUSTMENT (OPTION)___________________________________
The angle of the seat pan can be individually adjusted.
To adjust the angle of the seat pan, lift the L/H handle (see arrow). By exerting
pressure on or off the seat pan it can be moved to the desired angle position.
6.10.4 SEAT DEPTH ADJUSTMENT (OPTION) _______________________________________
The depth of the seat pan can be individually adjusted.
To adjust the depth of the seat cushion, lift the R/H handle (see arrow). By moving
the seat cushion backwards or forwards the desired seating position can be
reached.
