Jacobsen HR800 Service Manual

ADJUSTMENTS 6
en-66

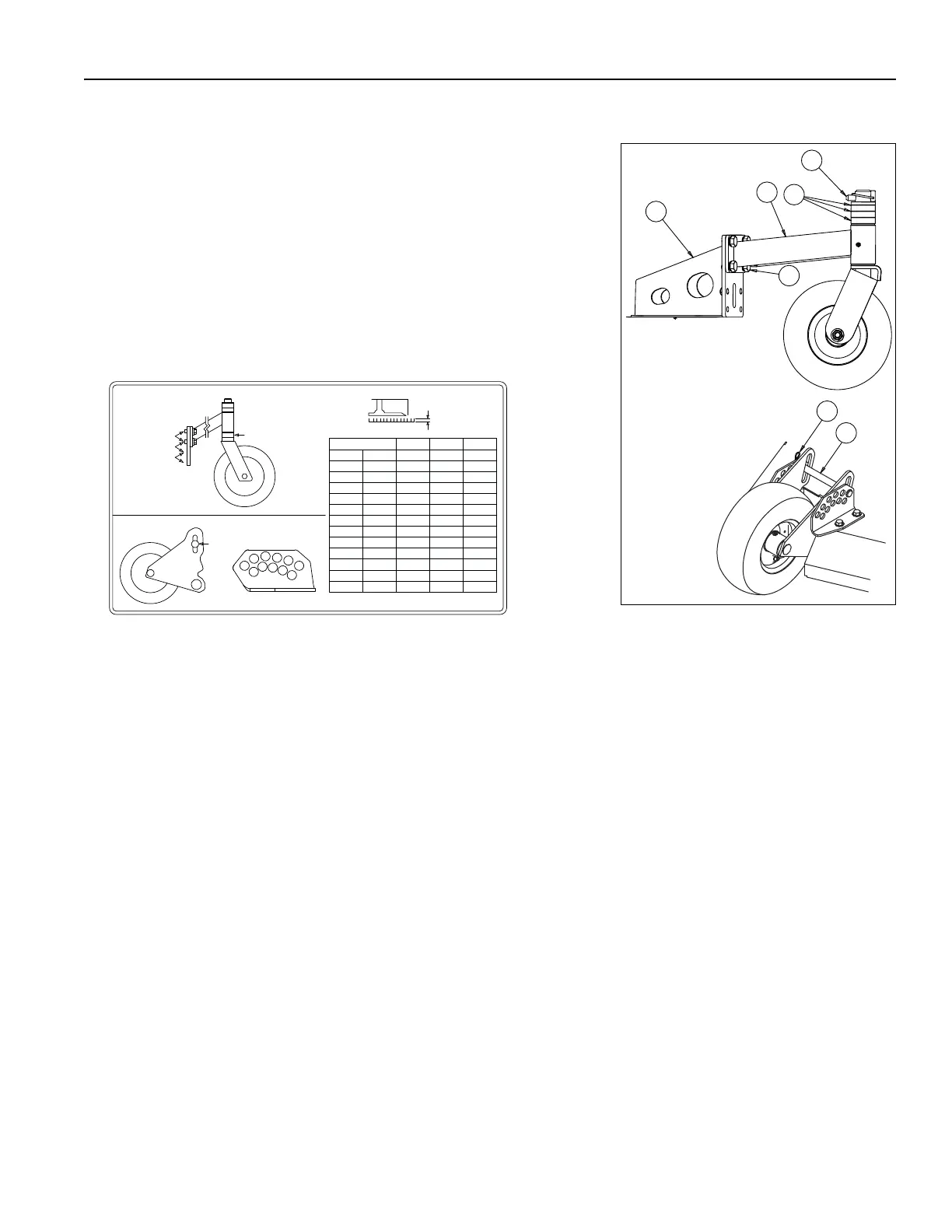

6.8 HEIGHT OF CUT ADJUSTMENT (WING CUTTER DECK) __________________________
1. Raise the deck to mid position.
2. Engage transport lock
3. Remove the quick pin (A) from the top of the caster wheel pivot spindle
4. Remove the caster wheel from caster support (B).
5. Select either Position 1 or Position 2 for wheel mounting bracket (C). To
change, remove (4) mounting bolts (D), move to the alternate location
and bolt in place.
6. Place the selected number of spacers (E) below the caster support.
Place the remaining spacers above the caster support.
7. Replace the quick pin.
8. Place pin (F) into the proper hole of bracket for the selected height of
cut and fit quick pin (G).
A
B
D
C
E
F
G
K
K
X
X
1-2-3S
S
1.0 IN
1.5 IN
2.0 IN
2.5 IN
3.0 IN
3.0 IN
3.5 IN
4.0 IN
4.5 IN
5.0 IN
5.0 IN
5.5 IN
6.0 IN
25 MM A
A
10
28 MM B
B
11
50 MM C
C
12
63 MM D
D
1 3
76 MM E
E
14
76 MM E 2 0
88 MM F
F
21
101 MM G
G
22
114 MM H
H
2 3
127 MM J
J
24
127 MM J 3
1
2
3
0
140 MM K
K
3 1
152 MM L
L
3 2
4339908
