4 CONTROLS
en-51

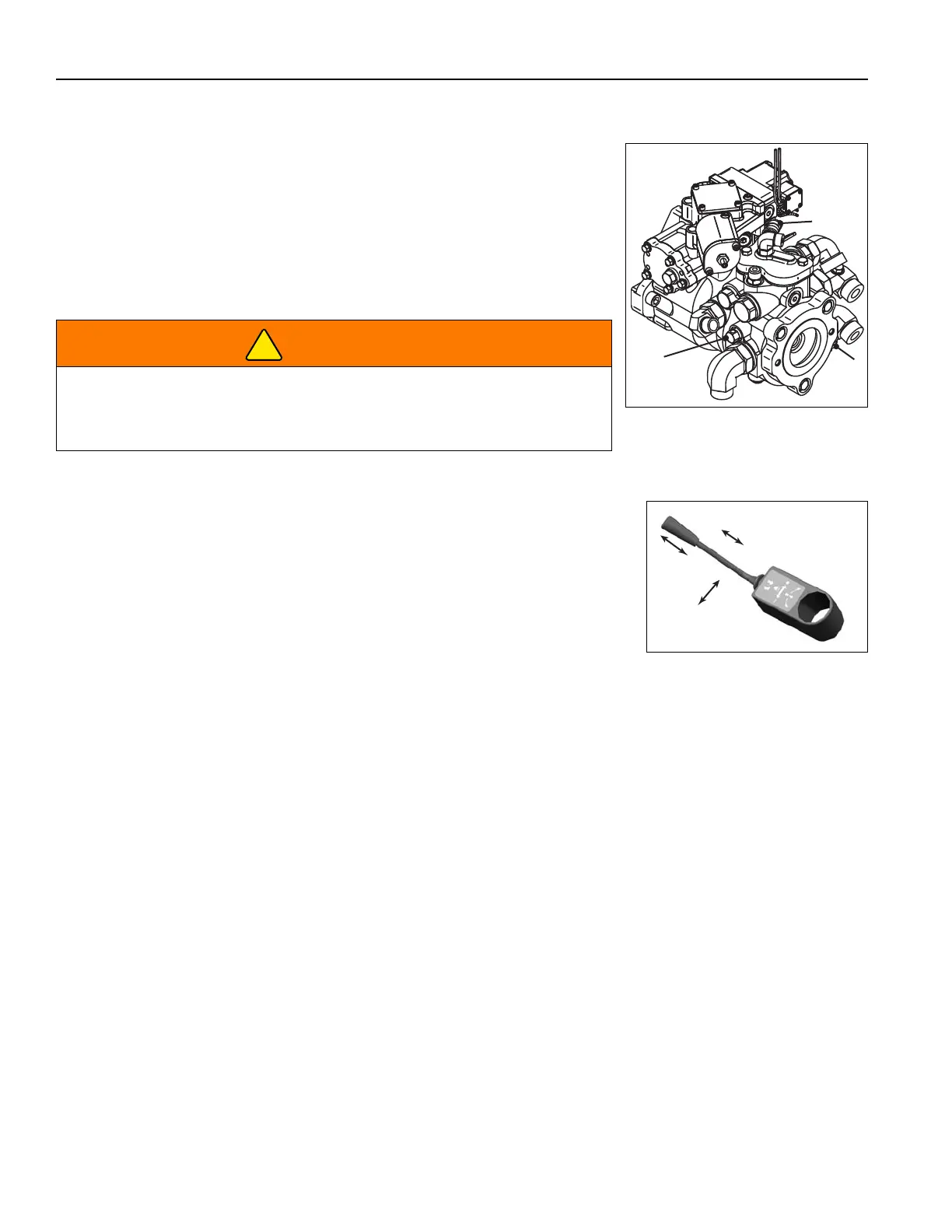

4.7 TOW VALVE______________________________________________________________
The Tow valve is situated on the right hand side of the transmission pump.
1. To push the machine, disengage the parking brake, see section 5.8
2. Turn screw (A) located on the right side of the transmission pump three
complete turns counterclockwise. Set the steering wheel so that the rear
wheels are pointing straight ahead.
3. After pushing the machine, return the parking brake valve, see section 5.8
to its normal position and screw (A) on the pump to its operating position.
4.8 LIGHTING KIT (OPTIONAL) _________________________________________________
Lighting Control Stalk
A Push away from operator to turn the dipped beam head lights on.
B Pull toward operator to flash the headlights.
C Move the stalk up to indicate right turn.
D Move the stalk down to indicate left turn.
E Push the stalk in to sound horn.
NOTE: The Side lights will operate when the ignition is in the run position
When the lighting kit is fitted, a brake light function is available. Rear view mirrors must be fitted If brake lights are used.
WARNING
THE FREE WHEEL FACILITY IS FOR RECOVERY PURPOSES ONLY.
Do not tow the machine for more than a few meters, or allow the machine to
free wheel down slopes even when unloading down ramps.
A
B
C
