Page 11
ENGLISH
Jandy
®
Pro Series TruClear
™
Chlorine Generating System
|
Installation & Operation Manual
5. With the Power Pack in place, mark the position of
the bottom two holes.
6. Remove the Power Pack, drill the bottom two holes
and place the screw anchors in position.
7. Mount the Power Pack by hanging it from the top
two screws already in place, then drive in the two
bottom screws to complete the installation.
WARNING
To avoid property damage, serious injury or death, do
not operate the electrolytic cell without water circulation
or if cell housing is damaged or improperly assembled.
A buildup of flammable gases which can result in
FIRE OR EXPLOSION.
The power pack must be
interconnected with the pool pump motor power
source to ensure that the chlorinator only operates
when the pool pump is running.
The flow sensor
feature of the Jandy TruClear is intended to be used
as a backup only and should not be used as the sole
source of flow detection.

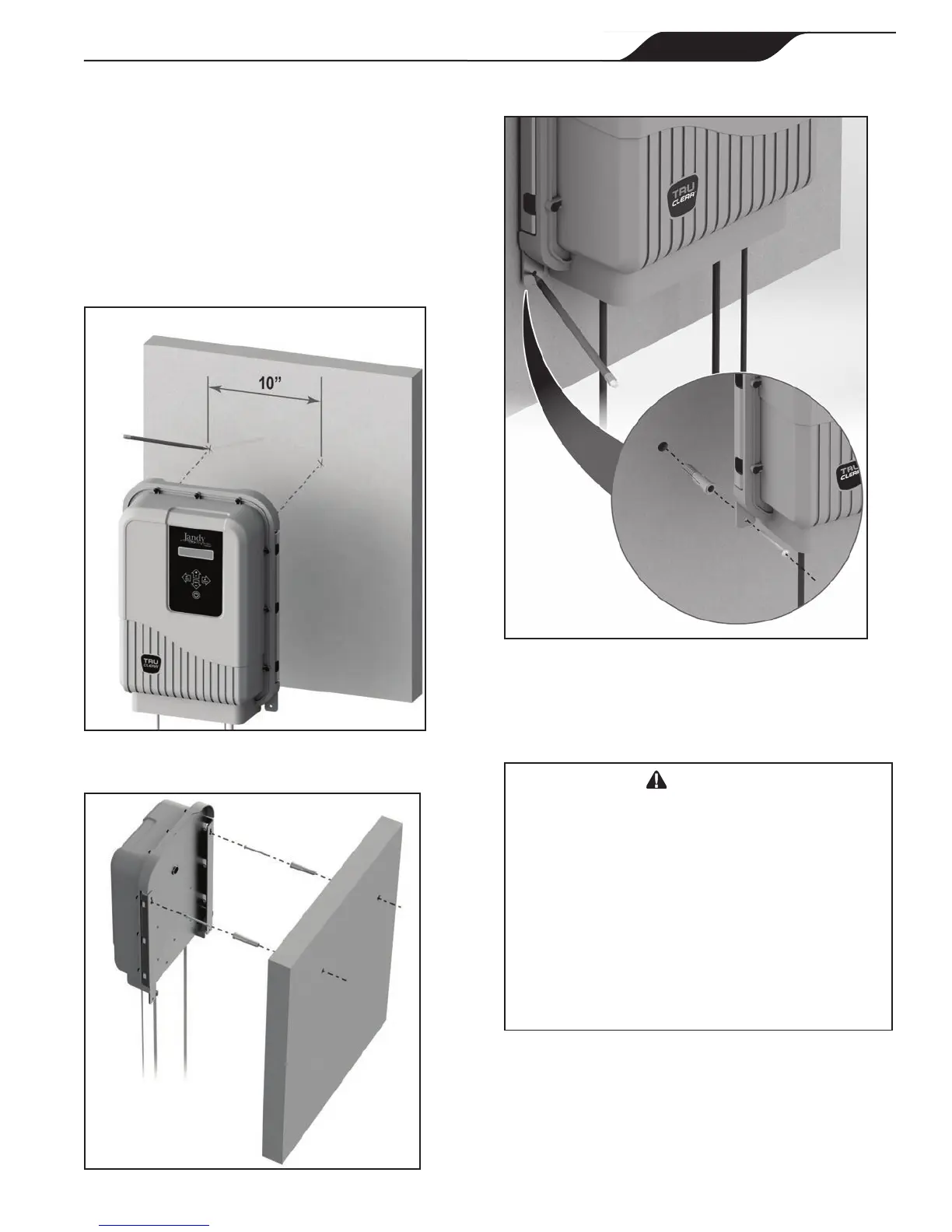

3.3 Installing the Power Pack
1. Ensure placement of the cell and the power pack
will meet all the installation requirements outlined
in Section 3.2.
2. Determine the desired location on the wall to mount
the Power Pack.
3. Mark and drill the top two holes in
the wall, using
the template on the Quick Start Guide. The distance
from the center of the two holes is 10”. Use a level
and the template to locate the exact position of the
holes.
4.
Drive the
screws into the holes and hang the Power
Pack from the top two holes of the backplate
.
To Next Page
