ENGLISH
Jandy
®
Pro Series TruClear
™
Chlorine Generating System
|
Installation & Operation Manual
Section 2. General Description

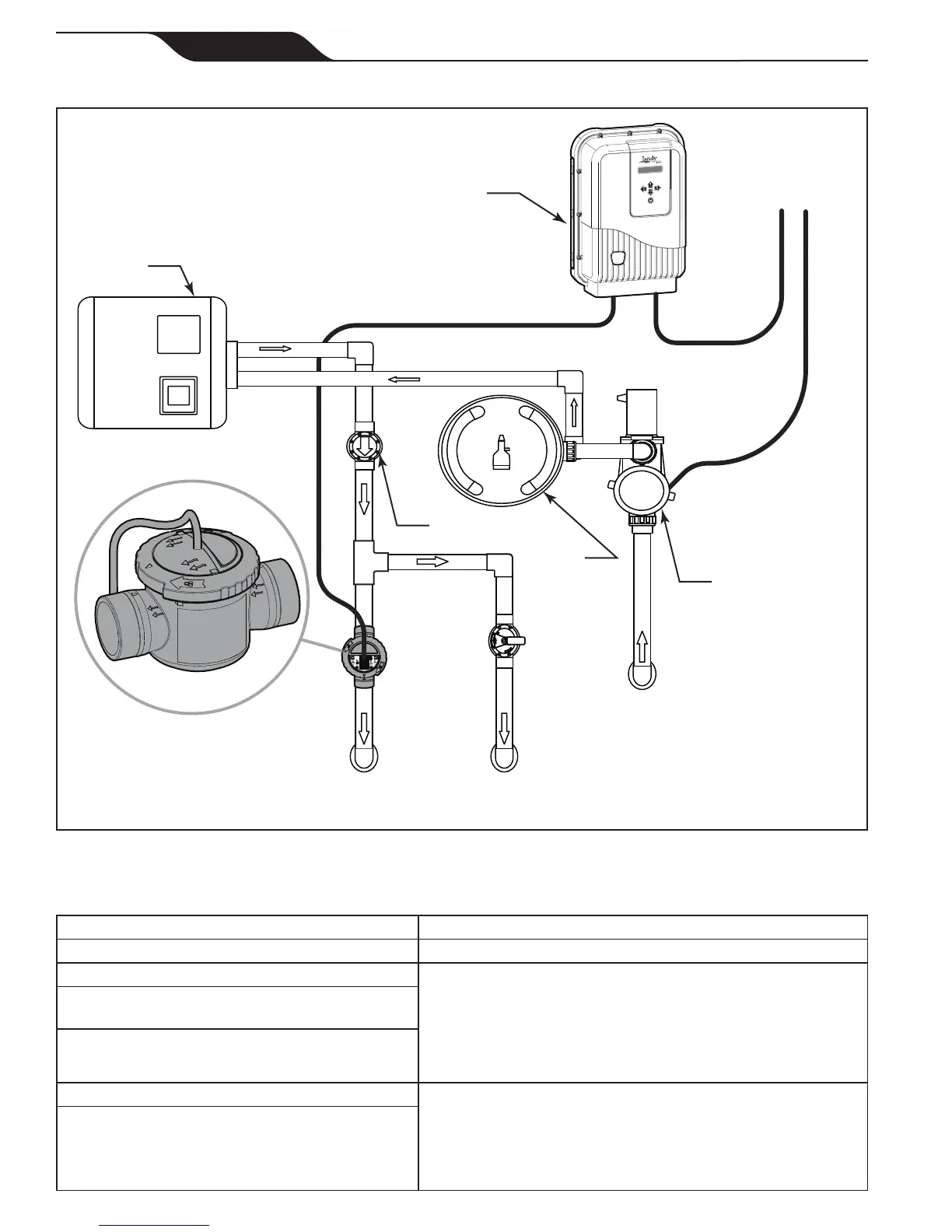

Figure 1. Example of Installation
2.1 Product Speci cations
Maximum Operating Pressure: 50 psi Input Freq: 60 Hz
Minimum Flow Rate: 76 lpm (20 gpm) Output Voltage: 25V DC (max)
Required Salt Level: 3.0 gpl (3,000 ppm) Dimensions:
Power Pack (L x W x H):
25.4 cm x 11.4 cm x 33 cm (10 in. x 4.5 in. x 13 in.)
Electrolytic Cell (L x W x H):
16.5 cm x 14 cm x 30.5 cm (6.5 in. x 5.5 in. x 12 in.)
Maximum water volume treated:
132,000 L (35,000 gal.)
Chlorine Output: 0.42 kg (0.93 lbs) per day
Input Voltages: 240 VAC
Weight:
Power Pack: 3.2 kg. (7 lbs)
Electrolytic Cell: 0.9 kg (2 lbs)
Input Current @ 240 VAC: ~1 A
HEATER
CELL
FILTER
POWER PACK
TO COMMON
POWER SOURCE
CHECK VALVE
RETURN WATER FEATURE /
IN FLOOR CLEANER
INTAKE
PUMP
ENGLISH
The cell must be installed
as the last piece of equipment in
the circulation plumbing system
just before the pool.

Jandy TruClear Specifications

General

Type	Saltwater Chlorinator
Cell Material	Titanium
Pool Size Capacity	Up to 40, 000 gallons
Control Interface	Digital
Power Supply	120/240 VAC
Installation	Inline plumbing installation
Salinity Range	2500 - 4500 ppm
Plumbing Size	2 inch
