13
UMG 509
Installation
Position of installation
The UMG 509 is suitable for integration into fixed and
weatherproof switch panels. Conductive switch panels
must be earthed.
Mounting position
To ensure adequate ventilation, the UMG 509 must
be installed vertically. There should be separation
above and below of at least 50mm with 20mm space
to the sides.
Front panel section
Cut-out size:
138
+0.8
x 138
+0.8
mm.
m
Failure to meet the minimum clearances
can destroy the UMG 509 at high ambient
temperatures!

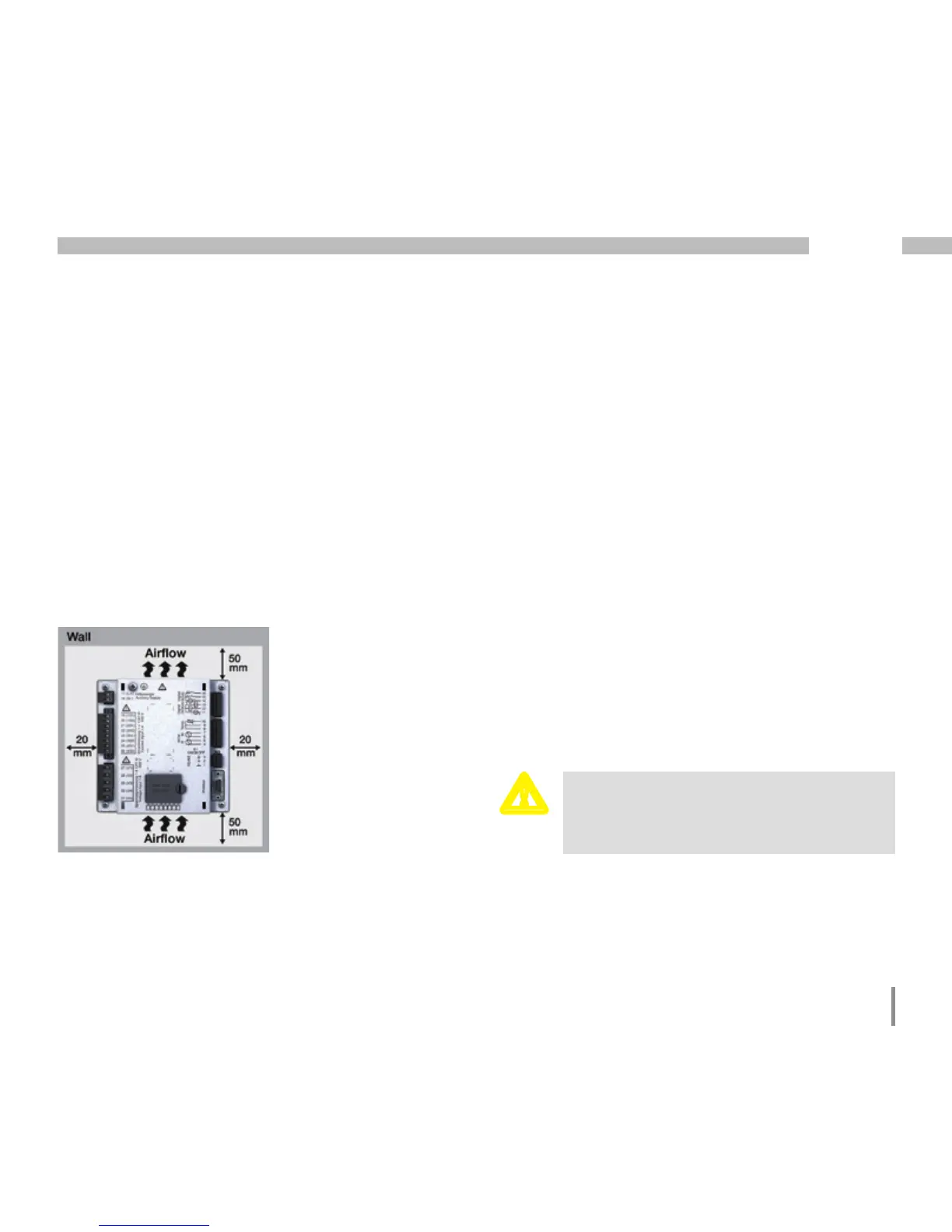

Fig. mounting
position UMG 509
(View from rear)
