40
UMG 509
Profibus interface
This 9-pole D-sub receptacle RS485 interface supports
the Profibus DP V0 slave protocol.
For the simple connection of inbound and outbound
bus wiring, it should be connected to the UMG 509 via
a Profibus connector.
For the connection, we recommend a 9-pole Profibus
connector, e.g. type "SUBCON-Plus-ProfiB/AX/SC"
from Phoenix, item number 2744380. (Janitza item no:
13.10.539)
C
When using the device in a Profibus
system, the device address must be set
using the configuration menu.
D-sub
receptacle for
Profibus

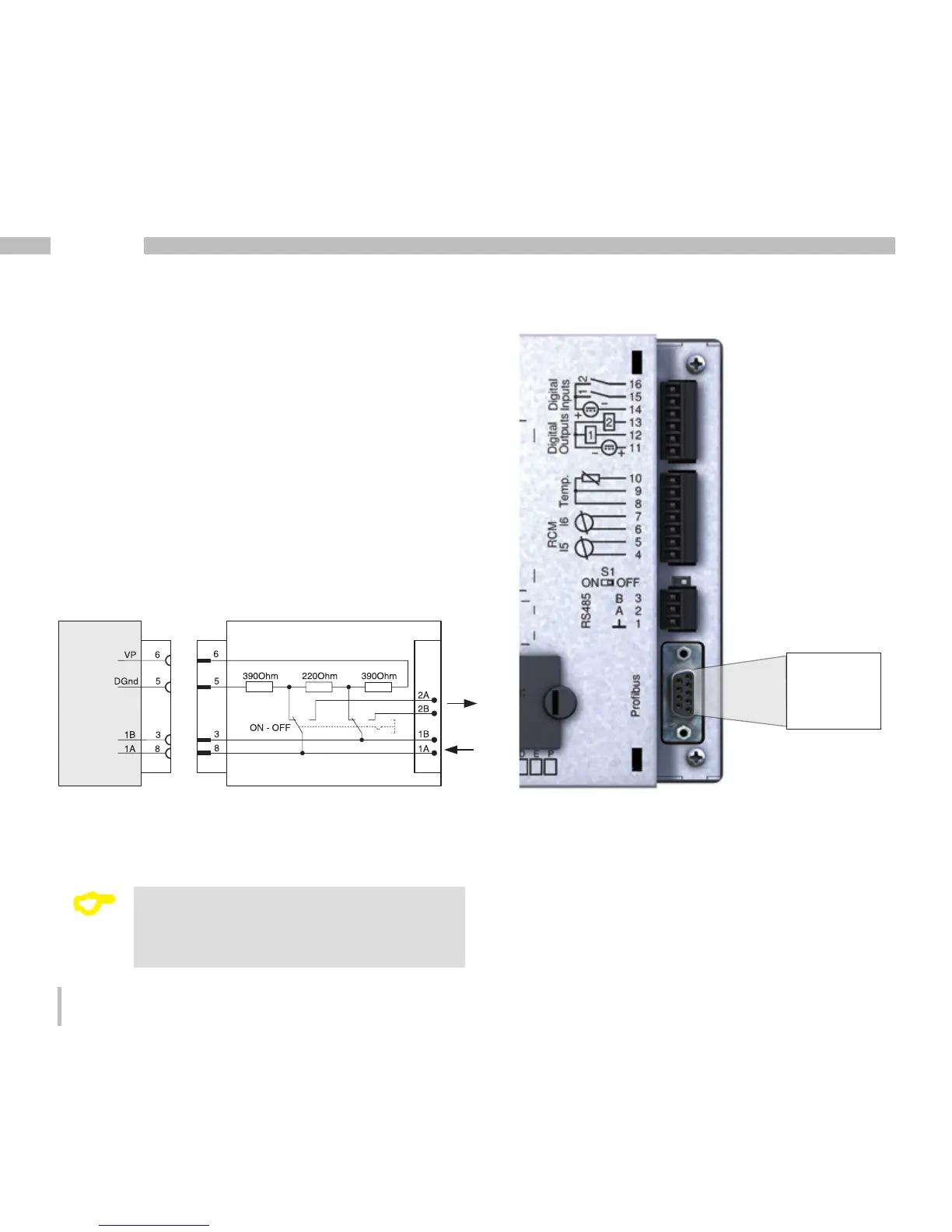

Fig. UMG 509 with D-sub
receptacle for Profibus
(View from rear).
UMG 509
Profibus
Profibus connector (external)
Terminating resistors
Screw-type terminals
Other
profibus
stations
D-Sub,
9 pin,
connec-
tor
D-Sub,
9 pin,
socket
Fig. Profibus connector with termination resistors.
