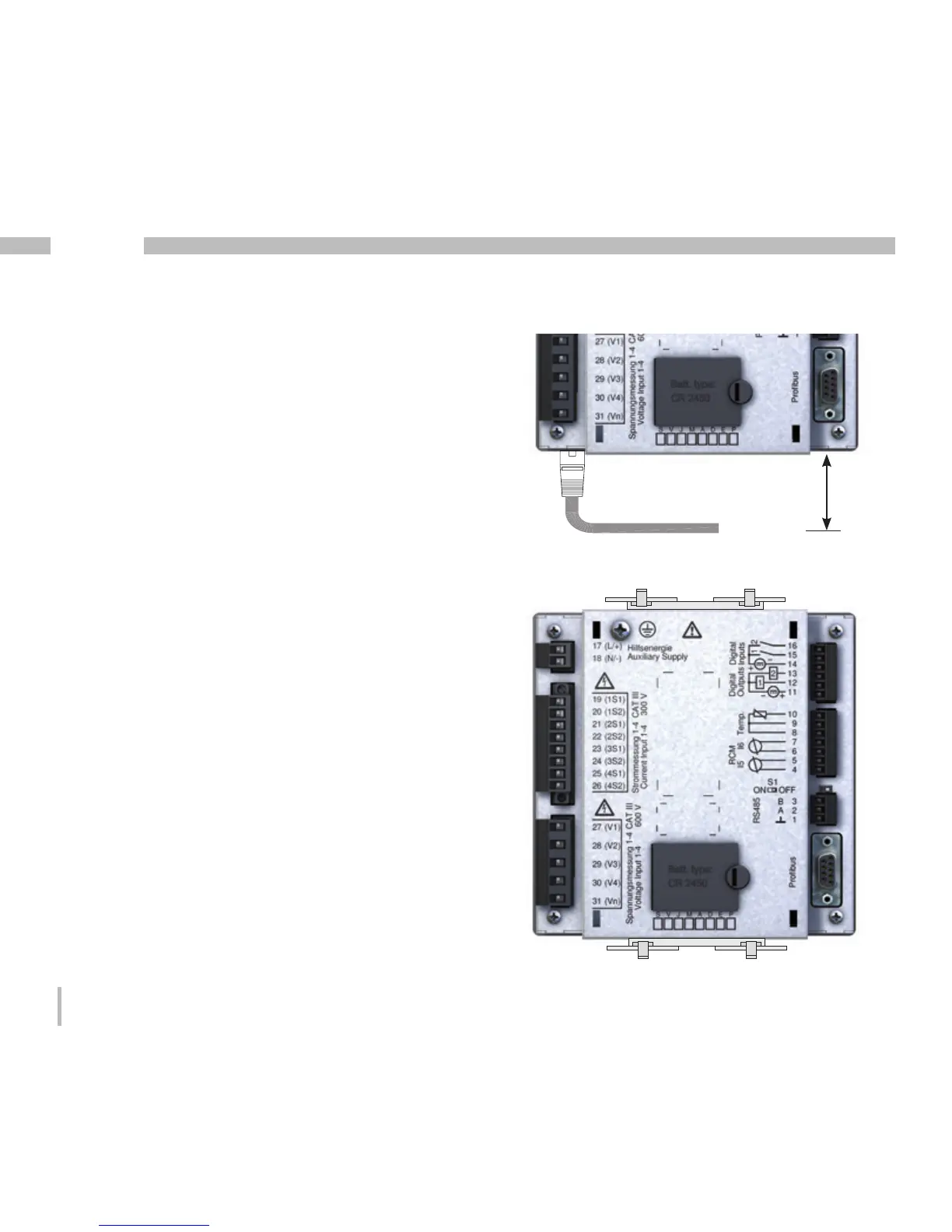

The Ethernet connection of the UMG 509 is on the bottom
of the housing.
Depending on the bending radius of the Ethernet cable
and connector type, you must install a connection area
below the UMG 509.
The connection area below the UMG 509 should not
be smaller than 50 mm.
Mounting
The UMG 509 is mounted in the switchboard with two
mounting clips that are installed at the top and bottom
of the device.
Ethernet connection
Patch cable
50 mm
