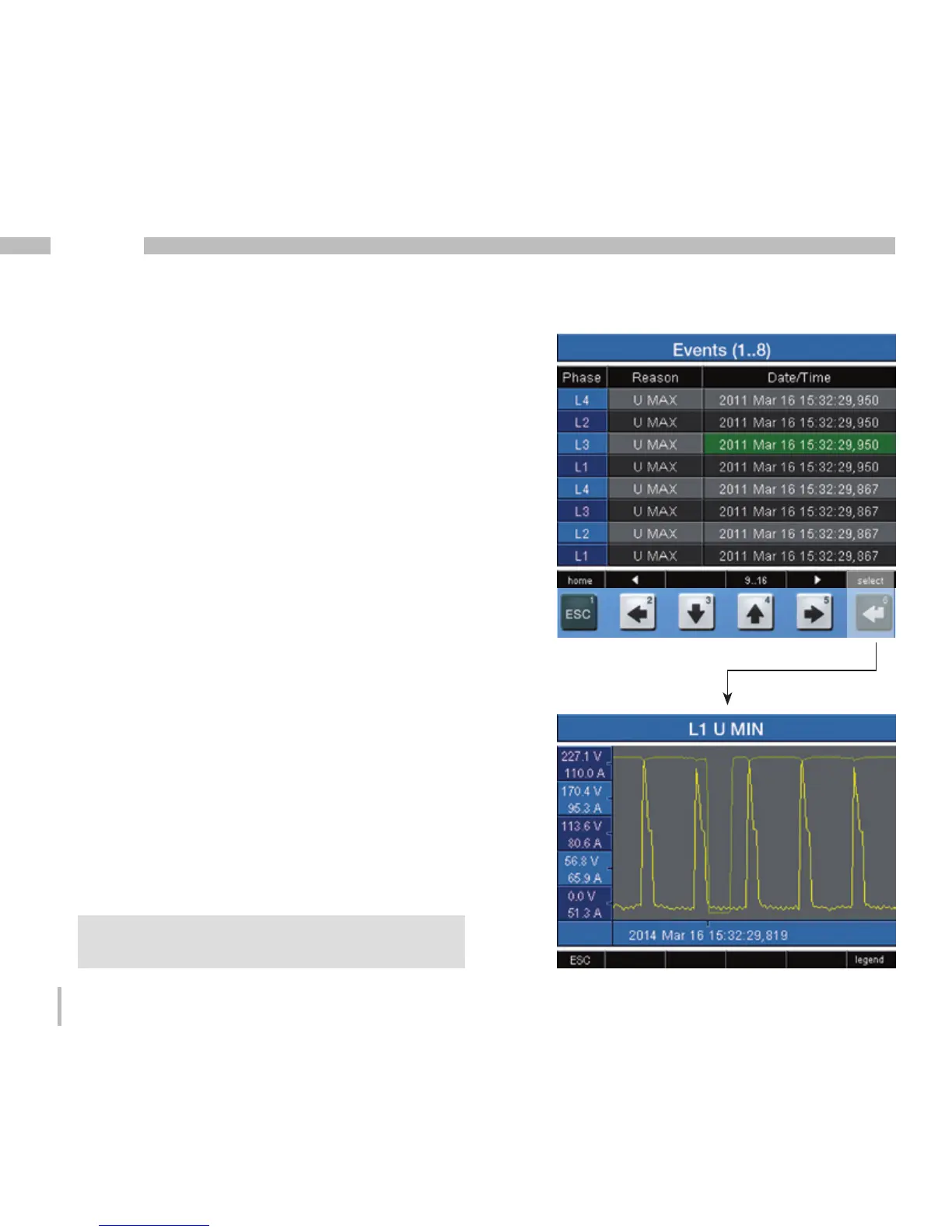

Detected events are listed in the event list.
• The event list consists of 2 pages.
• On page 1, the events 1 through 8 are listed
and on page 2, the events 9 through 16 are listed.
Displaying events
• Using the 2 and 5 keys, scroll to the "Event" main
value display.
• Select the desired page using the 4 key.
• Navigate to the event list using key 6 (select)
and select an event using the 3 or 4 keys.
• Using the 6 key (select), have an event displayed
in a graph.
• Show or hide the legend using the 6 key (select).
• You can exit the result graph display using the 1
key (ESC).
Events are threshold value violations of effective
current and voltage values.
