Transients list
The detected transients are listed in the transients list.
• The transients list consists of 2 pages.

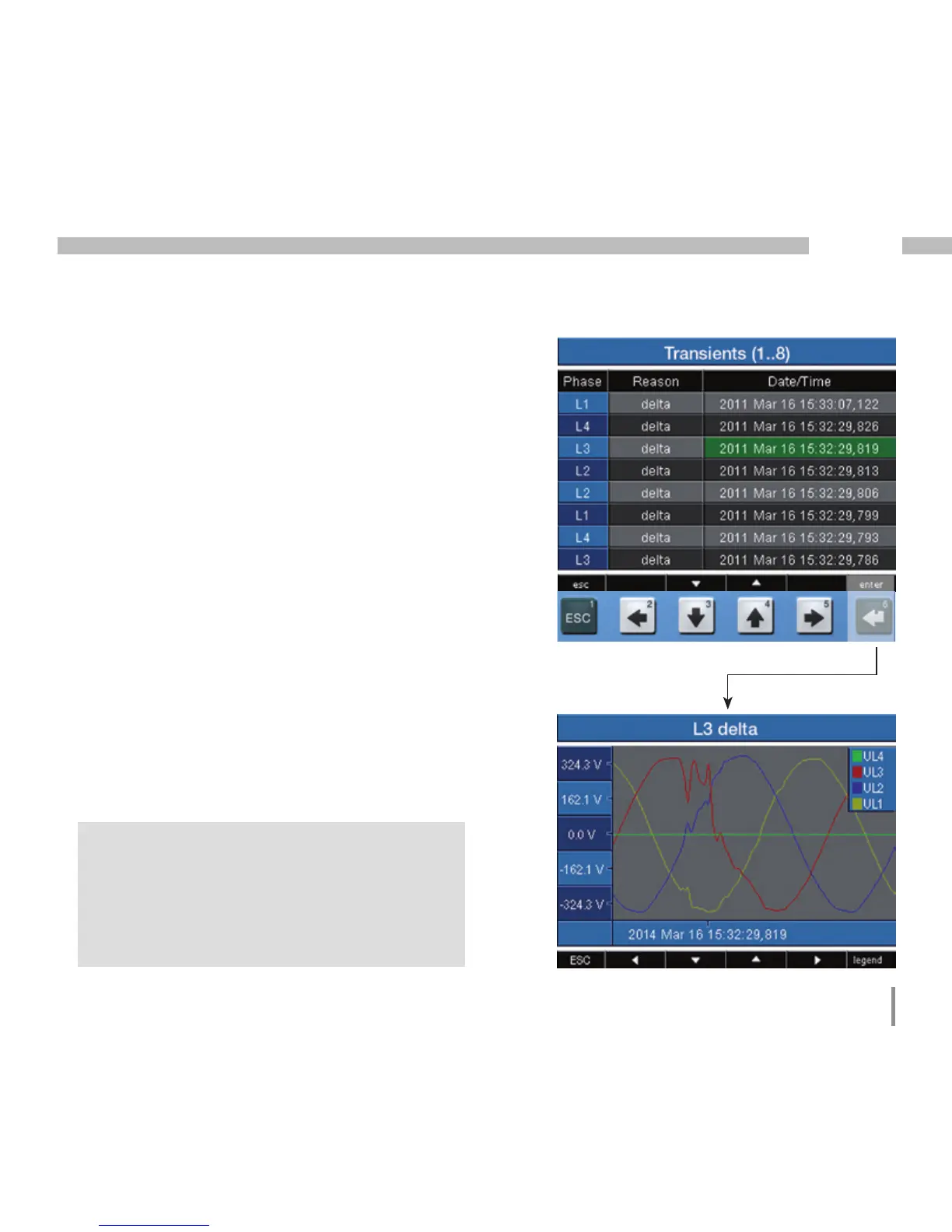

• On page 1, the transients 1 through 8 are listed and
on page 2, the transients 9 through 16 are listed.
Displaying transients
• Using the 2 and 5 keys, scroll to the "Transient" main
value display.
• Select the desired page using
the 4 key.
• Navigate to the transients list using key 6 (select)
and select a transient using the 3 or 4 keys.
• Using the 6 key (select), have a transient displayed in
a graph.
• Show or hide the legend using the 6 key (select).
• You can exit the transient graph display using
the 1 key (ESC).
Transient voltages are fast impulse transient
effects in electrical networks.
The time when transient voltages occur cannot
be predicted and they have a limited duration.
Transient voltages are caused by lightning strikes,
switching operations or by tripped fuses.
