96
UMG 509

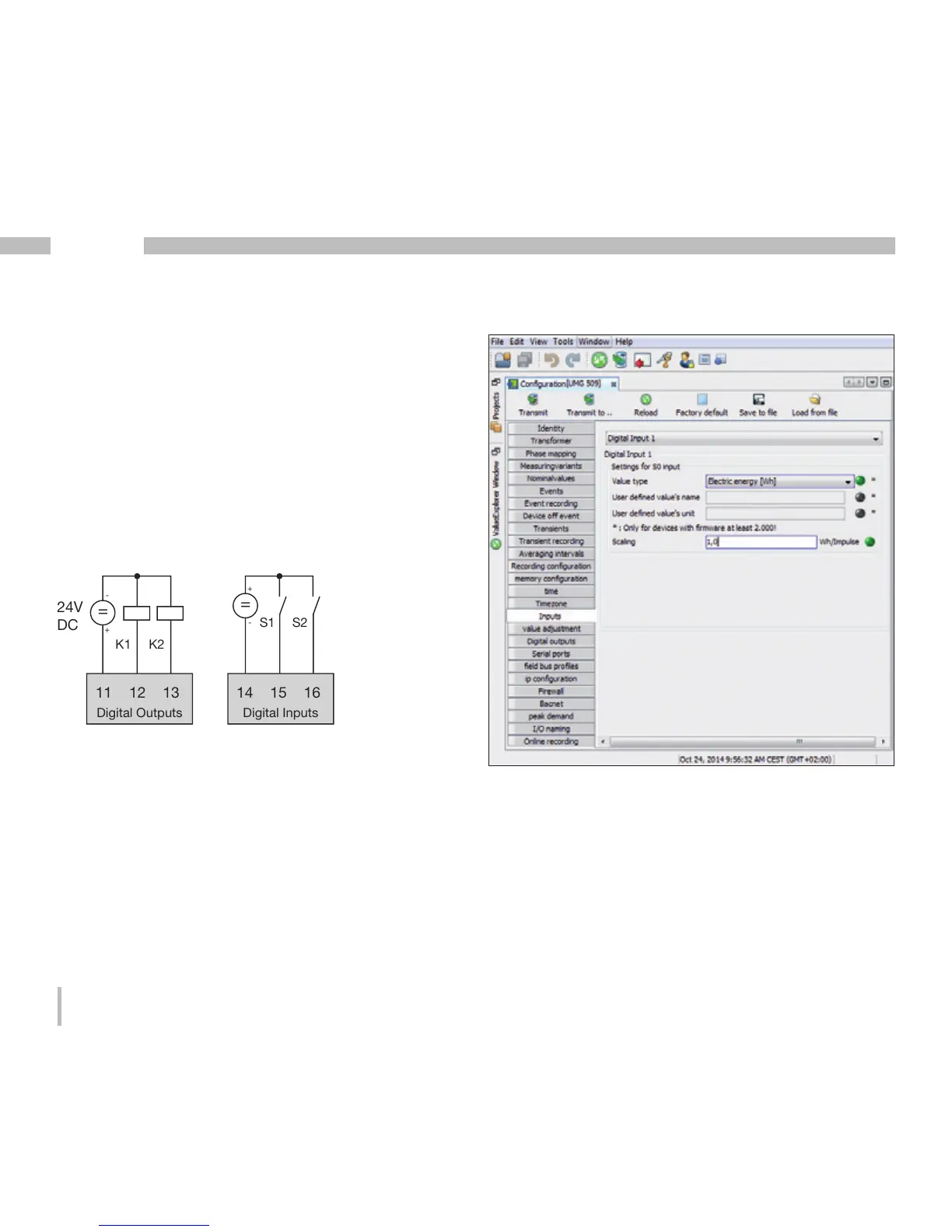

Digital in-/outputs
The UMG 509 has two digital outputs and two digital
inputs. The inputs and outputs can be configured using
the GridVis software (included in the scope of delivery).
The settings of the functions in the configuration menu
must be made using the GridVis software.
Fig.: GridVis software, configuration menu
11 12 13
24V
DC
K1 K2
=
-
+
=
+
-
S1 S2
Digital Outputs
14 15 16
Digital Inputs
Fig.: Digital inputs and outputs
